PG LifeLink products

The IDP Isolated Power Panel is the industry standard, multi-purpose Isolated Power Panel for many requirements. It is typically installed in hospital operating rooms or other wet procedure locations. The IDP Panel is typically designed to supply 120V power to the circuits within a single patient/procedure room.

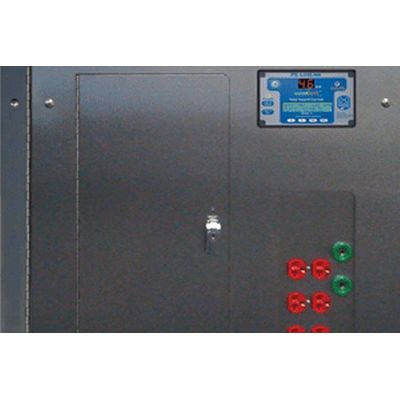

The Standard IDC Isolated Power Panel offers a solution for 120V equipment loads providing power connections in a confined space. The IDC is the ideal CCU isolation panel. The IDC can incorporate up to seven twist lock ground jacks and/or eight power receptacles on the front of the panel. This feature is useful in areas where there is a need for localized power outlets so typically this panel is often installed in hospital Critical Care Units, and Trauma/ED.

The Standard XTL Isolated Power Panel is designed to deliver power to remote Laser Outlet Modules placed in multiple procedure rooms from a single, centrally located panel. This panel is frequently installed in a hospital operating room or other procedure room designated for laser procedures.

The digital Mark V LIM (Line Isolation Monitor) was designed in accordance with NFPA 99 Healthcare Facility Code requirements to offer the best functionality and newest technology for our users. Created with the user in mind, the Mark V LIM offers an on-board status digital display and event logging and communication capability. The prominent LCD display instantly communicates important information such as line voltage, THC range and system status indication. The intuitive user interface menu provides convenient access to view alarm and event logs as well as configuration of user settings. Users can also scroll through past alarm and event logs using the convenient front mounted keys.

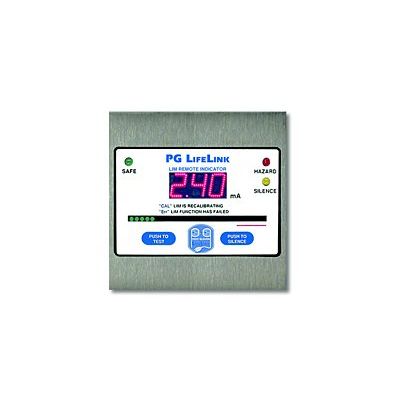

The PG LIFELINK Model DRA-1S Remote Annunciator contains all the same indication and functionality found on the front panel of the Mark IV LIM. Digital and analog hazard current displays audible and visual alarm annunciation, silence feature and remote operation of self-test feature are all included. Even system error codes are displayed, aiding in troubleshooting efforts. Some states require that all LIM remote units include a digital hazard current display. Check your local codes to see if this applies.

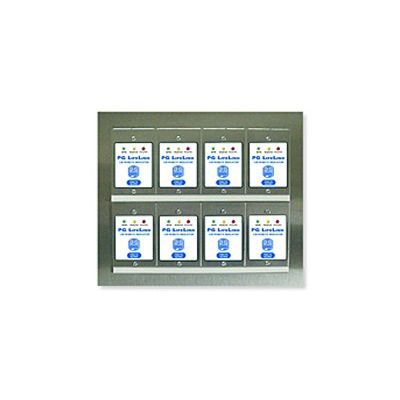

Many hospitals find in necessary to monitor multiple isolated power systems from a central location such as a nurses` station. The PG LIFELINK Model DMRA Master Remote Annunciator fills this need. NOTE: While the Master Remote Annunciator allows you to monitor up to 18 isolated power systems from one station, codes require that an indicator alarm also be placed in each monitored area. Custom Accessories
The accessories found in this section are considered standard items. For special requirements, the PG LIFELINK engineering staff is available to custom design a configuration to satisfy your specific or unusual needs.
