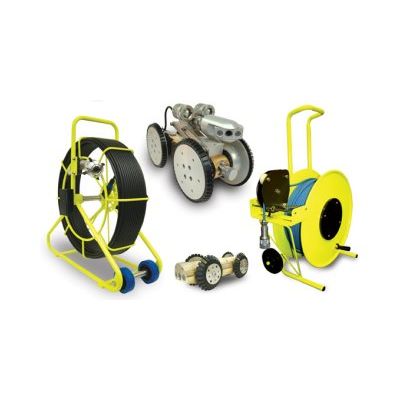

The all in one "look and see" system for pipe diameters 100-150mm SP50 Push Rod Camera - Auto Up-righting Colour Camera 42mm diameter stainless steel waterproof body (tested to 6 bar pressure) Heavy duty stainless steel coiled spring 1/4 inch inter-line type colour CCD image sensor Effective pixels 500 Horizontal x 582 Vertical Horizontal resolution more than 350 TV lines SP50 Coiler Power coated steel coiler frame in “Hi Visibility” site safety colour Electronic hub counter encoder 60 meters of durable GRP reinforced 10.5mm diameter semi rigid rod Compatible with all SP and most other reputable manufacturers control units

SP75 Mini Cam Crawler Sewer Inspection System - For use in 100-225mm diameter pipes Manufactured from CZ121 solid brass with stainless steel fittings Powerful 48 volt DC motor with variable forward and reverse speed control Planetary 100:1 ratio gearbox Integral Colour Camera PAL or NTSC 1/4" inter-line type colour CCD image sensor Effective pixels 500 horizontal x 582 vertical Electronic iris with auto white balance Lens 3.6mm F2.0 focal length 6" to infinity Integral Twin LED lights Luxeon enhanced white LEDs O-ring sealed behind toughened glass

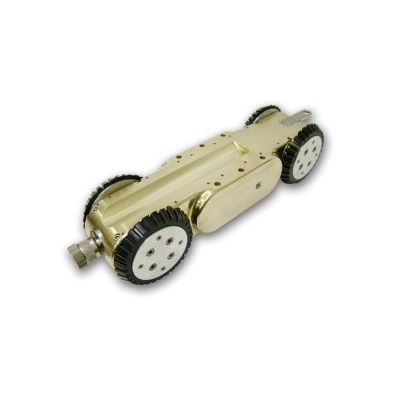

SP150 Midi Crawler - for use in 150-900mm diameter pipes Manufactured from CZ121 solid brass with stainless steel fittings Powerful 48 volt DC motor with variable forward and reverse speed control Fully waterproof with double quad axle seals (Pressure tested to 50 psi) Planetary 74:1 ratio gearbox Camera can be connected on front or mounted on top using Crawler extension plug assembly

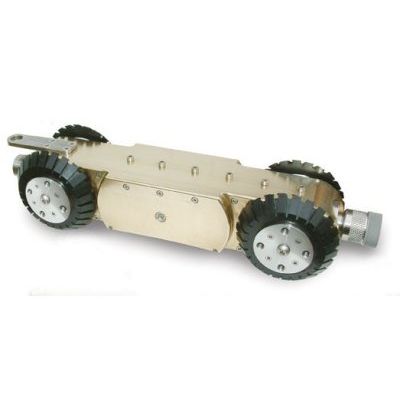

SP300 Mainline Crawler - For use in 225-2000mm diameter pipes Manufactured from CZ121 solid brass with stainless steel fittings Powerful 80 volt DC motor with variable forward and reverse speed control Planetary 64:1 ratio gearbox with continuous torque (Up to 600 Ne) Fully waterproof with double quad axle seals (pressure tested to 50 psi) Camera can be connected on front or mounted on top using Crawler extension plug assembly

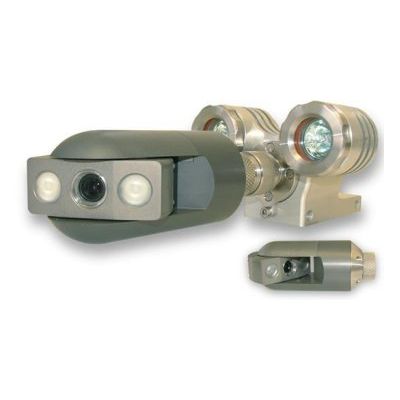

The SP100 Pan and Rotate Colour Sewer Inspection Camera For use in 150mm and above diameter pipes and can be interfaced with other reputable manufactures of inspection systems.

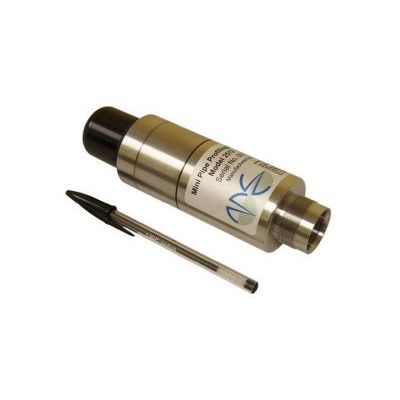

SP2512 Pipe Profiling Sonar Real Time continuous scanning over a full 360°in 1 second Windows user-friendly software with USB hardware minimises training time Direct capture to Hard Disk for high resolution image save and restore Dual tracking cursor for accurate on-screen measurements 360º Internal Pitch and Roll sensors Quadrature and compatible cable counter interfaces built in 500m cable drive as standard, fibre-optic system optional Automatic profile detection and output in ASCII format for import into third party 3D modelling software

SP15CD Mini and Cable Drum Easy transportable wheeled frame Robust powder coated steel frame in Hi Viz site safety colour Integral 24 way slip ring with stainless steel bearing Electronic meterage counter SP10MC Mini Cameral Control Cable 150 meters of 9.5mm diameter cable Waterproof 19 way military type connector 16 conductors plus 75ohm coax Kevlar high performance fibre braid Durable polyurethane outer jacket Maximum break strain 480Kg Minimum recommended bend redius 125mm Maximum operatring temperature +60ºC

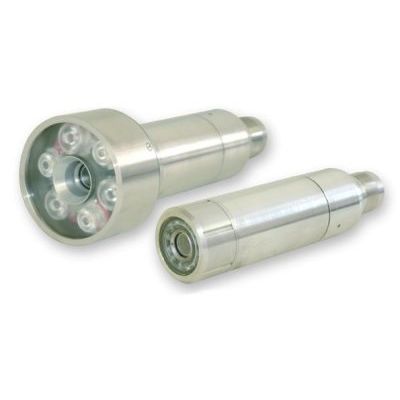

SP500 Forward View Colour Camera For use in 100mm and above diameter pipes with optional LED light heads

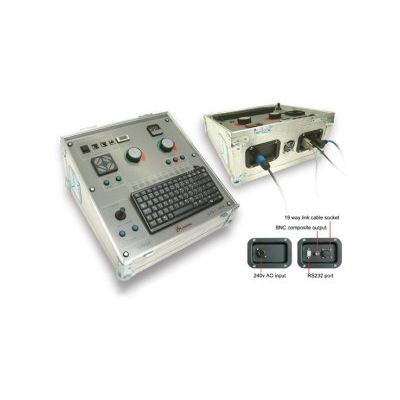

SP252 Camera Crawler Desk Top Control Console for use with SP150/SP75 Crawler range Control Functionality Joystick for Pan and Rotate funtions Push button for remote focus Variable DC light control Reset trip for lighting overload Variable forward and reverse Crawler speed Crawler direction change delay protection Digital lamp voltage display Crawler current display metre BNC video output connector RS232 computer communication port for Wincan connectivity Text generator (with optional upgrade to IP08 Wincan Software compatible OSD)

The Panasonic CF30 Toughbook with a secure docking station offers a rugged PC platform that includes: Full Touch Screen 13.3" XGA Display 3 Year Manufacturers Collect & Return Warranty Genuine Windows XP Professional Preloaded with full WinCan Mobile Reporting Software Storage for all your high quality CCTV Surveys through Mpeg encoding onto 160GB hardrive Built in 3G Mobile Broadband allowing reports and data to be transferred from site directly to the client "Increased Productivity with Faster Data Delivery to your Client"
