Philmac products

The Philmac Rural range of Australian made compression fittings provides the perfect connection for Australian Rural B Class poly pipe. Installation is easy with a simple to use insert assembly, and the fitting allows for straight forward disconnection and reconnection.

Philmac’s range of Australian made metric compression fittings are the solution for the perfect connection every time thanks to Philmac’s unique Slide and Tighten™ technology. Each fitting is pre-assembled and ready to use so there’s no need to disassemble the fittings or prepare the pipe prior to use. Simply cut the PE pipe square and slide it into the fitting until you feel the first point of resistance and then tighten the nut to the flange on the body of the fitting. With Philmac’s metric compression fittings, just slide and tighten and the job’s done!

Although designed for mining use, the range works equally well in other traditional PE pipeline applications such as irrigation and industrial. The design ensures that installation is as easy as possible and that it works every time.

Philmac offers a comprehensive range of pressure hose connections with their camlock range. Philmac’s range of camlock fittngs are available in aluminium, ny glass and polypropylene. Sized from ½” to 4”, they provide excellent chemical resistance and strength for most applications.

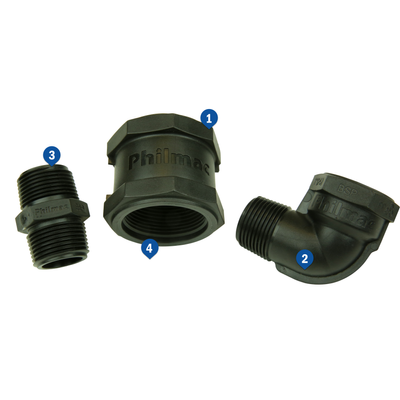

Philmac’s robust threaded fittings provide precision BSP tapered threads that have been engineered to maximise sealing performance. The versatile range is made from high performance, UV resistant polypropylene that does not absorb moisture. Installation is quick, simple and reliable every time. The material is also potable water (AS/NZ 4020) approved. (Note: Products marked “Ancillary” and fittings above 2″ are not potable water approved.). Philmac’s threaded fittings provide maximum versatility, delivering a high performance connection across a wide range of pressure ratings and chemical combinations. The hexagonal body makes them extremely simple to install. Importantly, Philmac threaded fittings are suitable for working pressures up to PN16 for sizes up to 2”, PN12 for 2-1/2” and PN10 for 3” and 4” sized fittings.

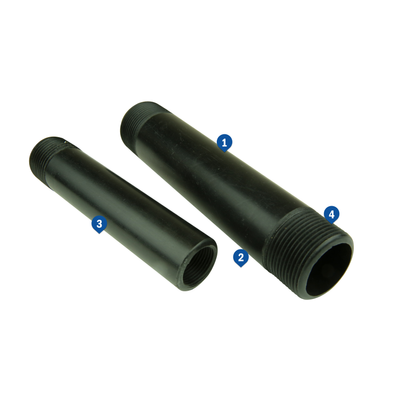

Philmac offer an extensive range of male thread/female thread and male thread/male thread pipe risers that are manufactured from high performance, UV resistant material that prevents moisture absorption and ensures consistent dimensions over the products lifetime. The range includes ½” to 2” sized pipe risers with M/M threads and ¾” and ½” and 1” and ¾” with M/F threads. M/F pipe risers are available up to 600mm long and M/M up to 1800mm long which means there is a pipe riser for most applications.

The Philmac blue handled ball valve has been servicing the Australian market for over 30 years. The distinctive blue easy grip handle is recognized in the market as the industry standard providing users with the confidence of a strong, reliable and robust product. Proudly made in Australia the Philmac blue handled ball valve is based on a simple on/off action and is quick and easy to install allowing the user full control of water distribution.tive on/off action through 90°. It is ergonomically designed to enable easy gripping. The handle is not only easy to operate but has a positive on/off action through 90°. It is ergonomically designed to enable easy gripping

Philmac ball valves in a variety of configurations to meet the requirements of civil customers. Available in both Main Stop and Curb Stop configurations with a number of handle and connection options.

Philmac foot valves have been successfully servicing the Australian market for more than 20 years with a reputation for quality and reliability. Philmac’s Non-Return Valve is easily converted into a foot valve with the addition of a filter, the Philmac Foot Valve is the perfect choice for preventing back flow so pipelines do not drain and cause damage to high value equipment such as pumps.

Philmac Non-Return Valves have been successfully servicing the Australian market for more than 20 years with a reputation for quality and reliability. The Philmac Non-Return Valve is the perfect choice for preventing back flow so pipelines do not drain and cause damage to high value equipment such as pumps.
