Phoenix Geophysics Limited products

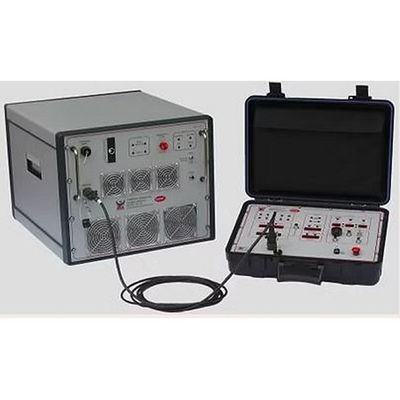

Phoenix’s most powerful controlled source, hundreds of TXU-30 systems have been used around the world for mining and hydrocarbon exploration. At less than 50kg, the TXU-30 remains portable and compact while transmitting tremendous power.

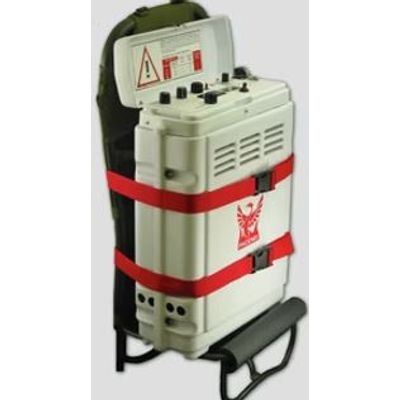

The T-3 is a lightweight, versatile multipurpose signal source for use in a variety of geophysical techniques. Weighing only 12 kg, it is easily transportable on a backpack over virtually any terrain. The T-3 can drive either inductive loads (loops) used in TDEM or FDEM techniques, or grounded dipoles used in IP, Resistivity, and CSAMT techniques. Powered by one or more external 12 V batteries or by Phoenix’s selectable-voltage BP-24/72 battery pack, the T2 allows a range of inputs. Alternatively, the power source can be a standard geophysical motor generator, or any of a number of commercially available 50 Hz or 60 Hz motor generators. This flexibility means that the power source, along with parts and service, can be obtained almost anywhere in the world.

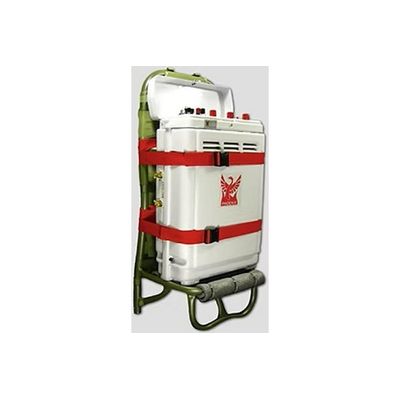

Rugged, reliable, and field-proven the T-4 is a lightweight, highly effective signal source for use with the TDEM geophysical technique. Weighing only 8 kg, it is easily transportable by backpack over virtually any terrain and is battery-powered for maximum flexibility.

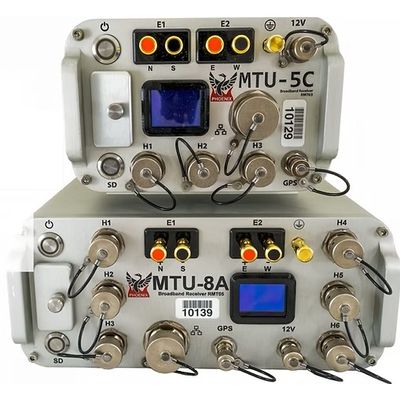

Phoenix Geophysics designs advanced ultra-wideband magnetotelluric (MT) receiver systems, including the MTU-5C, MTU-8A, and RXU-8A models. These receivers are engineered to operate in harsh field conditions, providing reliable geophysical data collection. They integrate seamlessly with Phoenix sensors and the EMPower software, offering efficient and intuitive setups. With nearly five decades of experience, Phoenix has optimized these devices for high performance and simplicity. The built-in bright screen on Phoenix receivers enables real-time monitoring without needing additional devices. These systems feature automatic diagnostics, in-field calibration, and comprehensive metadata logging. Configuring the receivers is streamlined through SD card setup and EMPower`s Config Creator. They support up to eight independent channels with flexible settings, accommodating both recent and older sensor models.

Phoenix Geophysics presents a suite of geophysical sensors, including the MTC-155 and MTC-185, designed for integration with Phoenix MTU-5C receivers and EMPower software. These sensors, which include previous models like the MTC-50H, MTC-80H, and AMTC-30, are engineered for robustness and field reliability, featuring no switches or adaptors, built-in calibration, and power sourced directly from the receiver. Phoenix`s 100-series sensors excel in broadband data acquisition, covering the entire magnetotelluric spectrum from audi-frequency AMT to MT, improving deadband response and enhancing low-frequency and near-surface data resolution. Designed with IP68-rated sealing and carbon-fiber bodies, these sensors promise longevity. They provide automatic in-field calibration and are compatible with various Phoenix systems, streamlining operations in challenging environments and extending capabilities in mining geophysics.
