PIEZUS LLC products

Pressure transmitters

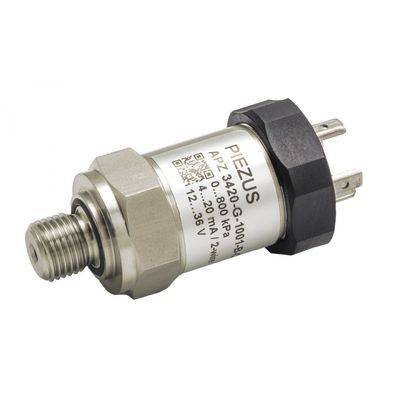

PIEZUS - Model APZ 3420 - Standard industrial pressure transmitter

APZ 3420 is our flagship general purpose industrial pressure transmitter. High quality silicon piezoresistive sensor with a stainless steel diaphragm, versatile design and wide spectrum of variations make APZ 3420 a perfect fit for virtually any industrial application.

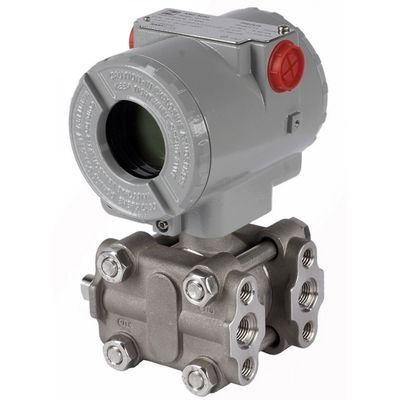

PIEZUS - Model AMZ 5050 - Smart differential pressure transmitter with HART communication

AMZ 5050 differential industry standard pressure transmitters are based on a proven capacitive pressure sensor technology and feature high performance, resistance to overpressure and stability in dynamic pressure and temperature environments. Certain parameters, including ZERO and SPAN are configurable by use of a special magnetic tool in the hazardous areas. Local liquid crystal display features backlight and is mountable at 0, 90, 180 and 270 degrees providing flexibility in transmitter installation angle.

PIEZUS - Model AMZ 5450 - Smart pressure transmitter with HART communication

AMZ 5450 industry standard pressure transmitters are based on a proven capacitive pressure sensor technology(*) and feature high performance, resistance to overpressure and stability in dynamic pressure and temperature environments. Certain parameters, including ZERO and SPAN are configurable by use of a special magnetic tool in the hazardous areas. Local liquid crystal display features backlight and is mountable at 0, 90, 180 and 270 degrees providing flexibility in transmitter installation angle. *ranges over 70 bar feature piezoresistive sensor technology

PIEZUS - Model APZ 2030 - Differential pressure transmitter for ventilation and air conditioning

APZ 2030 is a HVAC/R pressure transmitter and switch. Large informative display provides measured pressure info in digital and bargraph form as well as units selected, and switch outputs status. With highly configurable independent two single pole double throw relay switch outputs, this small and cost efficient device is capable of local fans and filters monitoring as well as remote signal transmission via 4...20 mA or 0...10V analog outputs.

PIEZUS - Model APZ 3421 - Precision pressure transmitter

APZ 3421 is a high precision pressure transmitter. Based on a silicon piezoresistive sensor and electronic module with an active temperature compensation technology it features exceptional accuracy and response time. APZ 3421 has a wide variety of optional features such as display and digital interfaces to suit almost any of the high precision measurement applications.

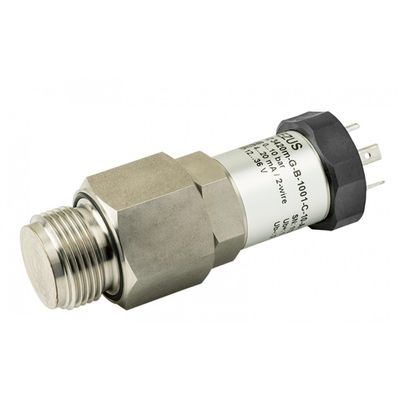

PIEZUS - Model APZ 3420 m - Pressure transmitter with flush diaphragm for viscous media

APZ 3420 m is a flush diaphragm version of our standard pressure transmitter. Due to it’s optimized design, it does not have dead zones that can get blocked by the viscous and pasty media. Optionally, APZ 3420 m can be equipped with a heat sink element for high temperature media applications.

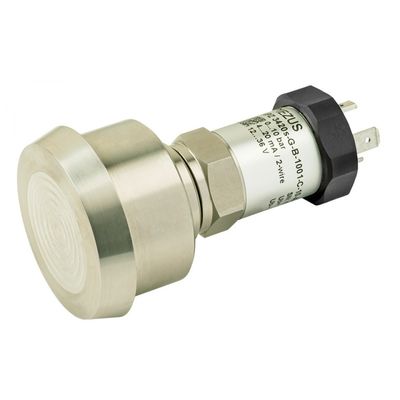

PIEZUS - Model APZ 3420 s - Sanitary pressure transmitter with flush diaphragm

APZ 3420 s is a sanitary version of our standard pressure transmitter with the flush diaphragm . All-welded design and smooth surfaces ensure absence of zones for potential contaminants collection. Process connection options, taper socket with grooved union nut as per DIN 11851, clamping socket as per DIN 32676 provide for quick disconnection for diaphragm cleaning. Optionally, APZ 3420 s can be equipped with a heat sink element for high temperature media applications.

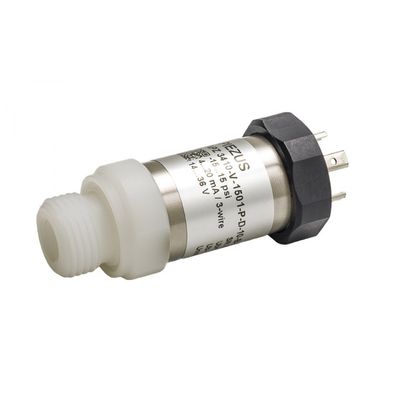

PIEZUS - Model APZ 3410 - Industrial pressure transmitter for aggressive/viscous/abrasive media

APZ 3410 is based on a ceramic oil free sensor to withstand aggressive(*) media. Optionally, plastic process connection is available for certain alkalis and acids. Flush ceramic diaphragm and the open port options are available for the viscous and/or abrasive media. Oil free dry pressure cell makes APZ 3410 suitable for environments with high oxygen levels and allows to measure gases with high O2 concentrations. (*) please consult the manufacturer for particular media compatibility

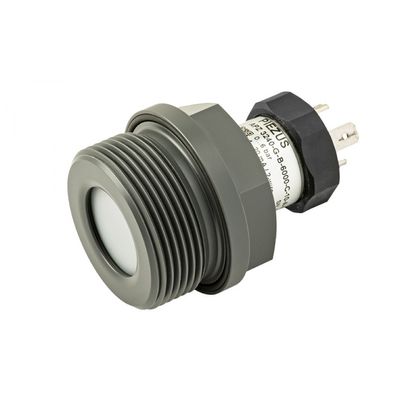

PIEZUS - Model APZ 3240 - Precision pressure transmitter for aggressive/viscous/abrasive media

APZ 3240 is based on a high precision capacitive ceramic oil free sensor with ranges starting at 40 mbar for measuring liquid levels as low as 40 cm. Flush ceramic diaphragm makes it a perfect fit for the viscous, aggressive(*) and abrasive media. Optionally, plastic pressure port is available for certain alkalis and acids. Oil free dry pressure cell makes APZ 3240 suitable for environments with high oxygen levels and allows to measure gases with high O2 concentrations. (*) please consult the manufacturer for particular media compatibility

PIEZUS - Model APZ 3020 - Industrial differential pressure transmitter

APZ 3020 industrial differential pressure transmitter is based on a silicone piezoresistive pressure sensor. True differential wet-wet technology allows to obtain high precision measurements of the differential pressure even if the static pressure exceeds it by the two orders of magnitude. Compact design of the APZ 3020 and it’s radial and axial pressure port connection options make it a great candidate for use in constrained spaces.
