Pingxiang City NanXiang Chemical Packing Co., Ltd
25 products found
Pingxiang City NanXiang Chemical Packing Co., Ltd products
NanXiang - Model NX-TPRQ - Plastic Q-pack Random Tower Packing for Wasted Water Treatment
Plastic Q-pack suitable for use in a lot of different potable water treatment processes, such as: Biological treatment Physical filtration Pre-treatment for desalination Drinking water treatment Q-pack's large pore volumes and surface areas make it an ideal media for biological treatment of drinking water. Bio film processes are excellent for treating raw water containing ammonia, manganese, iron etc. In conventional filtration processes Q-pack can be used in different ways. In dual media filters Q-pack can be used in combination with sand. Tests have shown that Q-pack operates as well as or better than traditional filter media in these types of filters. Q-pack can not only be used in traditional drinking water treatment, but also in treatment of saline water. In desalination plants one of the most important parts is the pre-treatment process. Q-pack is an excellent filter media for use in pre-treatment filters in desalination plants.

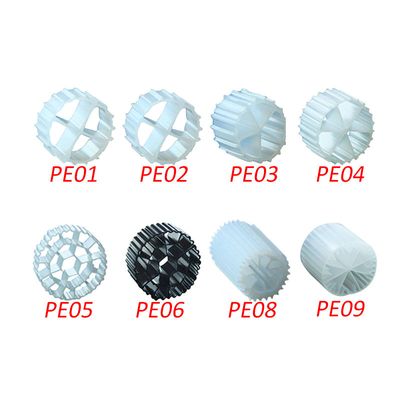

NanXiang - Biological Wastewater Treatment K1 K2 K3 K5 MBBR Bio Filter Media
MBBR Bio filter media, used in Integrated Fixed-lm Activated Sludge (IFAS) and moving bed biofilm reaction (MBBR)system. The wastewater goes through suspending media of MBBR reactor, forming biological membrane on the surface of mediagradually. With the action of microbial on the biological membrane, wastewater is purified. MBBR media can move freely in the reactor with the mixing of the water. For the aerobic reactor, the aeration will make the media move; for the anaerobic reactor, mechanic mixing will make the media move. Our MBBR media is new-developed media, has better treatment effect compared with traditional media.
NanXiang - Plastic Tri-Pac Tower Random Packing
Description Plastic Tri-Pac tower random packing, which is similar as polyhedral hollow ball packing, provides maximum surface contact between the gas and the scrubbing liquid by facilitating continuous formation of droplets throughout the packed bed. This result in high scrubbing efficiency, and minimizes total packing depth required. It can also prevent clogging, because there is no flat surface to harbor particulates. Tri-Pac tower packing eliminates puddling too. Because its free of corners and valleys, and minimizes wasteful liquid flow down the wall surface. Tri-pac further prevents dry spots and compression interlock, two phenomena common to traditional packing media. Both conditions cause liquid and air channeling and decrease media efficiency.
NanXiang - Model NX-BBR - Bio-Pac SF30 for Trickling Filters, Submerged Beds and Anaerobic Reactors
Bio-Pac SF#30 random dump media is successfully operating in over 100 trickling filters. With over 300 mixing and redistribution points for both air and water per cubic foot of media, Bio-Pac is capable of redistributing wastewater every 2” of media depth. This feature makes Bio-Pac ideal for shallow trickling filters. Bio-Pac SF#30 has also been used extensively in upflow anaerobic and aerobic submerged bed reactors. Since the media floats, use of an underdrain support is eliminated. Furthermore, Bio-Pac’s unique shape serves as a foam breaker when installed in anaerobic reactors.

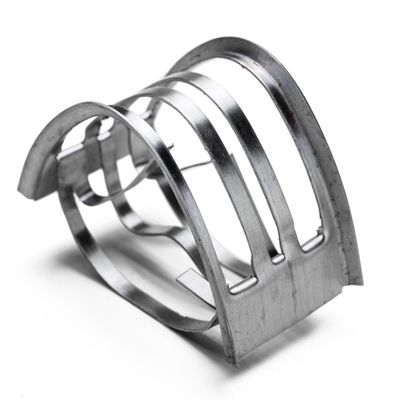

Nanxiang - Model IMTP - Nanxiang Intalox Saddle Ring Imtp packing SS304 SS316L Metal Stainless Steel random tower packing
IMTP between the shape of its saddle-shaped ring and between, and the advantages of both. Intalox metal structure in the saddle-shaped packing ring based on the increase of the annular tendon, to avoid overlap and ensure a certain degree of strength and rigidity out of a number of small claws, an increase of gas-liquid agitation, enhanced mass transfer, thus produce a unique performance. Imtp for the new equipment, packed tower, plate tower height lower than 35%, 30% decrease in diameter, or increase the efficiency of 10-30%, 20-60% reduction in pressure loss. Domestic wet instead of dry distillation distillation pilot study showed that 20 percent can reduce the investment. In short, the use of a new type of ring can be increased Intalox yield or low power costs and improve separation efficiency. Materials: such as carbon steel, stainless steel 304, 304L, 410, 316, 316L,etc . Size: 15/25/40/50/70mm Mobile/WhatsApp/Wechat :+86-15079902820 Email: lisa@nxpacking.cn Contact: Lisa
Nanxiang - Model acid resistant bricks - Nanxiang acid resistant bricks Acid proof Brick manufactiry Acid accumulator tesistant brick
Acid Resistant Ceramic Bricks are widely use as inner lining for drying , absorption, tower and reactor in chemical plant, chemical fertilizer plant and sulfuric acid plant or used as inner lining for anticorrosive pools and channels and covered the anti acid ground etc. Size: 230x113x30mm,230x113x65mm,230x113x20mm,230x113x45mm. Accept customized services. .Features Good acid resistant. High strength and Wear resistance. Low water absorption and low apparent porosity. Good eroding proofing and impact resistance. High temperature resistant. Good thermal shock resistance. High mechanical strength. Technical Specification： Size: 230x113x30mm,230x113x65mm,230x113x20mm,230x113x45mm or custom Contact: Lisa Mob/ WhatsApp/Wechat: +86-15079902820 Email: lisa@nxpacking.cn
NanXiang - Model NX-PTP - Nanxiang PP PE PVDF Plastic Tri-Pack for Liquid Extraction 25mm 50mm 89mm Plastic Tri Pack
Plastic Tri-Pac tower random packing, which is similar as polyhedral hollow ball packing, provides maximum surface contact between the gas and the scrubbing liquid by facilitating continuous formation of droplets throughout the packed bed. This result in high scrubbing efficiency, and minimizes total packing depth required. It can also prevent clogging, because there is no flat surface to harbor particulates. Tri-Pac tower packing eliminates puddling too. Because its free of corners and valleys, and minimizes wasteful liquid flow down the wall surface. Tri-pac further prevents dry spots and compression interlock, two phenomena common to traditional packing media. Both conditions cause liquid and air channeling and decrease media efficiency. Material: PE PP RPP PVC CPVC PVDF Size: 32/50/76/95/100mm WhatsApp/Wechat : +86 -15079902820 Email: lisa@nxpacking.cn Contact: Lisa
Nanxiang - Model NX-CSSR - Nanxiang Heat Resistance Ceramic Supper Saddle Ring for Random Packing Ceramic Supper Intalox Saddles Ring for Distillation Column
Ceramic super intalox saddle has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric-acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. The packing can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc. Al2O3: 17-23% Nominal Size: 1"/1.5"/2"/3" WhatsApp/Wechat : +86 -15079902820 Email: lisa@nxpacking.cn Contact: Lisa

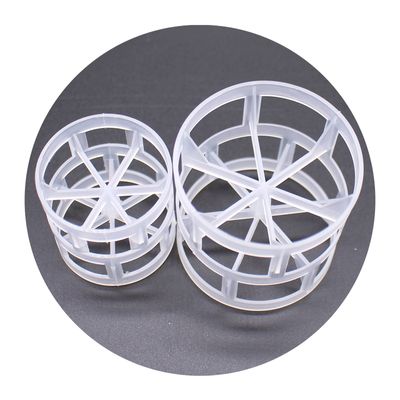

NanXiang - Model NX-PPR - Nanxiang Mass Transfer Plastic Pall Ring Tower Packing PP Pall Ring 16mm 25mm 38mm 50mm 76mm 100mm Pall Ring
Plastic Pall Ring packing is a high hole diameter equal to the packing ring, each window there are five tongue leaves, each leaf tongue ring in turn point to heart, upper and lower levels of the location of the opposite window at different times and in general Central area of wall openings about the total area of about 30%. With porosity, and pressure drop and low height of mass transfer unit, the pan-point high, vapor-liquid contact with the full, the proportion of small, high mass transfer efficiency. This structure improves the vapor-liquid distribution, make full use of the inner surface of the ring, so that the tower fill the gas and liquid form from the free passage. Material: PP/RPP/PVC/CPVC/PVDF/PTFE, etc Size: 16/25/38/50/76/100 WhatsApp/Wechat : +86 -15079902820 Email: lisa@nxpacking.cn Contact: Lisa
