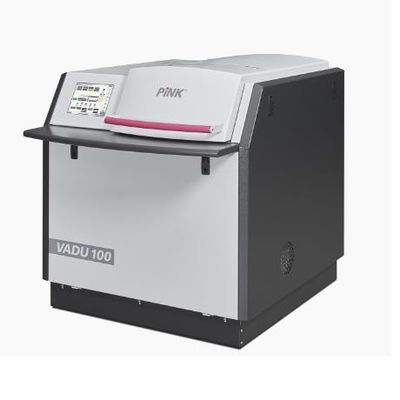

The compact soldering system VADU 100 is equipped with separate zones for soldering and cooling and can be operated with paste as well as preforms. Due to its small dimensions and the easy operation, the batch system is very suitable for production of small series and in laboratories for research applications.

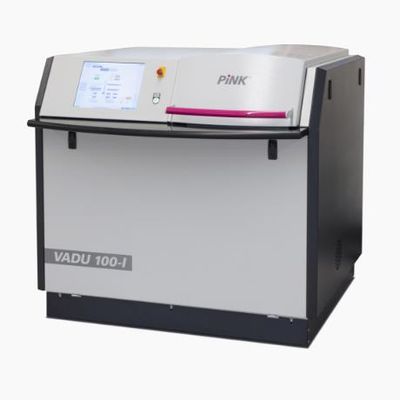

The compact soldering system VADU 100-I operates primarily with preforms and generates void-free solder connections. It is equipped with separate process zones for soldering and cooling. The soldering area is divided in two controllable inductive heating zones. Due to its small dimensions and the easy operation, the batch system is very suitable for production of small series and in laboratories for research applications.

The new sinter equipment SIN 20 is developed to support R&D and institutes in setup, evaluation and optimization of sintering processes. The SIN 20 is using PINK’s well known, approved and patented equilibrates-vacuumtechnology, based on the technical principle of pressure equalization. This allows sintering in perfect N2 atmosphere as well as in reductive atmosphere like formic acid. Cu substrates as well as substrates with an Au or Ag finish can be sintered.

The patented sintering system SIN 200+ modular is a highly flexible system, which is suitable for various production demands from laboratory up to series production, as the system is modular designed and can be operated as a batch system or an automated inline system with different preheating and/or cooling modules. The substrate temperature, the atmospheric pressure and gas composition during the entire heating, sintering and cooling procedure within the vacuum chamber/s is exactly controllable at any time. In combination with the dynamic adaptability of the pressing force the system provides a wide array of novel process and production possibilities.

The manufacture of sensitive and, under certain circumstances, highly potent, hazardous products calls for plants and systems capable of drying such products gently under extremely clean and contamination-free conditions. The VSD vacuum drying ovens create precisely these conditions. The VSD is ideal for GMP/FDA-compliant processes. These vacuum drying ovens are an indispensable feature of pilot plants, kilo labs and production installations.

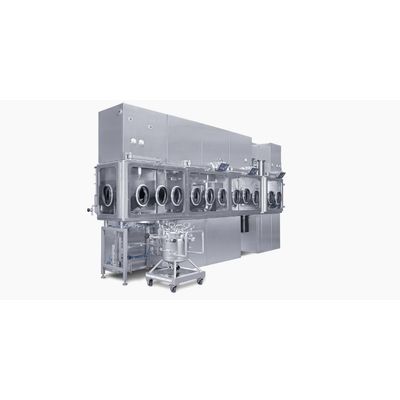

The drying of highly active and toxic substances in test centres, laboratories or production calls for protective measures for both the operator and the product. PINK has therefore combined its VSD drying oven with an isolator to ensure the safe handling of HAPIs. The VSDI is ideal for drying these substances.

As another example of an intelligent combination, PINK combines VSD vacuum drying ovens, isolators and pressure nutsches in integrated systems. This combination enables the prefiltration of liquid products before the drying process, thus optimizing the work flow. For applications, in which the filling and filtration of the product is to take place outside the isolator, PINK has designed a mobile pressure nutsch for contamination-free docking.

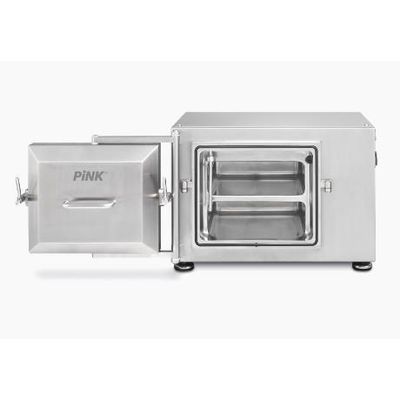

PINK’s VSD-e is a compact, high-grade vacuum drying oven designed to provide users in industry, science and research with a high performance, safe and clean system for the laboratory. Thus, PINK is making the advantages of the VSD vacuum drying oven with its GMP/FDA-compliant design available for smaller laboratory applications as well. The VSD-e has electric contact heating with an integrated control. Its operation only requires a plug socket and a vacuum device.
