Pinnacle-Flo, Inc. products

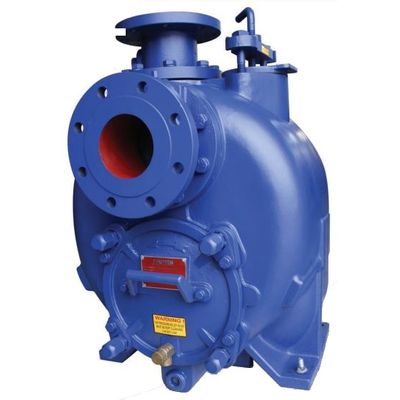

The self-priming centrifugal PT Series is the standard for industrial and sewage applications. The heavy duty construction and easy-to-service design have been well accepted in the industry. The combination of different sized pumps, impeller trims and speed variations ensure that the correct capacity pump will be matched to the exact requirements of your system, whether it`s a small sub-division or a large waste collection system. These pumps feature a large volute design that allows them to reprime automatically in a completely open system without the need for suction or discharge check valves - and they can do it with the pump casing only partially filled with liquid and a completely dry suction line.

Designed for economical, trouble-free operation, the superior solids-handling capabilities of PST Series pumps make them ideally suited for a variety of applications including solids-laden liquids and slurries.  The large volute design allows automatic repriming in a completely open system without the need for suction or discharge check valves.

Pinnacle 2500 series centrifugal pump has been the most popular centrifugal pump in the drilling industry because of its proven reliability, durability, and economical structure. The 2500 series has an open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The 2500 seriesis available in Hi-Chrome, hardened iron, and stainless steel fluid ends. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).

The 3500 series is well suited for pumping high volumes of heavy slurries that are abrasive, corrosive, or just plain tough to pump. The 3500 series can deliver flow rates up to 7500 GPM and head pressure up to 540 feet. The compact overall dimensions of the 3500 series make it an excellent choice for high volume mobile and stationary applications where a small footprint is critical. The 3500 series is designed for continuous operation with minimal maitenance.  The low stuffing box pressure and extra-heavy shaft design are engineered to provide maximum seal life. The unique casing flow divider cuts the raidial load in half, doubling bearing life. The heavy-duty bearings are permanently lubricated to minimize maintenance.

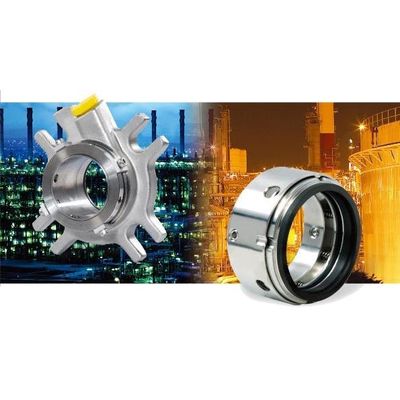

23 series products abide by ANSI & EN12756 standard, while “Q” means back cooling, “F” means pumping ring, no .requirements on rotation, suitable for mass production

Mixer mainly applies 2 type of materials ,stainless steel and enamel According to different operation conditions. Our mechanical seal designs on single face double face with bearing and without bearing special design can reduce such restrictions on India meter pressure, speed, temperature axial displacement.

THE PINNACLE - FLO 8896 ANSI Process Pump is designed primarily for the chemical & process industry, which have a variety of corrosive process conditions.

Pinnacle-FLo Blue Dog series air-operated double diaphragm (AODD) pump is ideal for a wide range of applications, including corrosive and abrasive fluid transfer. Typical applications include drum fluid transfer, unloading fluids, chemical evacuation, ceramic glaze supply, dewatering and sump evacuation and repackaging of fluids from original container to smaller receptacles.

Pinnacle-Flo`s Buffalo Series Internal Gear Pump Series is designed around the flexibility and ease of maintenance for industrial-duty applications.
