Piovan S.p.A products

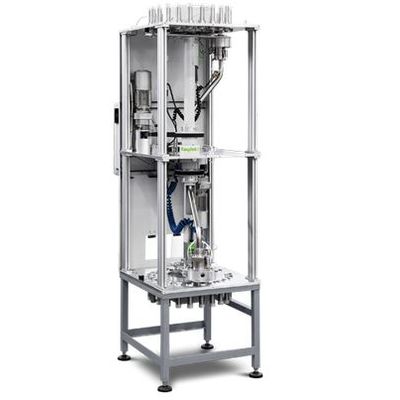

The new Easylink+ range has a state-of-the-art cleaning system integrated in the bottom inlet to guarantee perfect cleaning of the main arms and prevent contamination. The new main arms are manufactured with a special hardening treatment for even greater wear resistance.

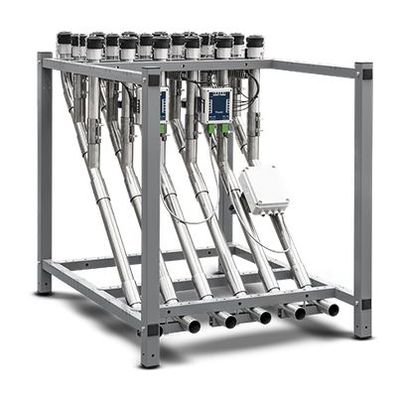

Handlink+ is the manual coupling station equipped with innovative twist couplers based on a bayonet connection. What makes these couplers different is the absence of a gasket that could get in contact with plastic granules with the consequence of possible contamination and prevents any risk of decreasing the feed system performance due to the loss of vacuum.

PureFlo eliminates the need for ordinary maintenance of the vacuum receiver (filter cleaning) and improves the conveying capacity of the overall system. The plastic granule moves through the conveying pipes carried by an airflow generated at negative pressure by a vacuum unit.

GenesysNext is the high performance, fully automatic, single-hopper drying system that optimises the production process of PET preforms. It has been specifically designed to reach advanced optimisation of energy consumption thanks to a new configuration of the regeneration circuit and a new heating power recovery system.

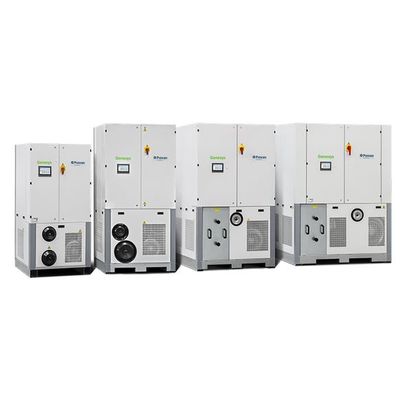

Genesys is a single-hopper, individual or central, fully automatic drying system. It can adapt and automatically control operating parameters based on ambient temperature, initial moisture level, type and quantity of polymer, the final moisture content of the polymer, and granule size. This innovative drying system adjusts and controls optimal operating settings for the material to be dried, using only the overall amount of energy strictly required. The settings are constantly compared with the data collected by the sensors installed on the system. A patented measuring unit, located in the air supply line, adjusts and controls the air flow instantaneously and independently. The airflow is modulated automatically by the drying unit, resulting in optimum process operating conditions.

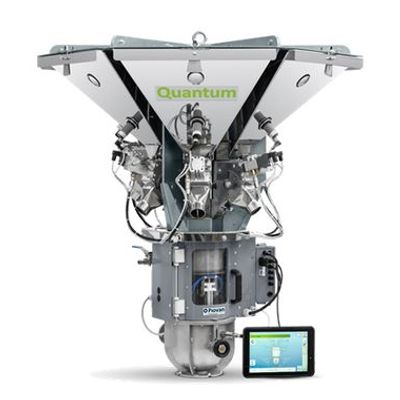

Quantum embodies innovations that radically change the way injection moulding machines and extruders are fed with blends of materials (virgin, recycled, masterbatch and additives). These innovations contribute to increasing the efficiency of production, and feature improved design, innovative technologies and high performance components, which translate into real advantages for the customer. Quantum is utilised in all application environments such as PET Preforms & Bottles, Rigid Packaging, Automotive Components, Technical Parts, Medical Solutions, Thermoforming & Technical Sheets, Flexible Films, Pipes, Profiles, Cables, Fibres & Strapping, Recycling and Compounds.

This innovative dosing system has been developed to ensure high accuracy, versatility and accuracy in extrusion processes, enhancing the advantages of both the gravimetric batch technology and the loss-in-weight systems.

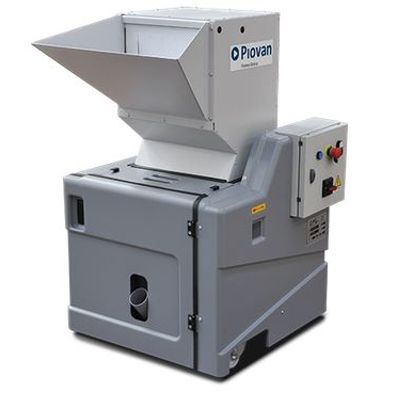

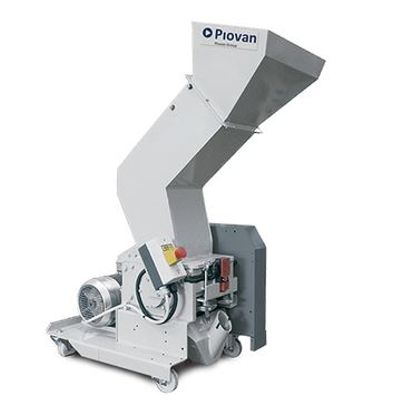

The B17 Series granulators are available in six standard models and over 50 versions for the fine granulation of processing wastes from the injection, blow moulding and extrusion industry. Provided with open or sector rotor and reversible hopper, quick opening and easy cleaning.

Models:  G17-22. G17-38. Cutting chamber: ø 170 mm.

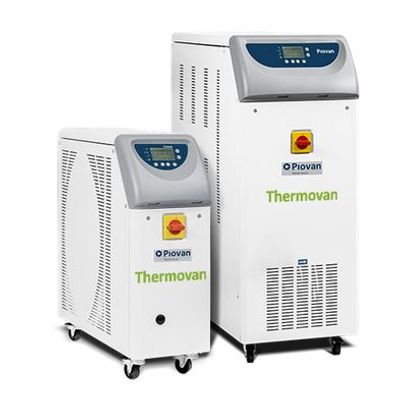

The TW, TO and TP series of Piovan mould temperature controllers has been designed to maintain at a constant temperature the mould cavities, the hydraulic oil of the injection moulding machines, the extruder screws, the calibration heads, the cylinders and calenders of thermoforming lines. Water, oil and pressurised water models operate in a wide range of temperatures, from 20°C up to 250°C.
