Pipe Equipment Specialists Ltd. (PESL) products

The Mud Tight Towing Head is engineered to address specific challenges in directional drilling, primarily designed to prevent drilling fluid ingress into pipes. It is compatible with pipes ranging from 32mm to 500mm, covering both SDR 11 and SDR 17.6 standards, and can also accommodate pipes with SDR values from 21 to 33. This adaptability ensures its utility across a broad spectrum of pipe specifications. It serves as a cost-efficient component for various drilling projects, aiding in maintaining the integrity and functionality of pipelines. The towing head is particularly suited for environments where the prevention of mud and fluid infiltration is critical, enhancing the overall efficiency of drilling operations.

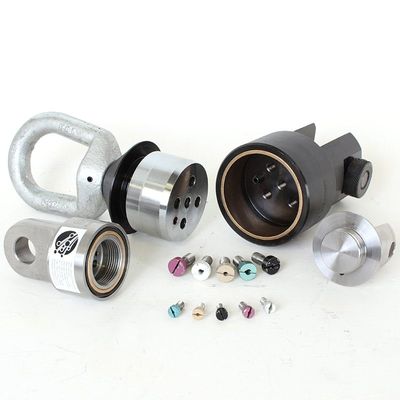

The Breakaway Connector, also referred to as a `weak link`, is an essential component designed to protect pipes and cables from damages due to excess tensile loads. Constructed from high grade stainless steel, the connector splits into two sections when a predetermined load is exceeded, thereby preventing harmful forces on cables or pipes. Each model of Breakaway Connector can be adjusted to accommodate various load capacities using Connector Pins. Model `1` accommodates loads from 0.3 to 6.0 tonnes, adjustable in 0.1 tonne increments, while Model `2` supports 6.0 to 20.0 tonnes in 0.5 tonne increments. Connector Pins ensure precise load ratings and are easily replaceable when the connector pulls apart, making it economical compared to other solutions. This device is pivotal in applications where load management is critical to prevent infrastructure damage during installations.

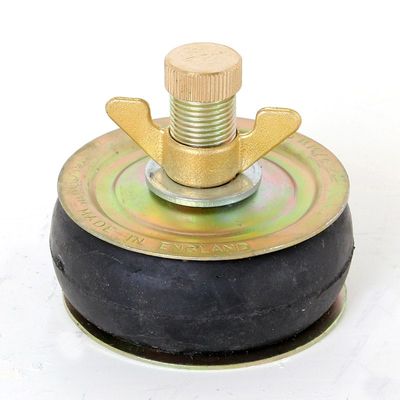

Expanding pipe stoppers, also referred to as drain plugs or bungs, play a crucial role in preventing the ingress of water and dirt into new and existing pipework. These stoppers are manufactured using materials such as nylon, aluminium, or pressed steel, depending on the specific size requirements. They come equipped with a central bored shaft, featuring an external BSP thread and a sealing cap, facilitating temporary sealing during maintenance and repairs. The expandable rubber tyre ring, located between two plates, is compressed by a wing nut to fit snugly within pipes and ducts. Available for a broad range of sizes from 12mm to 1200mm, these stoppers are constructed to meet British Standards, ensuring high quality and reliability. Pipe Equipment Specialists Ltd offers these flowstop expanding stoppers, designed to meet the stringent demands of various industrial applications, available for purchase via their online platform.

The Dub Swivel is engineered for directional drilling applications, equipped with patented features designed to endure extensive periods of load beneath the ground. These swivels enable efficient rotation of drill pipes while safeguarding utility pipes or cables against twisting. They are crucial for connecting the reamer head to utilities being pulled back. Diverse end configurations and load capacities are available to meet various directional drilling requirements. This product is suitable for harsh environments and ensures reliability and durability in challenging conditions, making it an excellent choice for professionals involved in underground utility installation projects.

The Pipe Equipment Plastic Mains and Service Tracer is an innovative tool designed to address the challenge of locating underground plastic mains and services. Originating from a concept by British Gas, it features a 30-meter nylon wire equipped with a nose cone and a conductor block, all contained within a durable metal box. This tracer is compatible with standard pipe locators, enabling it to trace both active and inactive pipes and ducts effectively. To facilitate insertion into live gas and water pipes, various glanding systems can be employed using existing fittings. Additionally, it can be introduced through an air hose to locate misplaced thrust boring equipment. For projects requiring longer lengths, users may refer to Flexible Tracer Rods. This product represents a versatile solution for infrastructure detection and maintenance tasks.

Pipe Equipment Specialists Ltd offers a comprehensive range of high-quality continuous fibreglass pipe rodding systems, designed and manufactured in accordance with stringent industry standards. These fibreglass rods, commonly known as cobras, are available in various diameters, including 4.5mm, 6.7mm, 9mm, 11mm, and 14mm, and can be supplied in custom lengths to suit different applications. The rods boast a robust construction with fine longitudinal fibreglass strands wrapped circumferentially and finished with a wear-resistant polyester coating, providing superior tensile strength, flexibility, and durability. Conveniently mounted in zinc-plated steel frames with large wheels, these products are easily transportable and can be used by a single operator. Suitable for a multitude of applications including draw rope installations, camera surveys, and winch wire cleanings, the rods feature bonded brass fittings for efficient operation.

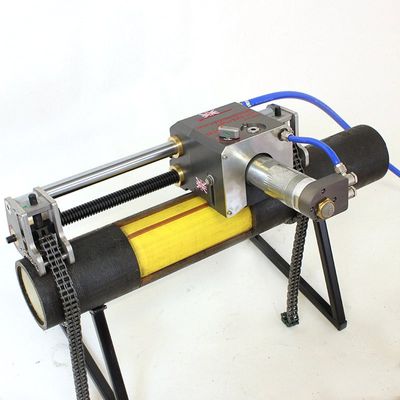

The Kent Precision Window Cutter is a specialized tool engineered by Pipe Equipment Specialists Ltd for efficient, safe, and accurate cuts in various pipe materials, especially Ductile Iron and Steel. With its lightweight, pneumatically-powered design, it`s adept at making both longitudinal and circumferential cuts. This utility is particularly important for cutting sections or windows in pipe walls, providing access to previously installed piping systems. It is compatible with pipe sizes starting at 40mm outer diameter and can handle wall thicknesses up to 20mm. The standard unit facilitates longitudinal cuts up to 250mm, with potential for longer lengths if required. Known for its precision, the Kent cutter is widely used across the UK, meeting diverse cutting demands of both individuals and businesses, thanks to its adaptable design and reliable performance.
