In pipelines; pipe alignment clamps should be used in order to make pipe connections in the best way and in the shortest time.

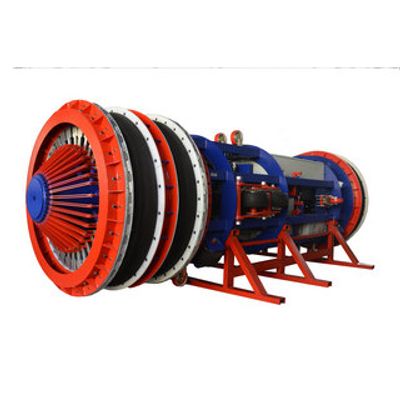

Pneumatic internal pipe clamp is an outward opening mechanism designed to apply a radial force out through the pipe.

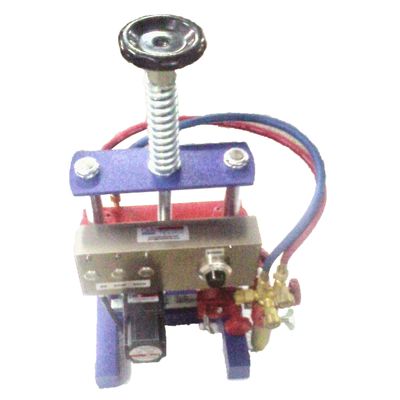

Flame Cutting Machine; The main body is made of aluminium alloy, has stylish and portable structure. The columns are chrome plated. Progression wheels on the pipe are yellow. It receives its movement by means of a special gear motor coupled gear unit. Precision speed control. The cutter is on the propane grouting structure. The pipe mouth chamfering at the desired angles up to 50mm depth, has a precise and smooth cutting feature to open the welding mouth. It is mounted on the pipe in horizontal, vertical and angled positions. Ideal for pipe cuts due to practical use.

In big oil, gas, water pipelines projects, in the combined pipelines, steel rope pulleys with I and H block design are used to lower the pipes in to the channel.The block structure and roller cradles have a unique design to support the lifting of combined pipelines and lifting machines.Roller cradle systems support the pipe in a cradle manner and prevent damage to the pipe coating.The cradles are covered with polyethylene to prevent the risk of damage to the pipe surface they are in contact with.Roller cradles are easy to dismantle for the field.Owing to their unique design, these systems can be quickly dismantled for transport and storage.Each cradle is created taking into account the largest pipe diameter. For pipe sizes 6 to 56, various cradle assemblies can be provided with the respective change cylinders.Various cradle assemblies are available for pipe sizes from 6 ”(168mm) to 60” (1524mm).Designed load capacity ensures safe transport of the pipe.Intermittent multiple urethane to evenly support the pipe and avoid the “ovality” problem.During the advance of the roller carriage system, the advancement of the welding seams formed on the surface of the pipe by means of springs on the apparatus is made without any problem.The point where the loading rope hangs uses a spring suspension system which absorbs and distributes the load of the conveyed material, greatly reducing the stress on the rollers and support structure of the idlers.

Pneumatic test system for testing the connections of pipes used in pipeline installations is a test method with air without the use of liquids and consumables. Pipe joint test system is placed inside the pipe section to be tested. The test system creates a closed-loop pressure medium within the pipe and monitors the pressure of the medium for leakage and/or pressure loss in the pipe section to be tested. Method is characterized in that the device comprises a first wall portion including a first sealing means and a second wall portion comprising a second sealing means. If the pipe section to be tested, in particular the connection point, is between the first wall portion and the second wall portion; the sealing means of the first wall portion is brought more tightly to the inner surface of the pipe. The sealing means of the second wall portion is brought more tightly to the inner surface of the pipe. The pressure medium is brought into the chamber cavity delimited by the first wall portion, the second wall portion, and the inner wall surface. The pressure in the pipe section is measured. It detects if there is a possible leakage of the pressure change or pipe section. Features of Pipe Joint Test Robot: Testable pipe types: GRP, Corrugated, Corrugated Triplex, PE, PVC, Steel, Ductile HDPE. For HDPE Pipe Joints: It can perform cutting and inserting the inner lips formed at the joint site. Auto Control: Determination of ovality in pipe. Imaging: In-Tube Ultra HD Camera. Lighting: Led. Distance Measurement: Determination of pipeline length. Marker: Laser. Temperature Detection: 3m optical heat measurement. In-pipe surface quality detection: In-pipe 360° Rotation Ultra HD Camera. Temperature Detection: In-pipe ambient temperature detection (lip stripping for pipes for HDPE). Pressure Test: Creation of working pressure and working test pressure by forming air cell under 175 psi pressure (12 bar). Pressure Equipment: Mono block compressor 50 lt.gf. Pipe Joint Test: Oring and Gasket Tests. Limit Speed: 1m – 24 m / min. System Control (Optional): Wi-fi, bluetooth and Cable. System Energy: DC 24 Volt. Reporting: Pressure test, Length, Ovality, EXCEL formation and Imaging Record HD Mp4 format. Warranty: 2 years.
