PLASSON Ltd. products

For Gas, Potable Water and Industrial PE Pipe Systems; Full bore passage. Fully encapsulated and PE over molded for a completely welded, pure PE, single material system. Unique, fully injection molded one piece design, making it free from internal cavities and trapped dirt 1/4 turn operation with stops, open and closed position indicator. Flat placements at valve bottom. Seals NBR, material approved according to EN549 B1/H3. Very low pressure loss. Outlets PE100 SDR 11, for use with ElectroFusion or Butt Welding, can also be used with Compression Fittings. Long spigot outlets making double shot possible. Traceability barcode available.

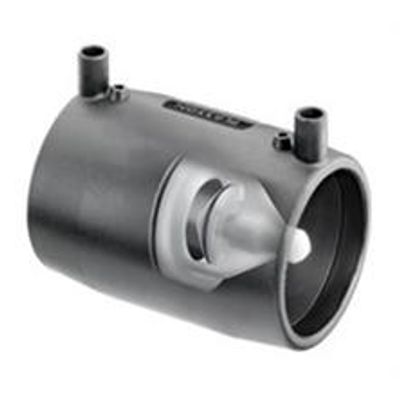

The Excess Flow Valve (EFV), also called Gas Stop (GS), is a special safety valve intended to be used in the house connection line of natural or other gas systems. It is typically installed at the outlet of the tapping saddle at the branch off point or on the house connection line, but can be installed at other locations and applications as well.

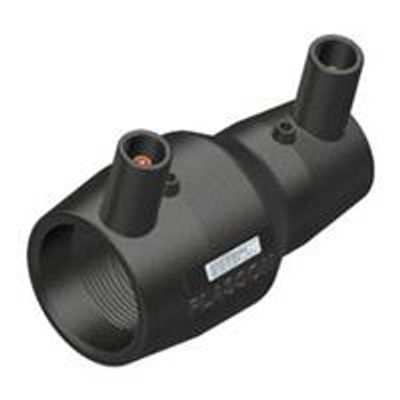

The Smart-System Solution You Can Depend On; PLASSON ElectroFusion fittings are specifically designed for reliable, high performance pipe joining and long system life. This automated system has been proven to be most economical due to the low potential for operator error.

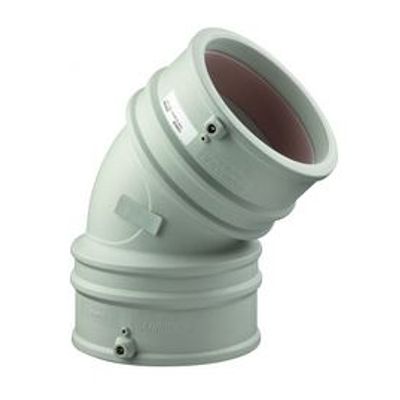

PLASSON`s Wastewater System: For use with PE pipe in leak free Wastewater Systems, Gravity Sewers, Vacuum Sewers.

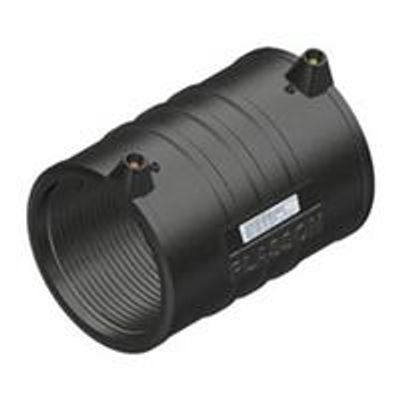

Weight [g] : 58. Nominal Diameter Mains [mm] : 16. Material : PE100. Pin : 4. Suitable Pipes : SDR 7 to SDR 11. Product Name : Coupler 16. Unit Per Carton : 480. Pressure Rating Water : PN 16. Type : Standard. Product Code : 490104016.

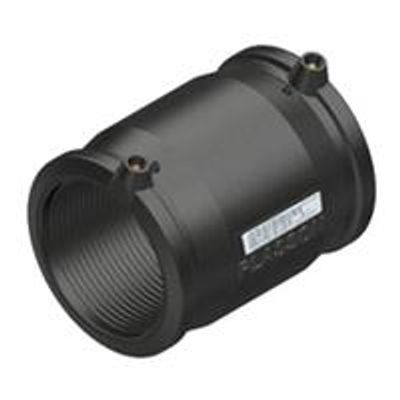

Weight [g]  : 83. Nominal Diameter Mains [mm]  : 32. Material  : PE100. Pin  : 4. Suitable Pipes  : SDR 7 to SDR 11. Product Name  : Long Coupler 32. Unit Per Carton  : 272. Pressure Rating Water  : PN 16. Type  : Standard. Product Code  : 491L4032.

Standards : ISO 4427, ISO 8085, EN 1555, EN 12201, AS/NZS 4129, AFNOR NF 136. Comments : MOP (gas) in accordance with governing regulations. Chemical Resistance : Plasson EF fittings are produced from PE materials approved for use with potable water and gas. For other media please consult your local Plasson representative.

Weight [g] : 96. Nominal Diameter Mains [mm] : 40. Material : PE100. Pin : 4. Suitable Pipes : SDR 11 to SDR 17. Product Name : LightFit Coupler 40. Unit Per Carton : 200. Pressure Rating Water : PN 10. Type : Standard. Product Code : 460104040.

Standards : ISO 4427, ISO 8085, EN 1555, EN 12201, AS/NZS 4129, AFNOR NF 136. Comments : MOP (gas) in accordance with governing regulations. Chemical Resistance : Plasson EF fittings are produced from PE materials approved for use with potable water and gas. For other media please consult your local Plasson representative.

Standards : ISO 4427, ISO 8085, EN 1555, EN 12201, AS/NZS 4129, AFNOR NF 136. Comments : MOP (gas) in accordance with governing regulations. Chemical Resistance : Plasson EF fittings are produced from PE materials approved for use with potable water and gas. For other media please consult your local Plasson representative.
