Plast-O-Matic Valves, Inc. products

Safety: Allows safe expulsion of unwanted air in piping systems. Dependability: Patent-pending float mechanism assures minimal emission of system liquid prior to sealing. Minimal Closing Pressure: Closes at 0 PSI, as long as liquid is present. Cost Efficient: Designed to improve system performance and competitively priced. Superior Design: Valve opens and closes automatically, over and over and over. Corrosion Resistant: Top quality thermoplastics and elastomers resist chemical attack and protect system purity. No metal components in Series DGV.

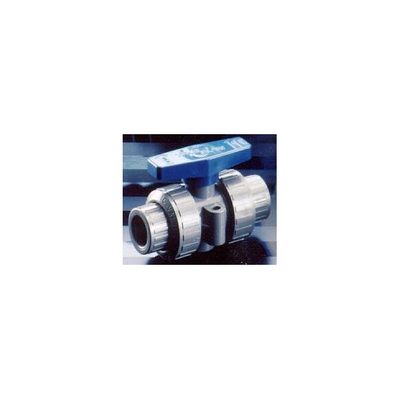

Now available in 3" and 4" sizes! Molded mounting brackets for excellent support and ease of piping installation. Pressure rated at 175 PSI (11,91 BAR). Kynar PVDF ball valve rated to 232 PSI. Plast-O-Matic True Blue Ball Valves sizes 1/2", 3/4", 1", 1¼", 1½" and 2" are 100% molded, machined & assembled in Cedar Grove, NJ, USA. Some materials on 3" and 4" valves are imported, however, all machining & assembly is done in Cedar Grove, NJ, USA. 100 percent pressure tested at our factory in Cedar Grove. Available in Geon PVC, Corzan CPVC, Natural (virgin, unpigmented) Polypropylene, and Kynar PVDF. Available seal materials are EPDM and Viton. Handle is molded ABS. Other materials available; minimum quantities apply.

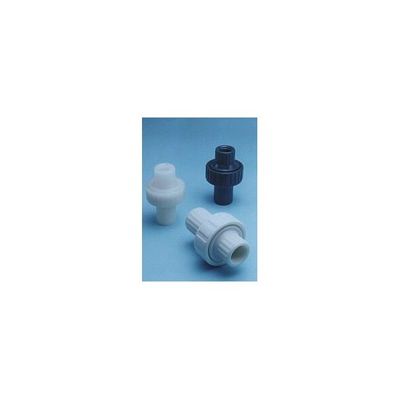

Patented Design: Self-sealing - they are not dependent on gravity, mounting position or reverse flow, a significant improvement over ball check valves. Silent Operation: No internal sliding or loose parts to slam or vibrate, chattering is eliminated!. Dependability: Leak-free sealing protects against the potential hazards created by reverse flow of corrosive liquids such as acids, caustics and chlorine solutions.

Compact valves for corrosive and ultra-pure liquids in Geon® PVC, Corzan® CPVC, PTFE, Kynar® PVDF & Natural Polypropylene ¼` through 1½` sizes.

Advantages of specifying Plast-O-Matic Sticks: Corrosion-resistant thermoplastics are maintenance-free, last years longer than metal sticks. Reinforced direct connection between components eliminates extra joints, weak points and accidental breakage. Smaller footprint than metal sticks. One part number, two connections per stick simplifies installation and reduces cost. Easily customized for specific applications. Molded, Machined & Assembled in USA -- minimal lead times, superior quality.

Plast-O-Matic True Blue® brand chemical flow and level indicators offer a safe and economical means of indicating flow, clarity , or exact level of extremely corrosive and ultra-pure liquids such as sulphuric acid, hydrochloric acid, chlorine, caustics, and demineralized water. Two essential considerations in the choice of a flow or level indicator should be its strength and design simplicity since these factors minimize malfunctions and maintenance problems. All Plast-O-Matic flow and level indicators are designed to withstand reasonable external shocks. Simplicity is their engineering standard. These flow indicators are available in three different models: Series GX single-wall sight glass, Series GY double-wall sight glass, and Series GYW double-wall, wafer-style sight glass. The level indicators are available in one model: Series GL. All are easy to install, practically maintenance free, and above all, easy to view whenever necessary.

3/8″ – 4″ sizes in PVC, CPVC, Natural Polypro, PVDF with FKM or EPDM. 3/8″ – 2″ feature trunnion design, dual sliding seats. 3″ and 4″ sizes are single direction safe-block design. Available with NPT, Socket, BSP, Sanitary, Spigot and other connection types. ½” through 2” 2-way valves available in UV-blocking Red Kynar. Options include Z-vent for sodium hypochlorite, Lock-out/Tag-out, Metering, Characterization, Stem Extensions, and Lateral Reducing connections.

Three-way version offers the same trunnion design, dual sliding seats and other premium features found in our 2-way valves. 1/2″ – 2″ sizes in PVC or CPVC, with 2-hole ball to prevent mixing, or 3-hole ball to prevent momentary deadhead. 3″ & 4″ sizes in PVC, CPVC, PP and PVDF.

Series CKM A unique, patented diaphragm provides normally-closed operation with a bubble-tight seal, even with no reverse pressure. 1/2″ through 1″ pipe sizes.
