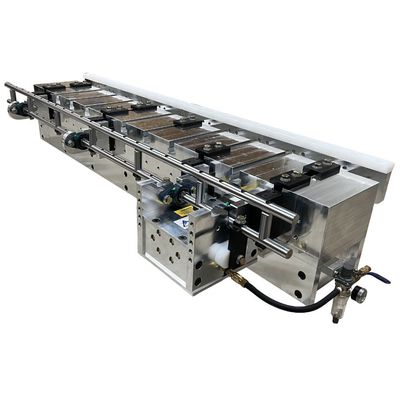

The Radial Pro-LD Light Duty Scrap Removal Conveyor System is engineered for metal stamping applications where efficiency and adaptability are critical. Utilizing radical conveying motion, this technology mitigates the strain and inefficiencies associated with traditional leverage force-offs, enhancing overall operational performance. It operates effectively with stamping presses featuring bolsters up to 6 feet wide, handling pneumatic pressures from 0-80 PSI with an air consumption rate of 0.6 CFM at 120 strokes per minute. The system works with dry filtered air and functions in temperature ranges from 0 to 120 degrees Fahrenheit. With the ability to support up to 350 pounds at 80 PSI and convey material at speeds of 15 feet per minute, it is optimized for a range of production scenarios. Featuring flexible mounting configurations and a robust design, it accommodates face plate and T-slot tongue setups seamlessly.

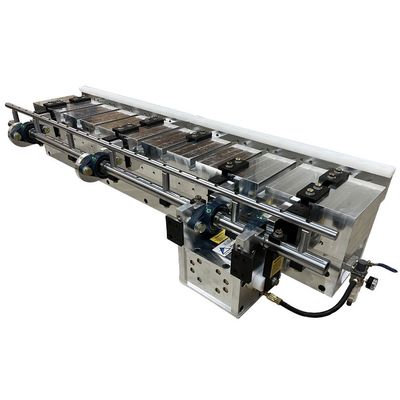

The Radial Pro-HD Heavy Duty Scrap Removal Conveyor System revolutionizes scrap handling processes within metal stamping operations. Specially engineered to work with stamping presses featuring bolsters up to 12 feet wide, this system introduces a novel radial conveying motion that significantly enhances scrap removal efficiency. By mitigating the adverse effects of leverage force and offset loading, it promotes more effective and less damaging scrap handling. With specifications including operation at 0-80 PSI and utilizing 1.6 cubic feet per minute of dry filtered air at 120 strokes per minute, the system offers substantial power, handling up to 875 lbs at 80 PSI. The system's speed reaches 15 feet per minute, accommodating significant weights with dimensions adjustable from 24 to 144 inches. Offering additional mounting options, the system is designed for durability and operational efficiency, aiming to streamline workflow and improve productivity in industrial settings.

The Shuttle Pro-100LP is a low-profile pneumatic conveyor drive meticulously engineered for single tray conveying applications. It operates efficiently under a pressure range of 0-80 PSI, requiring a minimal air consumption of 0.21 CFM at 120 strokes per minute utilizing dry filtered air. Capable of handling loads up to 100 pounds at 80 PSI, it maintains optimal performance across a temperature spectrum of 0-120°F. The unit measures 1.25 inches and can achieve a conveying speed of 12.50 feet per minute. Designed with durability in mind, it supports a total weight of 25 pounds while accommodating up to 50 pounds in conveying capacity. This pneumatic drive is suitable for linear motion projects, offering reliability and precision in industrial operations. Its implementation could significantly enhance productivity in automated material handling systems.

The Shuttle Pro-150 Pneumatic Conveyor Drive is designed for efficient single or multiple tray conveying applications. This compact drive offers a linear motion pneumatically powered solution, functioning optimally within an air pressure range of 0-80 PSI, while consuming 0.36 CFM at 120 strokes per minute. The device operates effectively in temperatures ranging from 0 to 120 degrees Fahrenheit, supporting a force of 150 lbs at 80 PSI. This equipment moves assemblies up to 12.50 feet per minute and weighs approximately 37.50 lbs, capable of handling up to 75 lbs. The Shuttle Pro-150 is engineered to ensure longevity and reliability under rigorous conditions, using dry filtered air to maintain performance standards. It is an ideal solution for industries requiring precise and consistent material conveyance within defined mechanical parameters.

The Shuttle Pro-250 Pneumatic Conveyor Drive is engineered for efficient material handling solutions in both single and multiple tray conveying applications. Utilizing dry, filtered air to operate, this compact drive performs optimally between 0 to 80 PSI, handling up to 250 lbs at the maximum pressure, and displaces air at a volume of 0.62 cubic feet per minute at 120 strokes per minute. The endurance of the Shuttle Pro-250 is evident in its design, capable of operating in environments spanning from 0 to 120 degrees Fahrenheit. The drive provides a linear motion capability, advancing at a rate of 12.50 feet per minute. At a total weight of 62.50 lbs, it represents a balance between portability and robust functionality. This unit is ideal for industrial settings demanding reliable pneumatics and consistent functional performance in diverse conditions.
