PoliMate S.r.l. products

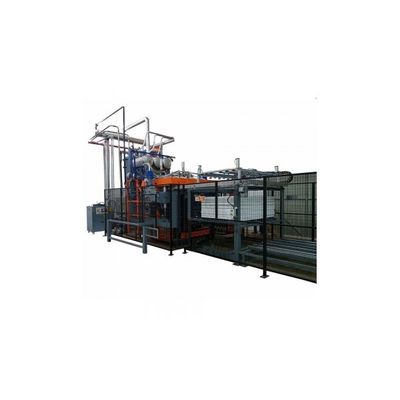

Multipurpose horizontal machine that can molding with virgin material or recycled EPS material up to 100%. %. The lower part is equipped with a movable plane with electronic control of the position which also allows to mold 2 layers in different density and/or with different types of material. This feature also allows you to change the thickness of slabs without making any changes to the mold. The machine layout is designed to introduce various types of inserts into the mold (metal grid, profiles, etc.) and / or reduce the size of the slab according to the Customer`s needs The pieces / slabs produced are stacked and transported automatically outside the work area to be picked up easily and safely by the operator.

The first to be manufactured at Polimate, the PM series is a production line capable of offering personalised and custom-made solutions in applications of any level or scale. The technological concept developed by Polimate technicians makes it so that the PM series is extremely reliable and efficient, even under extreme environmental and climatic conditions. The use of the state of art computer equipment for mechanical modelling and the care taken to meet our clients’ requirements has allowed us to produce dozens of models and several specialized machines all while honouring our delivery periods. The range is completed by a series of accessories specially designed to increase performance and automate the operations envisaged on the pieces produced.

Continuous molding machine for forming self-supporting slabs reinforced with welded mesh steel pylons. The result of our experience in the design of machines dedicated to the new EPS tecnologies in the construction sector, although the final product is complex, it is a versatile and fully automated but simple to setting machine. It is composed of 3 sections: - Welded mesh steel pylons introduction section into the mold - Section of the mold with movable plate for changing the thickness - Extraction system of the slabs from the mold. Also for this machine, according to the customer`s needs, we are able to supply auxiliary machines up to the supply of the "turnkey" system.

The search for new solutions in the construction sector, whether civil or industrial, which are capable of complying with the new regulations for thermal insulation has favoured notable development the use of EPS which unites its low production and set up costs with great thermal insulating ability. It is in this context that the MP series was begun. This series of machines horizontally molds items for light slabs in perforated EPS and with variable forms, with a fixed or continual length and the possibility of inserting galvanised metal profiles. The mold elements supplied are fully customizable according to the customer`s needs.

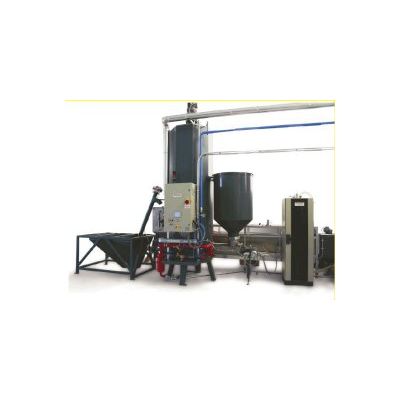

The constant search for technological solutions and design to provide the market with quality machines at low cost, has produced this pre-expander that despite being `low cost`, maintains the technical characteristics of the first level. Our operating flexibility helps us create personalized installation configurations for machines that must be installed in small spaces

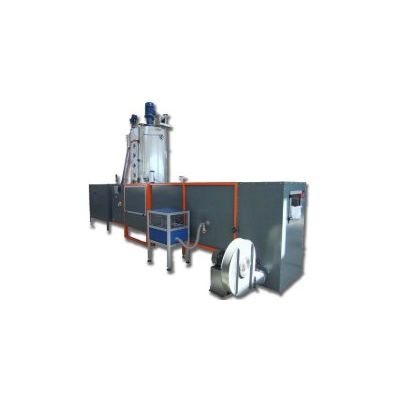

The EC series of continuous pre-expanders has been expanded beyond the simple and reliable traditional electromechanical models with great success through electronic models which, through the use of the latest technology available on the market, overcomes the parameter control problems during material change. In fact, thanks to the introduction of the electronic control system, the expansion cycle is controlled completely automatically and the control parameters can be constantly monitored, modified and saved.

Makes it possible to silk-screen on 1 or 2 sides of variously-shaped EPS boxes, using 1 or 2 inks. It has drying ovens at the input and the output of the silk screening station. The man-machine dialogue is carried out through a touch-operated panel and makes it possible to optimise the printing by modifying a few parameters. System of regulation of the dimensions of the input cassettes. Drying oven at the beginning in order to eliminate the residuals of humidity from the EPS elements. Two stations for silk-screening printing, each one equipped with two independently controlled painting spatulas, one on each side of the element to paint. Two drying furnaces, one after each printing station. Control board with PLC and operating panel, equipped with touch-screen interface and an efficient system of management of the operational cycle. Pneumatic system realized with electrovalves and filtering group.
