Polix Export d.o.o. products

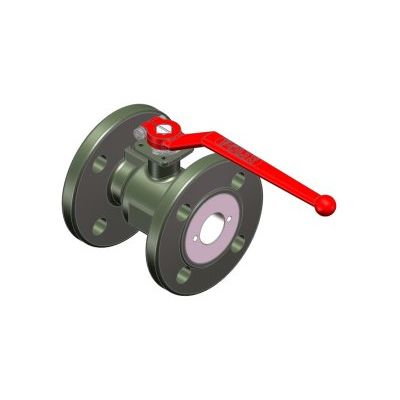

Body Ductile Iron - EN-GJS-400-15 (GGG40). Ball Stainless Steel - X5CrNi 18-10 (A304). Stem Stainless Steel - X20CM3 (A420). Seats PTFE. O-Ring PTFE. Handle Forged Aluminium -AI6061, option S235JR (RSt 37-2).

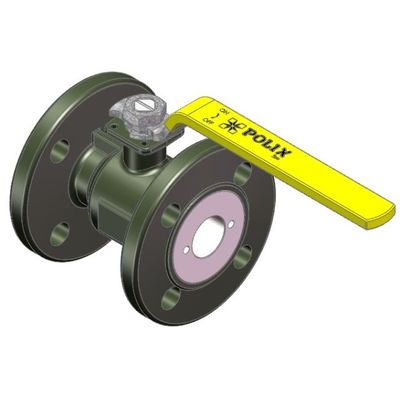

Body Ductile Iron –EN-GJS-400-15 (GGG40). Ball. Brass –CuZn40Pb2 (Ms 58). Stem Stainless Steel–X30Cr13 (A420). Seats PTFE. O-RingViton. Handle Carbon steel (Galvanized) –S235JR (St 37-2).

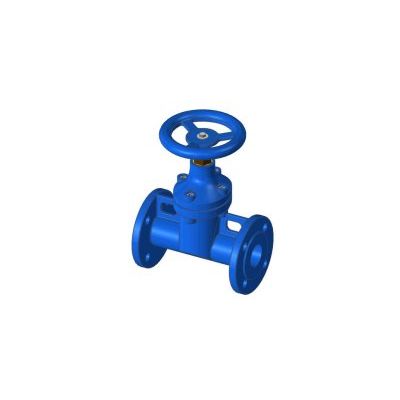

Body Ductile Iron - GGG50. Wedge Ductile Iron - GGG50 with EPDM coating. Stem nut Brass. Stem Stainless Steel - A304. Bonnet Ductile Iron - GGG50. Handwheel Ductile Iron - GGG50. Dust ring EPDM. Sealing NBR. O-Ring NBR.

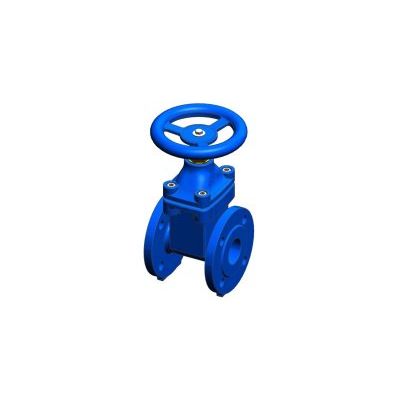

Body Ductile Iron - GGG50. Wedge Ductile Iron - GGG50 with EPDM coating. Stem nut Brass. Stem Stainless Steel - A304. Bonnet Ductile Iron - GGG50. Handwheel Ductile Iron - GGG50. Dust ring EPDM. Sealinq NBR. O-Ring NBR.

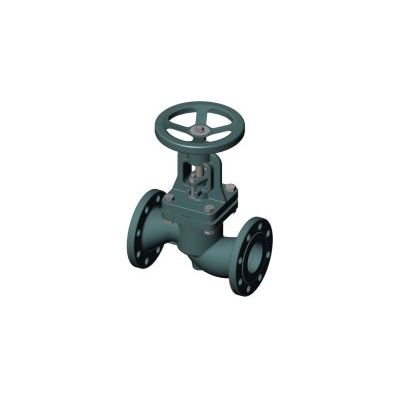

Body Cast Iron-GG25. Seat Ring Stainless Steel - A304. Disc Stainless Steel-A304. Packing Graphite. Bonnet Gasket Graphite. Bonnet Cast Iron - GG25. Stem Stainless Steel-A304. Handwheel Steel.

Body Cast Iron-GG25. Disc Ductile lron-GGG50. Stem Stainless Steel-A304. Seat EPDM. Bushing PTFE. O-Ring EPDM.

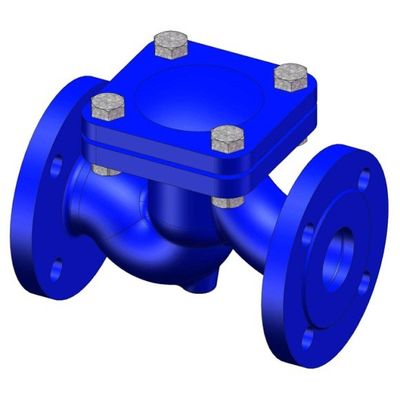

Body Cast iron - EN-GJL-250. Bonnet Cast iron - EN-GJL-250. Disc Cast iron - EN-GJL-250. Disc guide Brass. Spring Stainless steel -X5CrNi18 10. Body ring Stainless steel -X5CrNi18 10. Bonnet gasket Graphite. Disc ring Stainless steel -X5CrNi18 10. Bolts Carbon steel - galvanized. Nuts Carbon steel - galvanized.

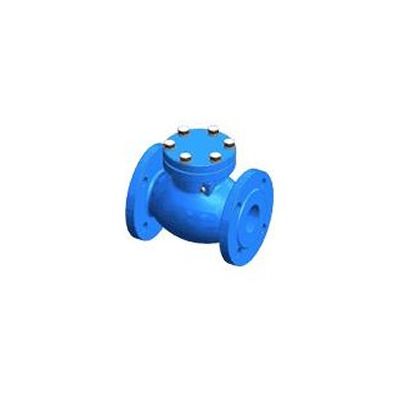

Body: Cast Iron - GG25. Disc: Cast Iron - GG25. Dimensions: DN40-DN300. Temperature: 0°C / +120°C. Nominal pressure: PN 16. Certificate: CE * UkrSEPRO * GOST-R.

Body Cast lron-GG25. Bonnet Cast Iron - GG25. Bolt Galvanized Steel. Gasket Graphite Steel. Wire mesh Stainless Steel-A304. Plug Galvanized Steel./
