Polmot Submersible Motor & Pump products

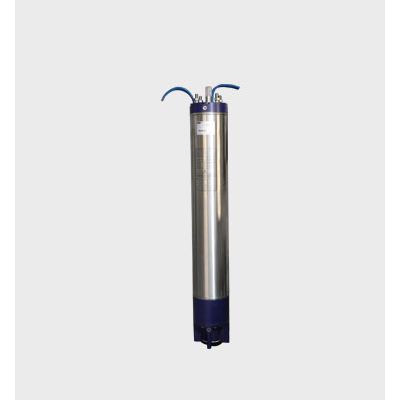

4 ” high performance rewindable submersible motors are made completely of 304 stainless steel. Lubrication and cooling of the motor and bearings are provided by a special fluid. The rotors are supported by 3 ball bearings (2 bearings up to 3 Hp) and the motors have high axial strength. All ?aprari Motors have power cables that can be easily removed in case of maintenance. Mechanical seal is Graphite Ceramic.

Speed: 2850rpm. Insulation Class: F. Degree of Protection: IP 68. Max liquid temperature: 35  degree. Minimum well diameter: 4". Engine Rewind:  Standard: Nema, Motor housing: AISI 304 SS. Top Wedges: Cast-Cu ASTM C85500: Cast-Iron ASTM NO.30, AISI 304 SS. Lower support: AISI 304 SS. Mechanical Seal: Graphite-Ceramic. Shaft: AISI304 SS -ASTM5140.

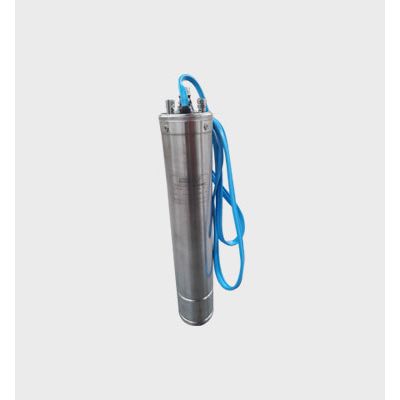

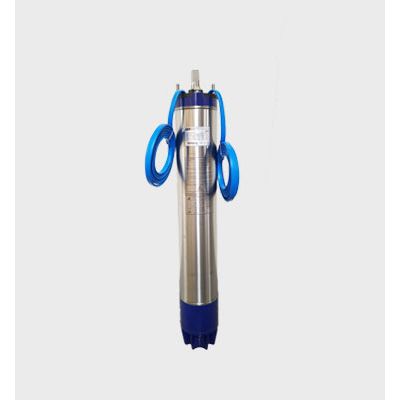

Poldap submersible motors that have cooling and lubrication with the help of water filled into themselves; are rewindable type, Wet stator,three-phase,and squirrel cage electric motors designed for clean water pumps that are used in deep wells .

Poldap submersible motors that have cooling and lubrication with the help of water filled into themselves; are rewindable type,Wet stator,three-phase,and squirrel cage electric motors designed for clean water pumps that are used in deep wells.

Poldap submersible motors that have cooling and lubrication with the help of water filled into themselves; are rewindable type,Wet stator,three-phase,and squirrel cage electric motors designed for clean water pumps that are used in deep wells .

Poldap submersible motors that have cooling and lubrication with the help of water filled into themselves; are rewindable type,Wet stator,three-phase,and squirrel cage electric motors designed for clean water pumps that are used in deep wells.

Pump Type:  PLN 403 / 10. Power HP 0,75.

Pump Type: PN 401 / 10. Power HP: 0,5

Pump Type: PLP 402 / 13. Power HP: 0,75.

Pump Type: PLD 515 / 05. Power HP: 3.
