Pompes Japy products

Construction materials; Suction pipe. 3 metres of discharge hose. Ø 19 mm spout. Adaptor for barrels. Specifications and advantages; Manual pump for manual AdBlue kits.

Construction materials : Suction pipe and elbow: Ø 25 at the discharge. Specifications and advantages : Manual pump for manual AdBlue kits.

Construction materials :  Body, cover and lever: cast iron. Inner mechanism: brass. Waterproofing: graphite braid. NBR flange O-ring, Viton® or PTFE seal as optional.. Specifications and advantages : Bare pump with cast iron lever

Construction materials : Body, cover: bronze, Mechanism: bronze, Lever: cast iron (brass as an option -LL)., Flange: PN 10 standard, Waterproofing: graphite braid. Specifications and advantages : Manual pump with standard flange.

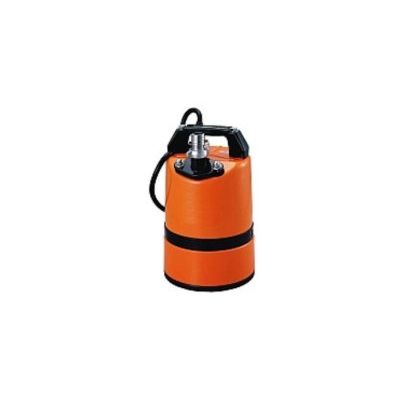

For the pumping of muddy and sandy water. Excavation drying. Designed for prolonged dry running. Temperature of the pumped liquid: 0 to 40°C. 230 V, 50 Hz single-phase motor with built-in heat protection and 10 m cable. Maximum permitted particle size: Ø 6 mm. Aluminium motor casing, stainless steel shaft, urethane turbine, waterproofing by a double mechanical seal with oil chamber. Optional float.

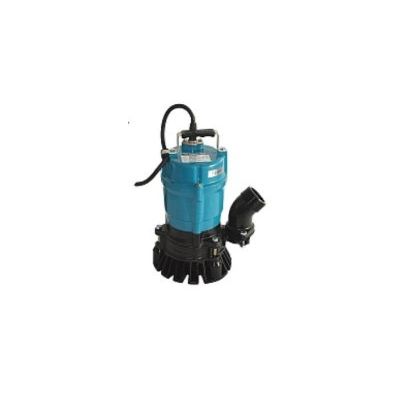

For the pumping of muddy and sandy water. Excavation drying. Temperature of the pumped liquid: 0 to 40°C. 400 V, 50 Hz 3-phase motor, 3000 rpm. Protection by an embedded thermistor. With 10 or 20 m of cable depending on the model. Threaded outlet of Ø 50 mm to Ø 80 mm depending on the model. Maximum permitted particle size: Ø 8.5 mm. Aluminium motor casing, stainless steel shaft, waterproofing by a double mechanical seal. Optional agitator.

For the pumping of muddy and sandy water. Excavation drying. Designed for prolonged dry running. Temperature of the pumped liquid: 0 to 40°C. 230 V, 50 Hz single-phase motor with built-in heat protection and 10 m cable. Maximum permitted particle size: Ø 6 mm. Aluminium motor casing, stainless steel shaft, urethane turbine, waterproofing by a double mechanical seal with oil chamber. Optional float.

For the pumping of muddy and sandy water. Excavation drying. Designed for prolonged dry running. The PE-S pump leaves just 1 millimetre of residual water. Temperature of the pumped liquid: 0 to 40°C. 230 V, 50 Hz single-phase motor with built-in heat protection and 10 m cable. Maximum permitted particle size: Ø 6 mm. Aluminium motor casing, stainless steel shaft, urethane turbine, waterproofing by a double mechanical seal with oil chamber. Optional float.

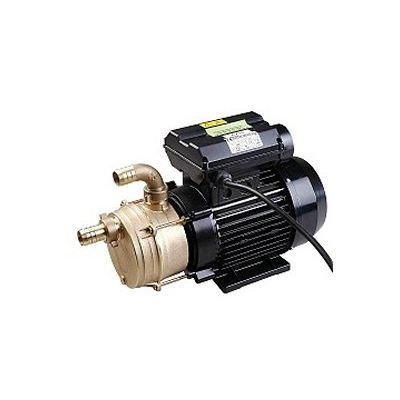

Technical data :  Body: brass. Control valve with pressure gauge. Suction hose: length: 1.5 metres. Discharge hose: length: 1.5 metres. Power: 1.75 kW. Voltage: single-phase 230 Volts. Max. pressure: 50 bars. Specifications and advantages: Electric test pump.

Technical data; Designed for transferring AdBlue or water. Power: 0.26 (JEV112EQ-ADBLUE), 0.31 (JEV124EQ-ADBLUE). Voltage: 12 dc (JEV112-ADBLUE), 24 dc (JEV124-ADBLUE). Current: 22 (JEV112-ADBLUE), 13 (JEV124-ADBLUE). Working cycle: 20 min. Specifications and advantages: Electric pump for AdBlue.
