Portescap products

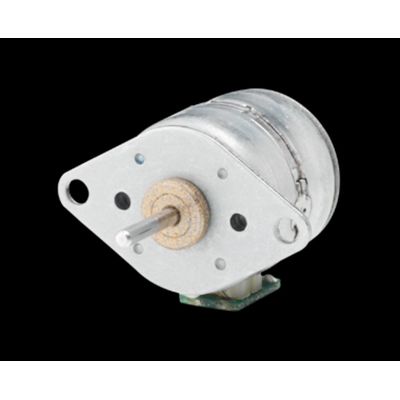

The smallest of our can stack stepper product line, the 15M020D provides .55 oz-in (3.87mNm) of holding torque in a 15mm frame size. It is optimal for low-torque positioning applications where size and/or weight is limited.

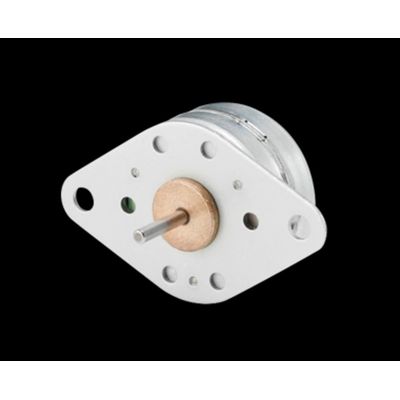

The 20M020D provides up to 1.55 oz-in (10.95 mNm) of holding torque in a 20 mm frame size. The neodymium magnets provide high power density for applications that need moderate torque in a small package. It is available in 5 or 12 volt windings, and in unipolar or bipolar designs.

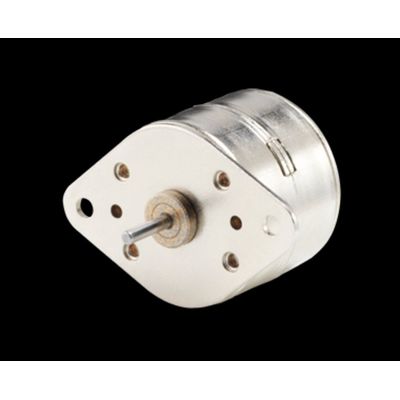

The 26M024B is a 15 degree step angle can stack that can provide up to 1.1 oz-in (7.8 mNm) of holding torque in a 26 mm frame size. It is available in 5 or 12 volt windings, and in unipolar or bipolar designs.
