Potence Controls Pvt Ltd. products

Potence Controls PC pH105 Transmitter can be selected to measure pH or mV along with the temperature. Measured Parameter and Temperature can be displayed together in pH measurement mode. This 4- 20 mA Isolated output industrial transmitter, a sturdy microprocessor-based instrument which transmits pH or mV measurements via a two wire power supply loop. The industrial transmitter has many user friendly features-all of which are easily accessible via the water resistant membrane keypad. Ideal for connecting to a PLC for advanced control systems. All user settings are retained indefinitely without battery backup. The instrument housing is designed for panel or wall mounting.

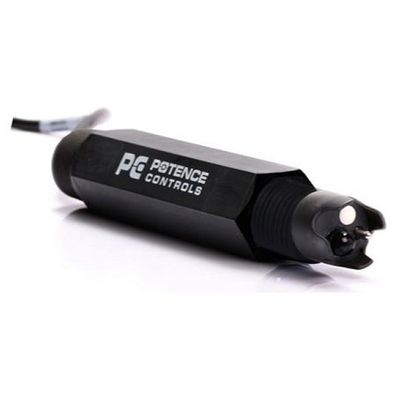

Potence Controls PCV Series pH Sensors are specially designed for Harsh and Special Applications. These sensors with a new unique multipurpose glass; allows pH sensors to provide fast response, great accuracy and repeatability. A concentric measuring and reference electrode with large reference area minimizes reference clogging problems. Annular ceramic reference junction permits use where high solution currents prevail and is unaffected by streaming potentials. Double Junction Polymerized Gel filled reference requires NO pressurization allows to use in samples having Organic compounds, Proteins, Heavy metal or other compounds that reacts with silver. The sensor is suitable for Harsh applications such as Pharma Industry/Bulk Drugs wherein the process many a times involves SOLVENTS and several Chemical Industries etc.

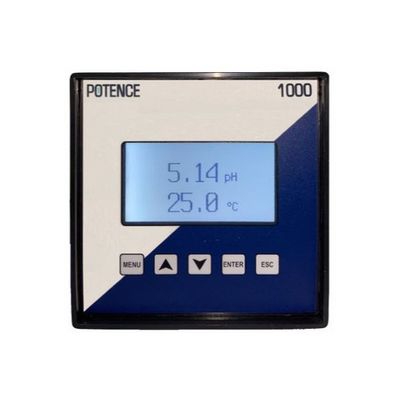

Potence Controls PC1000 Series Analyzer for pH/ORP/Conductivity/TDS measurements incorporate the latest technology to provide highly reliable, flexible, feature-packed device that satisfies a diverse range of process monitoring and control applications. Measurements such as pH/Redox (ORP) or Conductivity / Total Dissolved Solids (TDS) are freely selectable via Software thus reducing the need of individual dedicated controllers, the PC1000 can be picked up off shelf and can be used for any of the above measurements. The large backlit display has been designed to operate in all types of environments and provides information on Main Measured value and Temperature simultaneously. PC1000 not only Measures but provides Retransmission via 2 Nos. of 4 – 20 mA Outputs and RS - 485 Digital communication.

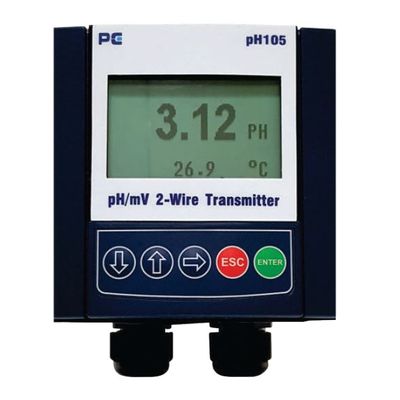

Potence Controls PC pH105 Transmitter can be selected to measure pH or mV along with the temperature. Measured Parameter and Temperature can be displayed together in pH Measurement mode. This 4 – 20 mA Isolated output industrial transmitter, a sturdy microprocessor-based instrument which transmits pH or mV measurements via a twowire power supply loop. The industrial transmitter has many userfriendly features – all of which are easily accessible via the water-resistant membrane keypad. Ideal for connecting to a PLC for advanced control systems. All user settings are retained indefinitely without battery backup. The instrument housing is designed for panel or wall mounting.

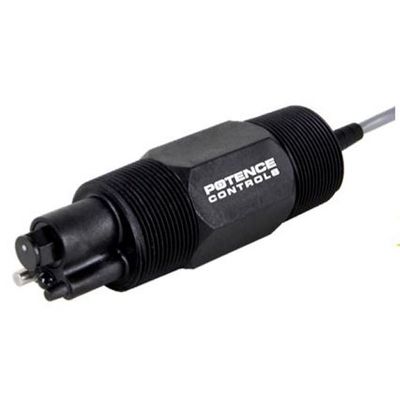

Potence Controls PC Series combination pH/ORP Sensors are designed for special applications. They can be mounted in a Flow through Tee/Chamber or Immersed in Tanks or Vessels. The reference cell is Double-Junction Porous Teflon design and comes with a built-in solution ground owing to which the performance of this sensor is enhanced. The body is made from chemically-resistant Ryton which is suitable for some of the most harsh applications The sensors are rated for 0-105°C @100 psig and come with a standard 15 feet cable.

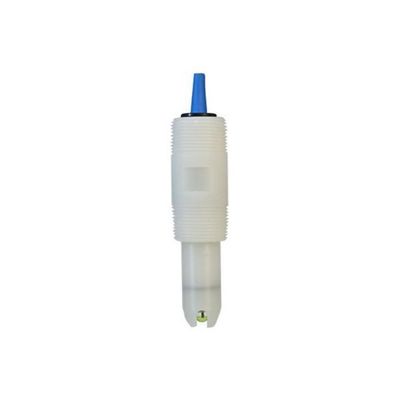

Potence Controls Differenal pH /ORP sensors are designed for special applicaons. They can be mounted in a Flow through Tee / Chamber or Immersed in Tanks or Vessels. Differenal technique uses three electrodes instead of the two electrodes normally used in convenonal pH sensors. Process and reference electrodes measure the pH differenally with respect to a third ground electrode. Differenal technology helps in improving measurement accuracy and extending sensor lifeme.

Potence Controls PCV Series pH Sensors are specifically designed for Harsh and Special  Applications. These sensors with a new unique multipurpose glass ; allows pH sensors to provide  fast response, great accuracy and repeatability in High Temperature application. Sensors manufactured with Double junction Solid Polymer Reference (SPR). Ideal for difficult industrial measurements with high solids content or oxidizing agents. The solid polymer reference solves the most common failure mode for conventional pH sensors where the reference junction becomes clogged.  The sensor is suitable for High temperature application without cracking or boiling of internal fill solution.

Potence Controls PC2000 series Single/Dual Channel Analyzers pH/ORP/Conductivity/TDS measurements incorporate state of the art technology to provide flexible and reliable solutions to the customer for their Process Monitoring and Control needs. Any two of the measurements from pH / Redox (ORP) / Conductivity / Total Dissolved Solids (TDS) can be freely selected for use with the PC2000 Analyzer via software, thus reducing the need of individual dedicated controllers, the PC2000 can be picked up off the shelf and can be used for any 2 of the above measurements.

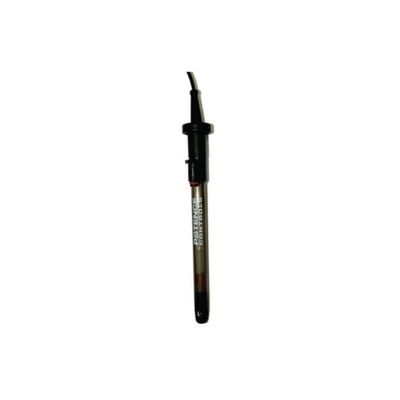

Potence Controls pH3000 Sensor designed for critical applications such as Drinking water and Pharmaceutical applications where accuracy and repetability is important.This pH sensor will give stable measurement by responding quickly and accurately to temperature changes. The high sensitivity internals also make these pH sensor the best choice for low ionic samples. The double junction reference design prevents contamination. These pH sensors stand upto aggressive chemicals and temperature uptol 00 °C.

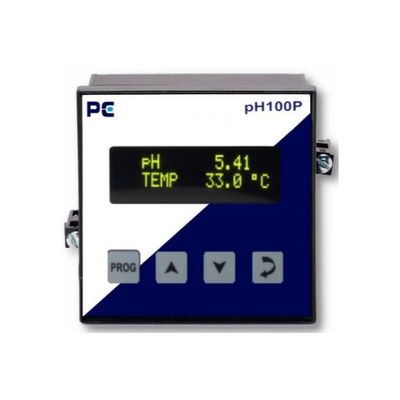

Potence Controls PC Series pH Controller model pH100P is a versatile instrument with a wide range of useful features and programmable options. The Controller is suitable for use by both OEMS and end Users alike. The measured values include pH and Temperature. With built-in Auto Temp. Compensation, the measured pH Values are accurate to the decimal. With two nos. of 4-20mA outputs and 2 relays, it caters to the basic requirements of the OEMS as well as the End User.
