Powder Process-Solutions products

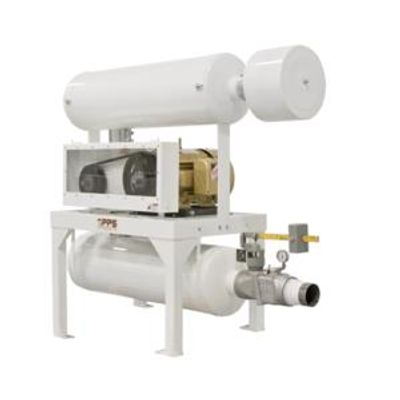

Positive displacement blower packages are provided as a component or as an integral part of a PPS provided system. For over 30 years, we have been providing pressure and vacuum blower packages to the food processing industry. The blower package, be it a pressure or vacuum system, dilute-phase or dense phase, provides the motive for air delivery of food products through convey lines. Our Process Engineers are able to design blower packages for all compatible applications and provide you with an appropriately sized package for optimum efficiency and performance.

Dehumidifiers and aftercoolers are utilized in process air and pneumatic conveying systems to control both the moisture level and temperature of air that comes into contact with moisture and heat sensitive products. Dehumidifiers use chilled water or refrigerant heat exchange coils to lower the incoming air temperature below the dew point at appropriate face velocities. This allows for the separation of moisture from the air stream followed by the draining of condensate from the housing. Dehumidifiers can incorporate a reheat coil or use heat of compression when located on the intake side of a pressure blower to lower the process air relative humidity for increased moisture carrying capacity. Aftercoolers use heat exchange coils to remove the heat generated by a pressure blower prior to product contact. Our superior housing design allows for access to heat exchange coils for inspection and can be arranged in inline or stacked configurations where installation space is limited.

PPS bulk bag unloading systems offer safe, efficient, and dust-free methods that are essential when handling bulk bags. A range of equipment and options are specifically designed for your process needs.

PPS bag dump stations offer bag dump design for manual introduction of product into the process stream. By customizing the size and specifications to the installation site and product being processed, PPS can ensure a clean, safe and dust-controlled environment. PPS offers modularly designed bag dumps which promote maximum flexibility and customization to ensure that the correct bag dump station is integrated either into your existing system or is included in a complete system design.

PPS bin vent filters are an effective solution for dust control problems in bins, hoppers, and silos. A bin vent will separate dust particles from the conveying air, either discharging the unwanted dust or reclaiming it for use again.

At Powder Process-Solutions, we specialize in properly designing and configuring storage silos and hoppers specifically for the food, dairy, and nutritional industries. With over 50 years of experience, we are the leaders in solving bulk storage issues including loading, discharging, explosion risk (NFPA), sanitation, environment, product characteristics, and other critical factors. Our bulk storage systems are designed to maximize space, efficiency, and sanitation, while minimizing cost and product contamination. With a wide range of options and professional expertise, we are able to provide the highest quality bulk storage solutions to suit all of your plant’s needs.

Conveys high capacities over longer distances. Smaller convey line diameters. Reduced average convey velocity. Reduced abrasion and particle degradation. Compressed air driven. Suitable for single source multiple destination systems. Mobile sender units and pre-weighing options. Continuous conveying option with two units.

Most common and versatile system for most applications. Blower driven. Simple rotary valve/airlock feeding device. Low pressure convey line with simplified fittings and couplings. Continuous operation. Convey rate adjustable via variable speed drive for dosing. Suitable for single or multiple source-multiple destination systems. Ideal for multiple hopper weigh batching systems.

Can convey high capacities over medium distances. Smaller pipe diameters. Minimum convey velocity. Minimum abrasion and particle degradation. High capacity vacuum pump-driven. Suitable for multiple source/multiple destination systems. Weigh batching and continuous conveying options.
