Powell Valves products

Gate Valves

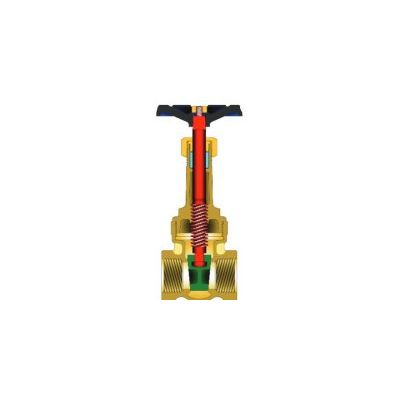

Powell Valves - Bronze Gate Valves

1/4` to 3` Gate Valve (Rising Stem) Class 125-150 (Threaded Bonnet).Figure Numbers: 500 / 514.Threaded Bonnet.Threaded Ends.B62

Powell Valves - Iron Gate Valves

¼` to 4` Clip Gate Valve Class 150 (Threaded Bonnet) Iron-Gate-150.Figure Numbers: 3460 / 3462.Threaded Bonnet.Threaded Ends.A536/A126-B.

Powell Valves - Cast Steel Gate Valves

1` to 42` Gate Valve Class 150 - 1500.Figure Numbers: 1503 / 3003 / 6003 / 9003 / 1303.Bolted Bonnet.Flanged or Butt Weld Ends.Cast Carbon, Stainless or Alloy Steel Materials.Available in all trim configurations.Other sizes available on request

Check Valves

Powell Valves - Bronze Check Valves

¼` to 3` Swing Check Valve Class 125 (Threaded Bonnet). Figure Number: 578.Threaded Bonnet. Threaded Ends B62.

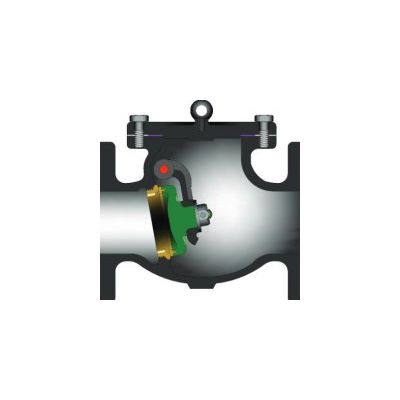

Powell Valves - Iron Check Valves

2` to 24` Swing Check Valve Class 125.Figure Numbers: 559 / 1259 / 559P.Bolted Bonnet.Flat Face Flange Ends.A126-B or 3% Nickel Iron.

Globe Valves

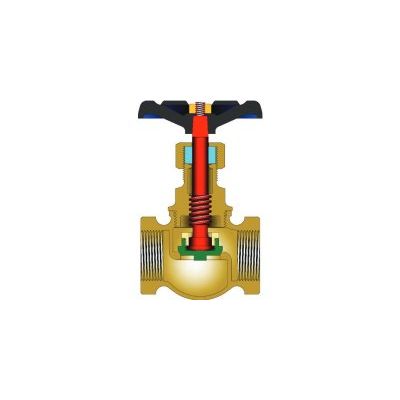

Powell Valves - Bronze Globe Valves

¼` to 3` Globe Valve Class 125 (Threaded Bonnet).Figure Number: 650.Threaded Bonnet.Threaded Ends.B62.

Powell Valves - Iron Globe Valves

2` to 12` Globe Valve Class 125. Figure Number: 241. Bolted Bonnet. Flat Face Flange Ends. A126-B.

Non-Return Valves

Powell Valves - Cast Steel Non-Return Valves

4` to 12` Non-Return Valve (Angle & Upright) Class 300 - 600.Figure Numbers: 3084 / 6084 / 3086 / 6086.Bolted Bonnet.Flanged or Butt Weld Ends.Cast Carbon, Stainless or Alloy Steel Materials.Available in all trim configurations

Ball Valves

Powell Valves - 1 Piece Ball Valves

Design Features; Reduced port, 1/4”~2” (DN8~DN80). W.P. : 1000 WOG (PN63). W.T. : -20°C~200°C (-4°F~392°F). Investment casting. Blow-out proof stem. Silicone Free. Locking device. Thread type: ASME B1.20.1 (NPT). DIN2999 & BS21. ISO7/1 & EN10226.
