Precision Digital Corporation products
Large Display Meters

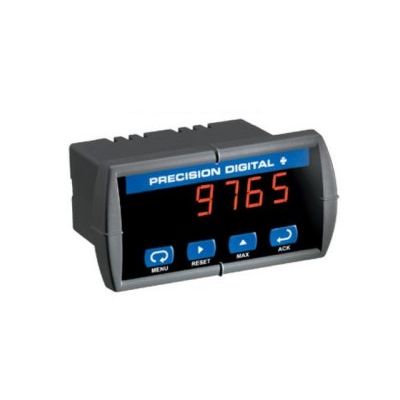

Trident and Trident - Digital Process and Temperature Panel Meter
The Model PD765 Trident digital panel meter is one of the most versatile digital panel meters on the market and will satisfy a wide variety of process applications. The Trident can be field programmed to accept process voltage (0-5V, 1-5V, etc) and current (4-20 mA) inputs, 100 Ohm RTDs, and the four most common thermocouples. It is housed in a shallow-depth, 1/8 DIN enclosure that features a NEMA 4X front panel and convenient mounting hardware. There are two power options for the Trident: 85 to 265 VAC or 12-36 VDC and it can provide 24 VDC to power the transmitter if needed. Programming and setup can be performed with the four front panel pushbuttons, free MeterView software, or using the Copy function.
Field Mounted Products

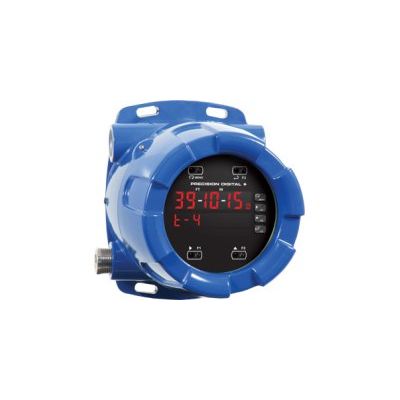

ProtEX-MAX - Feet & Inches Process Meter
The PD8-6001 is an explosion-proof, multi-purpose, easy-to-use digital process meter featuring a bright, highly visible main display with convenient Feet & Inches designations, for use in hazardous areas. It is ideal for level applications requiring a comprehensible display, as it shows feet, inches, and fractions of an inch to the nearest sixteenth of an inch. It accepts current and voltage signals (e.g. 4-20 mA, 0-10 V). Three of the front panel buttons can be custom-programmed for a specific operation. The analog input can be scaled to display the process in two different scales. The main display can indicate level in feet and inches with printed feet and inches designations, and the secondary display could be used to indicate some other scale, such as the volume in gallons or liters. SafeTouch® through-glass buttons, function keys, and Modbus® RS-485 serial communications are just a few of the standard features found on the PD8-6001.
PD697: 6 Digit NEMA 4X
Rate: 4½ digits, Total: 6 digits NEMA 4X & IP67 Impact Resistant Enclosure Operating Temperature: 0 to 65°C 5.6 V drop (7.0 V with backlight) 0.5” (12.7 mm) LCDAnnunciator for pressure switches
The Vigilante II annunciators are compact, panel-space saving, easy to use annunciators available in models to handle either four or eight pressure switches. Each switch can have its own custom message, such as `Low Oil Pressure`, on the Vigilante. When a pressure switch trips, the LED for that input flashes, a horn sounds and a relay transfers. The Vigilante annunciator can even indicate which switch tripped first.4½ Digit Process Panel Meter
The PD691 is a high performance, industrial-grade 4½ digit Strain Gauge Meter. It accepts all the standard strain gauge and load cell signals: 0-30 mV, 0-200 mV, ± 15 mV and ± 100 mV and displays these signals in engineering units on a 4½ digit display. The display also includes an extra zero which may be used to handle numbers up to ±199,99(0).Pressure measurement in a Div 2 area
The pressure transducers in the lower part of the photograph are connected to the PD675 loop-powered meters mounted in the panel. The PD675 is approved for Division 2 locationsPD743 Low-Cost Temperature Meter
Look to the Sabre T temperature meter for the key features you want and don`t worry about getting bogged down in a confusing array of things you don`t need. The Sabre T provides all the utility needed to handle your application with accuracy and simplicity.Local Temperature Display
Say you have an application where you want to display the temperature in 6 different ovens right on the shop floor and also display the data and collect it on your computer back in your office. You can do this with Precision Digital`s Trident meter and MeterView software. We can also provide the enclosure and the engraved labels so you have everything you need! MeterView software even allows you to remotely acknowledge relays.PD865 Modbus Serial Input Meter
The PD865 Snooper Modbus Serial Input Meter can be programmed as a Modbus RTU Master or Slave. As a Master, the Snooper reads a slave device, scales the data from it, displays the result, and operates the internal relays and 4-20 mA output. As a Slave, it is controlled by a master device. The data sent to it by the master is scaled, displayed, and used to operate the relays and 4-20 mA output.Digital Panel Meters

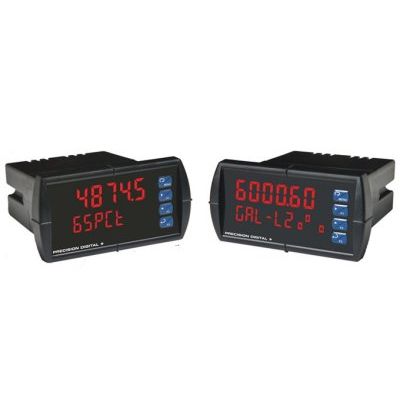

ProVu - Digital Panel Meter
The ProVu meter boasts specifications and functionality that clearly make it one of the most advanced process meters available. Its dual-line 6-digit display (999,999), advanced signal input conditioning, function keys, Modbus RTU serial communications, and optional expansion modules are only a few of the features found on the ProVu PD6000.
