Precision Flow Ltd products

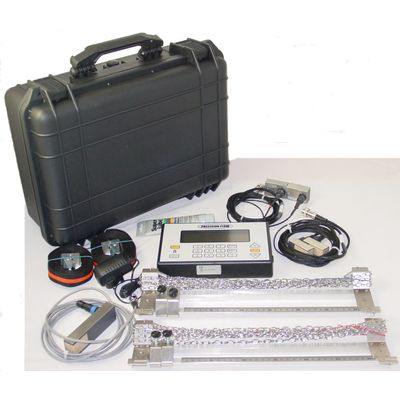

The Precision Flow 190PD is a portable hand held Dual Mode clamp-on ultrasonic flowmeter. The Precision Flow 190PD can operate in both Doppler and Transit time modes, this allows the flow measurement of both dirty and clean fluids and also includes a choice of  analog outputs, thickness gauge option, graphical display of data, data logger,connection to PC, on board help, automatic speed of sound measurement and flow profile correction algorithm.

The Precision Flow 190PDE is a portable hand held Dual Mode clamp-on ultrasonic flowmeter with integrated heat calculator. The Precision Flow 190PDE can operate in both Doppler and Transit time modes, this allows the flow measurement of both dirty and clean fluids. The portable flowmeter also includes a choice of  analog outputs,  graphical display of data, data logger, RS232, USB, on board help, automatic speed of sound measurement and flow profile correction algorithm.

Cost effective fixed clamp-on transit time flowmeters, featuring analog and digital outputs, data logger with graphical display of data,  RS232, USB, on board help, automatic speed of sound measurement and flow profile correction algorithm.

Cost effective fixed clamp-on transit time flowmeters, featuring analog and digital outputs, data logger with graphical display of data,  RS232, USB, on board help, automatic speed of sound measurement and flow profile correction algorithm.

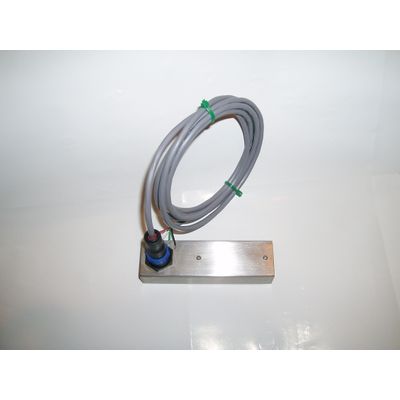

The Precision Flow 190D sensor probe is a self contained clamp on Doppler flowmeter designed for liquid flow measurement applications, in particular where dirty or aerated waste water flow conditions prevail and any invasion of the piping system could cause inline meters problems. It is also a very economical solution to flow measurement in larger pipe applications. Precision Flow’s experience in ultrasonic technology ensures that the 190D is a high precision instrument, which can be configured and operational within minutes.

The world`s most cost effective hand held microprocessor based clamp-on flowmeter, featuring a choice of analog outputs, thickness gauge option, graphical display of data, data logger, RS232, USB, on board help, automatic speed of sound measurement and flow profile correction algorithm.

Using a similar AZW correlation system to the Full 190P.  The 190P LT offers a clamp-on flow meter for pipes below 300mm, featuring a choice of analog outputs,  data logger, RS232,  automatic speed of sound measurement and flow profile correction algorithm.
