Precision Subsea Electronics Ltd. products

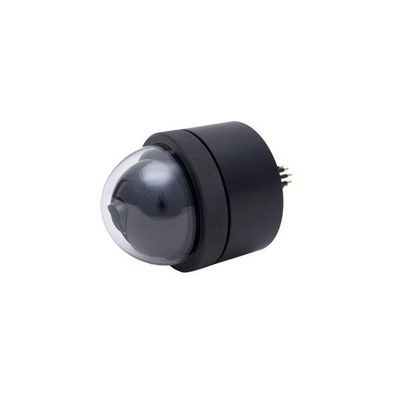

The Sphere Camera is our best selling product, it is compact, durable and reliable. These high specification subsea cameras offer continuous rotational control on both horizontal and vertical axes allowing unrestricted views within their environment.

These cameras provide high quality 360 degree viewing with x3 digital zoom and give sub-sea water temperature and depth of the camera. Our original subsea pan tilt camera, this camera is available as High Resolution Analog or HD 1080p video output as required, control is typically Pelco D RS 485 but can be modified according to customer requirements. power supply is 12 or 24 Volt dc.

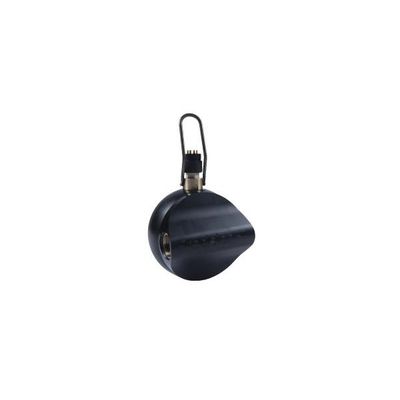

High resolution colour or monochrome ccd sensor, rated to 500 meters water depth and fitted with industry standard sub-sea connector. These cameras provide quality, wide angle viewing of cage feeding conditions. More technical features on customer request.

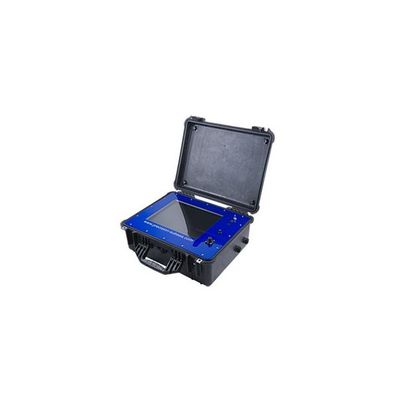

Our portable camera systems come in a range of options, but all are housed in tough waterproof Peli case and have a minimum runtime of over 8 hours between battery charges. The standard system for fish farm use comes with a colour pan-tilt Sphere camera and 30 metres of subsea cable. High quality colour video pictures are displayed on the 15 inch flatscreen colour monitor and the video text overlay shows the camera depth and water temperature.

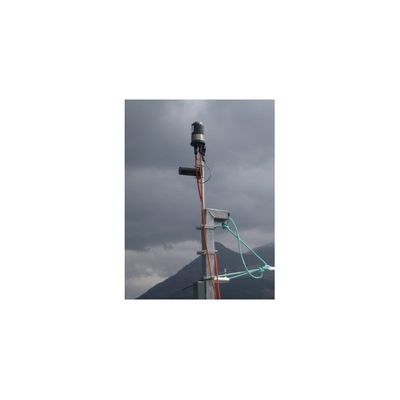

Developed and tested for the toughest site conditions to offer remotely operated camera viewing of sites above and below water as required. Versatile and easy to install enabling existing wired camera systems to be converted for re-use in wireless format saving on time and valuable asset costs. System range typically 1Km with options up to 10Km on request. Additional Features such as multiple console control and multiple cameras per cage can be included to suit customer requirements.

High quality, water-proof, 12V DC camera winch designed to move the camera up or down in the water. Precision motor drive and manufactured in Stainless steel and Delrin. The winch connects directly to our wireless camera radio pods enabling remote control from the camera system control console.

Heavy duty Marine specification motors and gearboxes tested for direct hauling of nets and ballast weights up to 750Kg. These units can be configured to operate from 230Volt single phase or 230v three phase power grids. Working together with users in the Scottish Aquaculture sector our latest units have been tailor made to provide easy transportation, installation and operation on site.
