PRO-DIG, LLC products

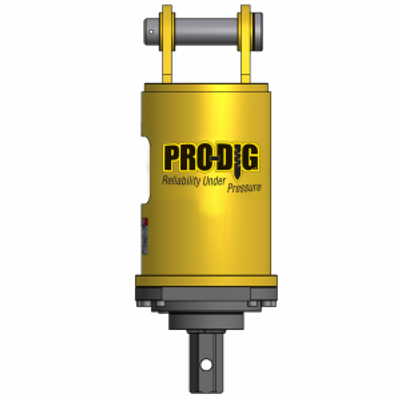

Motor Mount: SAE `A` 2 Bolt.Motor: 160cc.Flow Range:5-16 GPM (US).Max. Pressure: 2500 PSI.Unit Weight:  132lbs.Output Shafts:2` Hex.

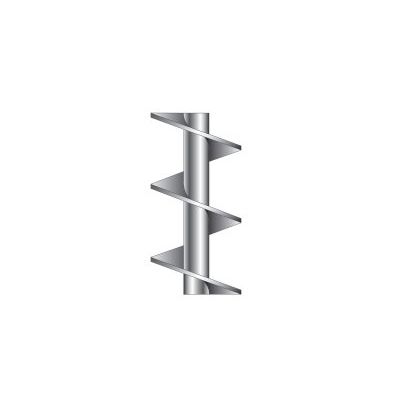

All flights are manufactured to meet your requirements. Flight segments are available up to 1.2m and 32mm thick.

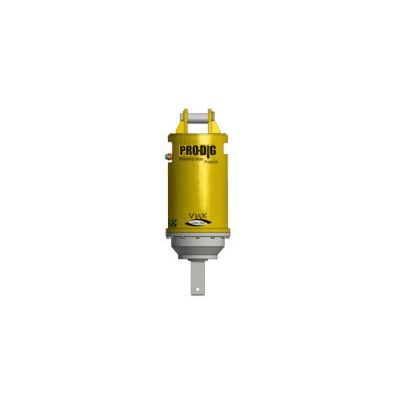

Pro-Dig “V” Series are our most productive drives. The unit automatically senses the ground conditions and delivers the optimum torque and speed throughout the digging cycle. Pro-Dig “V” Series are available in two options: Standard Auto Mode giving infinitely variable Torques and Speeds. Standard Auto Mode with Manual Operator Override. This option incorporates a cab mounted switch where by the operator can override the auto setting and switch to high Torque/Low Speed Mode. This can be particularly useful in the installation of anchors.

Pro-Dig “V” Series are our most productive drives. The unit automatically senses the ground conditions and delivers the optimum torque and speed throughout the digging cycle.Pro-Dig “V” Series are available in two options:Standard Auto Mode giving infinitely variable Torques and Speeds.Standard Auto Mode with Manual Operator Override. This option incorporates a cab mounted switch where by the operator can override the auto setting and switch to high Torque/Low Speed Mode. This can be particularly useful in the installation of anchors.

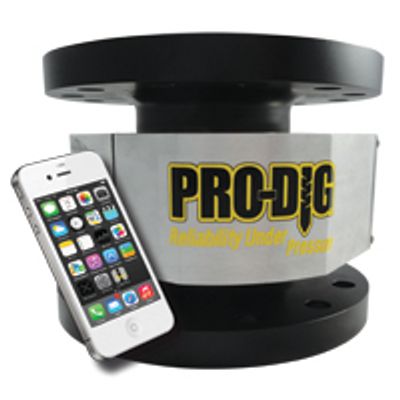

“A Quantum leap in Precise Torque and Angle Data Measurement”. State Of The Art WiFi and Wireless Technology. Highly Accurate Torque Monitoring Capabilities (+/-0.3%). Any Direction Angle & Depth Monitoring. Extremely Rugged Design. Data Can Be Emailed to Anyone. Multiple WiFi Smart Devices Can Be Used To View One Drive. No Mechanical Parts. We apologize the video is still using the PDA, it is the same concept.

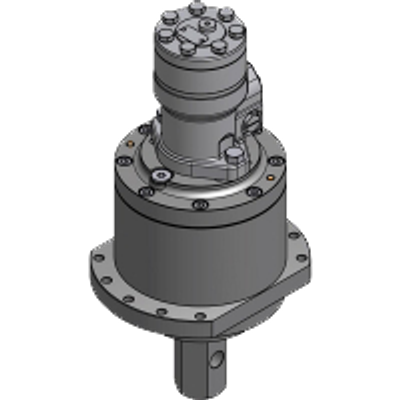

Features: Light Portable Planetary Gearbox. Premium Quality Parker Hannifin Hydraulic Motor. High Quality Taper Roller Bearings. Single Piece Shaft/Gear Carrier. Lifetime Shaft Pullout Warranty. Load Control Valve Available for Screw Pile Applications.

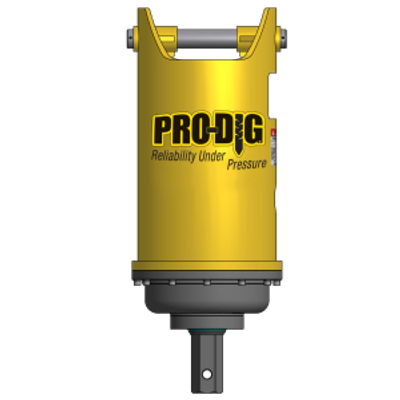

The X20K Single Speed Drivehead from Pro-Dig USA is engineered for demanding drilling applications, offering robust performance with its heavy-duty planetary gearbox. Designed in compliance with SAE `CC` 4-bolt motor mounts and powered by a 500cc bi-directional speed hydraulic motor, it operates efficiently within a flow range of 10-40 GPM and can withstand maximum pressures up to 3000 PSI. The drivehead features a 3-inch hex output shaft and weighs 571 lbs, making it suitable for rigorous tasks. Integrated with premium Parker Hannifin hydraulic motors and high-quality taper roller bearings on its single-piece shaft/gear carrier, it ensures high radial load capability and durability. Additionally, a load control valve is available for precision in screw pile applications, supported by a lifetime shaft pull-out warranty. This system is field serviceable and proudly manufactured, offering reliable performance throughout its operational life.

The Pro-Dig T5K7C Two Speed Drivehead, part of the T-Series, is engineered to enhance drilling productivity with its unique on-the-fly shifting capability. The drive head features a robust heavy-duty planetary gearbox and a high-quality two-speed hydraulic motor manufactured in the US. Operators can toggle between manual switching or opt for an auto kickdown mode, where the system intelligently shifts from high-speed, low-torque to high-torque, low-speed in response to changing ground conditions. This adaptability is bolstered by adjustable kickdown pressure settings. The unit's construction includes a single-piece shaft/gear carrier with taper roller bearings for elevated radial load capacity. Rated with a flow range of 13-35 GPM and a maximum pressure of 2500 PSI, it promises long service life, dependable performance, and is entirely field serviceable. This drive head is designed not just for superior outputs conferred by its two-speed mechanisms but also for durability and cost-effectiveness over its lifetime.
