Process Pump Sales Inc products

Pump series BT and BTH are low speed gear pumps for transfering medium and high viscosity fluids, provided they have certain minimum amount of lubricating property, do not contain any solids and are chemically compatable with the materials of construction.

The direct spring, sliding piston Pressure Relief Valve SPV/SPVF is intended for inline mounting and is suitable to safeguard low pressure hydraulic circuits up to 20 (30) bars. The pipe connection is to be effected either by SAE-Mounting Surfaces (3000 psi) or by Whitworth Pipe Threads ”G“.

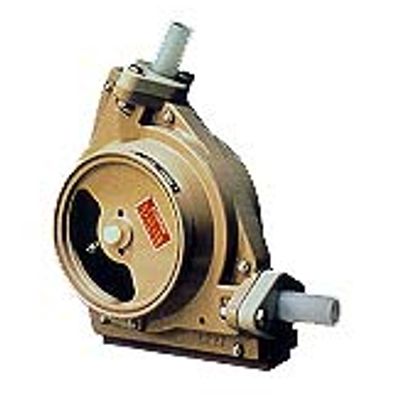

The PCM Delasco Z Series of pumps are equipped with an injection-molded tube in various elastomer materials. The patented pump tube is designed with spine that improves occlusion and extends tube life; removable flange on one side of the tube allows easy replacement and maintenance. The Z pumps are intended to transfer abrasive, viscous, corrosive, basic and delicate products, up to a maximum pressure of 30 psi.

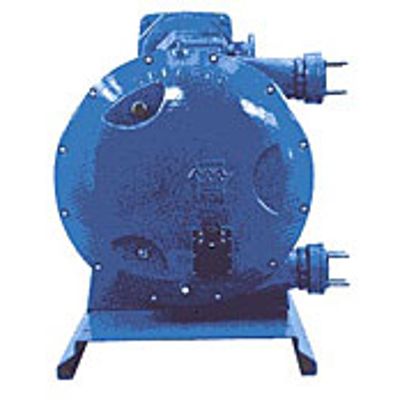

The PCM Delasco DL Series of pumps is equipped with hose-guides in addition to the rollers, which combines several advantages: the roller rolls on the hose without damaging it, the hose-guide increases the squeezed surface area, as well as enabling the roller to act on the hose more gradually. This roller/hose-guide combination lengthens hose life, and requires lower installed power as well as a smaller quantity of oil.

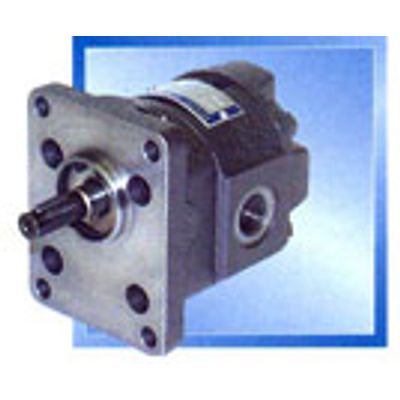

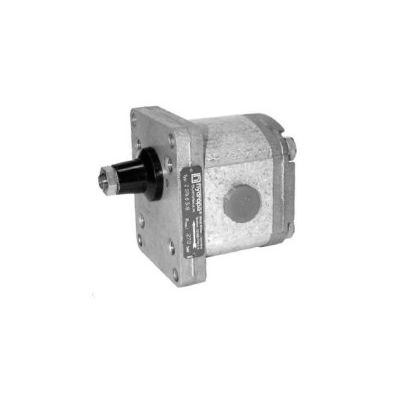

Design: external gear pump, Mounting: Flange mounting with centering diameter, Pipe connection: threaded connection, Sense of rotation: anti-clockwise or clockwise, Housing: Aluminium, Bearing: Teflon-plain bearing, Mounting position: any.

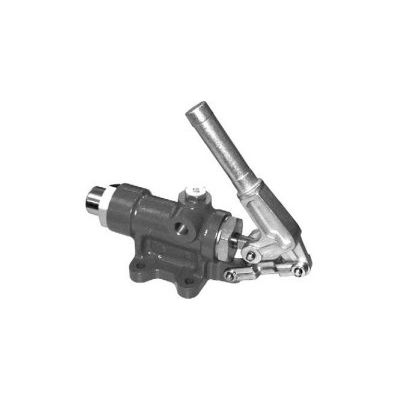

18 up to 111 ccm/double stroke, Working pressures up to 460 bar, with or without discharge valve

Tank capacity 3, 6 or 10 litres, 18 up to 111 ccm/double stroke, Working pressures up to 460 bar.

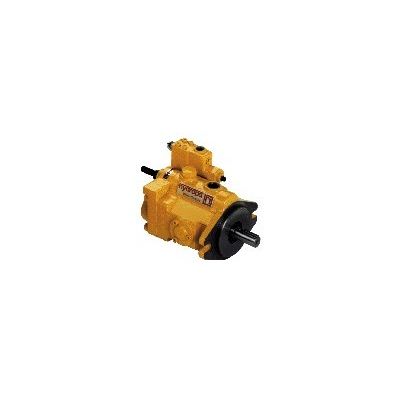

For quiet operation and high productivity, specify PV series pressure compensated, variable volume axial piston pumps. Designed right and built tough, they provide reliable fluid power…even under severe conditions! You gain more efficient machine operation, upgrade equipment performance and reduce maintenance easily with these quiet, efficient pumps. Because they are interchangable with other popular pumps, you can use the PV pumps to replace existing older pumps which are not functioning to your satisfaction.

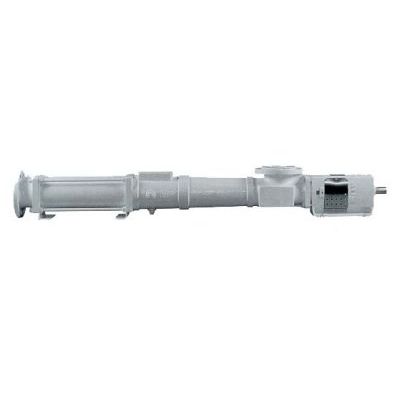

As the original inventor of the progressive cavity pump technology in 1930, PCM pump Series I & ID are available in 316L stainless steel or GG25 cast iron body, rotor in hard chrome plated steel, stainless steel or hardened steel, single or double mechanical seal, and a wide range of stators from -20 to 250 deg F in various materials, standard ANSI or ISO connections. They are used in all branches of industry where the products are viscous, abrasive, heterogeneous, delicate and easily emulsified. Fields of application include: chemical and petrochemical; sewage treatment; paper industry; oil; mining; ceramics; food and pharmaceutical; sugar refineries, etc.

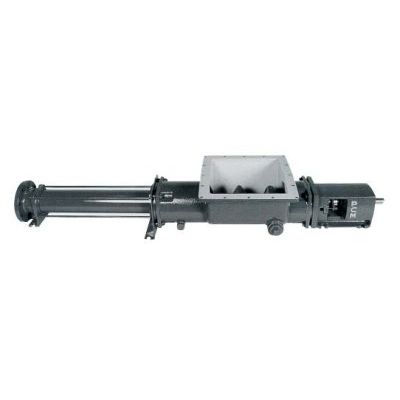

The PCM Series IVA progressive cavity pumps are specially designed to handle heterogeneous and highly viscous products up to 1,000,000 cps. The IVA series is equipped with one or two force feed screws and a wide throat inlet, and is available in 316L stainless steel or GG25 cast iron, rotor in hard chrome plated steel, stainless steel or hardened steel, single or double mechanical seal, and a wide range of stators from -20 to 250 deg F in various materials. Standard ANSI or ISO discharge connections. Fields of application include: chemical and petrochemical; sewage treatment; paper industry; oil; mining; ceramics; food and pharmaceutical; sugar refineries, etc.
