Progress Tank products

TANK: 200 gallons (757 liters) stainless steel tank, double wall design, single compartment, 16” (406mm) manhole with 10” (254mm) fill opening with emergency pressure / vacuum vents. CHASSIS: The Refuel/Defuel Cart undercarriage utilizes a towable two axle, four wheeled rolling chassis design that is self-supported on its own rigid or non-suspension axle mount configuration suitable for ramp usage at speeds up to 15 mph. It is designed with a steerable front tow bar arrangement so that it is easily towed or tugged with normal aircraft ramp equipment. Minimum steering angle for tow bar is +/- 40 degrees. The tow bar includes a mechanism to hold it in the upright position so it is not a trip hazard when not in use.

OPTIONS:The above listed items are for a standard Garsite units. All units can be customized to fit your specific requirements. Please contact your Garsite representative for a complete list of available options and configurations. ASME ‘U’ and ‘R’ Certified Facility.

CHASSIS: RUNNING GEAR: Heavy-duty four wheel trailer. Fully rated suspension (for towing up to 35 MPH). Ackerman style steering axle. FEATURES: Fully self-contained and maintenance-free pressure control system (no external air source, electrical source, or nitrogen source required). All aluminum deck and hose reel (for low maintenance). Fully integrated solar powered system; includes battery for the interlock system.

Garsite has a new 500-gallon Towable Avgas Bowser in stock and available for immediate delivery. FEATURES: Four wheel steerable undercarriage with tongue brake, 500-gallon (1,890 Liter) stainless steel tank, bottom load with high-level shutoff, canister style filter vessel and optional feature of cellular modem. Fully integrated solar-powered system; includes battery for the interlock system.

Our universal spill cart is your solution to large aviation fuel/gas/oil/fluid spill emergency response situations. The trailer comes complete with the necessary DOT/OSHA approved fluid storage containers, absorbent materials (pads, pillows, socks), etc.

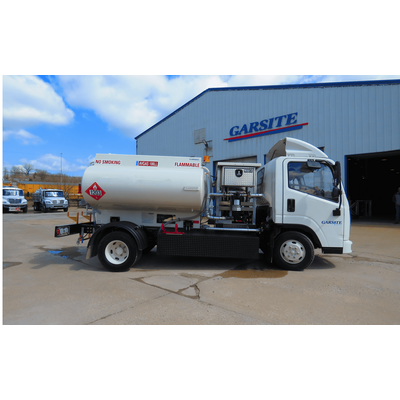

Avgas Refueler with customizable U.S. gallon aluminum tank fully baffled, single compartment, overturn protection, 20” manhole with 10” fill, and pressure vacuum vents. Chassis – Conventional cab-chassis fully electric, automatic transmission. Diesel and cab-over models are available. (Detailed specifications available upon request.)

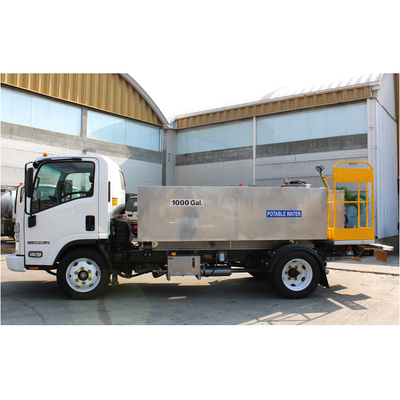

CHASSIS: Built on Isuzu NPR HD 4×2 chassis (Ford F series optional). FEATURES: The potable water truck options include gas engine, automatic transmission with diesel engine optional, fire suppression system, 1,000 Gallon (3,785 Liter) tank constructed from 316 SS, cold weather package, hydraulically driven 2″ pacer pump, Fillrite mechanical meter and register with digital meter optional, fixed platform with hydraulic platform for widebody servicing optional and fill hose.

FEATURES: The potable water cart options include a four wheel cart with foldable tongue, 300 gallon (1,135 Liter) tank constructed from 316SS
cold weather package, crash bars, Flojet 12VDC pump kit, Fillrite mechanical meter and register with a digital meter as optional, and fill hose
