ProQuip, Inc. products

Rugged cast iron housing resists shock loads, maintains accurate gear alignment. High efficiency helical gearing per AGMA/ASME standards. Gearing is finished ground, heat treated and hardened to 58-62 Rockwell C. Hollow bore and solid output shaft designs supported by heavy duty bearings provides rigid, accurate support for the overhung mixer shaft. Heavy-duty output shaft bearings carry radial and axial loads generated by mixing impeller. L-10 bearing lives in excess of 100,000 hours. Interlocking 2-piece seal design around output shaft provides added safety against oil leakage. NEMA or IEC motor flexibly coupled to gearbo.

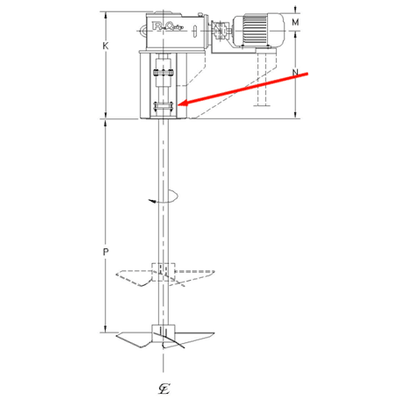

Low profile, right angle design. Rugged cast iron housing resists shock loads, maintains accurate gear alignment. High efficiency helical gearing per AGMA/ASME standards. Gearing is finished ground, heat treated and hardened to 58-62 Rockwell C. Hollow bore and solid output shaft designs supported by heavy duty bearings provide rigid, accurate support for the overhung mixer shaft. Heavy-duty output shaft bearings carry radial and axial loads generated by mixing impeller. L-10 bearing lives in excess of 100,000 hours. Interlocking 2-piece seal design around output shaft provides added safety against oil leakage. NEMA or IEC motor flexibly coupled to gearbox

Rugged cast iron housing resists shock loads, maintains accurate gear alignment. Quiet gearing runs at less than 85 dba. Hollow quill design for easy installation of shaft and precise alignment. Heavy duty output shaft bearings with L-10 lives in excess of 70,000 hours. Dry-well dam around the output shaft provides a positive barrier against oil leakage. NEMA C-face motors flexibly coupled to gearbox.

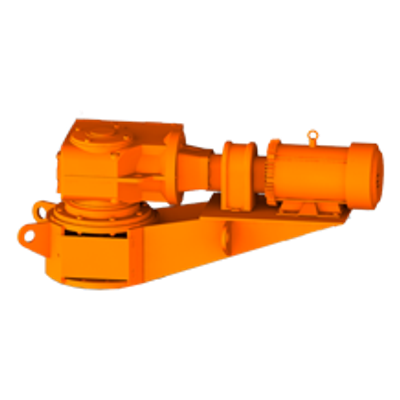

ProQuip offers a full range of belt drive and gear driven side entry tank agitators for demanding mixing applications including digesters, bulk storage, and asphalt.

Small agitators from ProQuip deliver the robust performance of our larger, industrial-grade tank agitators in a compact design that is easy to mount. Tailored to meet the unique demands of your process, our small agitators offer a variety of customization options including a selection of motors, mounts, and impellers to meet your specific needs. Despite their small size, ProQuip small agitators are powered by motors up to 5 HP and feature durable cast iron housings for long-lasting durability. Whether you require gentle mixing or vigorous agitation, ProQuip small agitators are up to the task, providing efficient and consistent results across many applications.

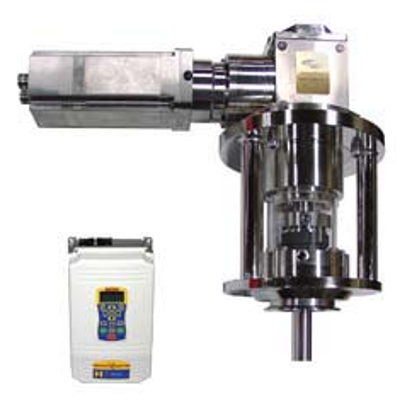

Minimum footprint with integral tri-clamp mounting and stainless steel, light-weight servo motor and integral stainless steel gearbox.

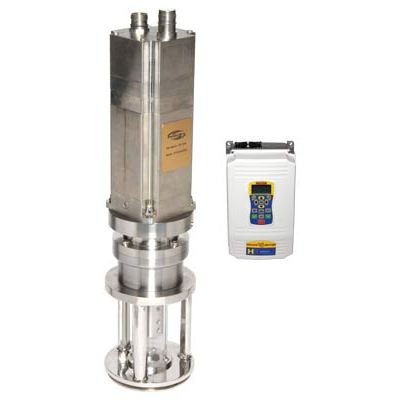

Minimum footprint with integral tri-clamp mounting and stainless steel, light-weight servo motor.

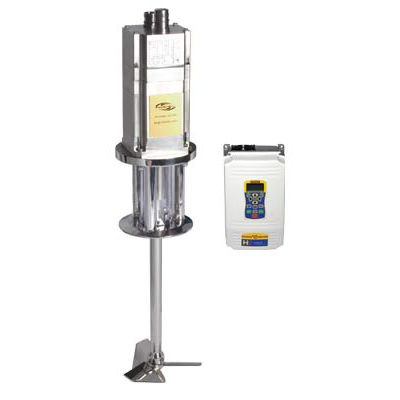

Minimum footprint with integral tri-clamp mounting and stainless steel, light-weight servo motor and integral planetary gearbox.

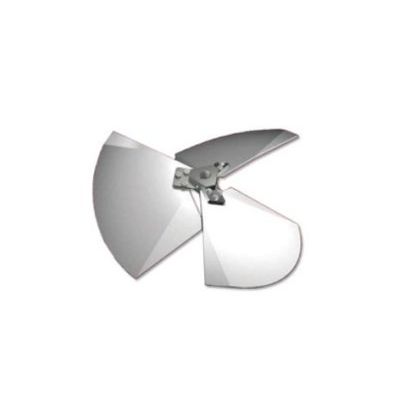

The ProQuip axial flow turbine impeller has a classic 45° pitched blade design that provides a desirable balance of shear and flow.

ProQuip offers a complete range of tank agitator seals including vapor seals, mechanical seals and stuffing boxes.
