Protechnika products

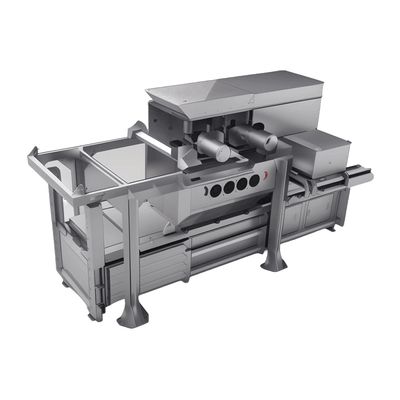

Protechnika’s horizontal channel balers are used for in the compaction of large-volume raw materials. In particular are dedicated for use in the municipal and recycling industries. This baler is available in a variety of applications and accessories additional equipment, which allows the device to be fully integrated into functioning processes. Perforator manufactured by Protechnik is used for pre-shredding of various types of materials, which at a further stage of the recycling process can be baled or compressed e.g. in stationary presses. This perforator increases efficiency in the baling process by pre-crushing the waste (e.g. PET bottles) or in the version with an upper milling shaft the perforator becomes a shredder (e.g. cardboard waste) destroying the material irretrievably.

Reducing the quantity and volume of solid waste is a key issue in with regard to waste management. The innovative technology densification technology, which is a patented solution from Protechnika, is the Europe’s only solution for low-cost compaction of the fraction of supernatant fraction, as well as whitewater fraction with simultaneous possibility of management of dewatered sewage sludge, the management of which management is also problematic.

These crushers are dedicated to crushing large, hard and difficult to soft he components include dinthemini structure and tires Automotive. The direct connection of the rotor to the gearbox makes it possible to change knives quickly. The machines are characterized by slow speed, low noise level and high torque. The machines have mechanical as well as electrical protection against overload protection. An automatic reverse rotation system further protects the blades from damage.

These crushers are designed to crush thick-walled, hard materials, such as all kinds of slops, thick-walled plastic pipes and others. The crushers are also indispensable for crushing large-sized containers, baskets, household appliances, etc. Ideally They are suitable for shredding all plastic waste as well as rubber and wood. The device is characterized by high efficiency, low noise level and high torque.

Chain feeder – Redler is a device designed for transporting RDF and other bulk, dry and non-sharp with similar physical and chemical properties. Modular construction – possibility of integration. Energy efficiency – used wear-resistant plastics in many planes, which significantly reduces energy consumption electricity. High efficiency – selection of appropriate dimensions and linear speed allows to achieve 100% efficiency. Equipment while maintaining the highest quality of the transported medium.

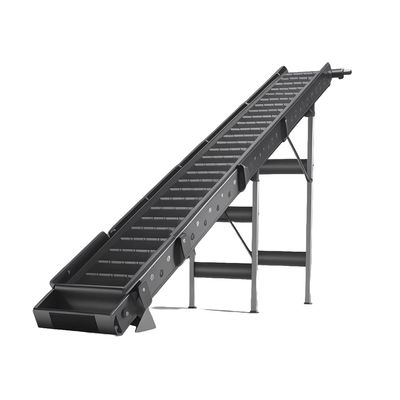

Belt feeders are ideal for handling materials with large and varied particle sizes and are capable of handling a wide range of bulk materials from very fine to large lump sizes. Belt conveyors can be configured to fit almost any application. They can transport material horizontally, on an incline or both combinations. They require less power to operate than other types of conveyors.

Bag bursting machine Protechnika’s bag ripers are used as the first element of technological lines. These devices are used for tearing, emptying of bags and transferring their contents by conveyor belt. The design allows tearing and emptying bags with waste of different sizes, without disturbing their contents. Processed in this way, the unshredded materials have dimensions suitable for further further sorting process. The ripper allows for a wide application possibilities at the design and installation stage.

A ballistic separator is a device used on the lines of a technological lines in a waste sorting plant to separate waste in terms of in terms of their structure and morphology. The separator is placed on legs with adjustable. The housing includes an inspection door. In interior of the chamber screening segments are installed. The device is driven by geared motors powered by electric motors. The material intended for separation is delivered to the chamber separator by means of a belt conveyor (not included in the separator), from which it enters the separation zone.

Protechnika’s air separators are used to separate the light fraction from the heavy fraction during waste segregation in the process of recycling. These devices, thanks to their design and related efficiency, they very often replace manual sorting and contribute contribute to reducing the cost of the segregation process. Separator is designed to work with such material as municipal waste mixed, selectively collected, RDF, construction waste, biomass and industrial waste such as rubber, plastics and others.

The disk sieve (disk sifter) is used for screening municipal waste in sorting lines. It is characterized by high efficiency, precise sifting size setting, compact design and economical operation. Main features: high screening accuracy, precise setting of screening size due to interchangeable disk system, adjustable screening dynamics, small length compared to other systems, compact design allows use of standard land and sea transport, low installed electrical power (from 5.5 kW with SDH4000 screen), interchangeable disk system when changing screening size, e.g. from 80.0 mm to 60 mm or 40.0 mm, abrasion-resistant working discs; proven heavy-duty type screen design (SDH version), automatic lubrication system, lighting inside the working chamber and inspection windows (in SDH version) for faster inspection evaluation from outside.
