Pumpport products
Diaphragm Pumps - Electric Motor Diaphragm Pumps
Pumpport - Electric Diaphragm Pumps
PP20 Electric Diaphragm Pump Technical Specifications: Max. Working pressure : 4 bar. Voltage: 380 volts 50 hz. Engine power: 5.5 kW. Flow rate in one stroke : 2.24 lt/stroke. Max. Head : 40 mss. Dry suction depth: 5 meters. Particle permeability: 6 mm. Capacity: 21 m3/h. Reducer speed: 78 RPM. Max. Operating temperature : 100°c. Input : 2 inches. Output : 2 inches.
Diaphragm Pumps - Plastic Diaphragm Pumps
Pumpport - Plastic Electric Diaphragm Pumps
PP05 Electric Diaphragm Pump Technical Specifications: Max. Working pressure : 2 bar. Voltage: 380/220 volts 50 hz. Engine power: 0.37 kW. Flow rate in one stroke : 0.2 l/stroke. Max. Head : 20 mss. Dry suction depth: 4 meters. Particle permeability: 3 mm. Capacity: 1.48 m3/h. Reducer speed: 60 RPM. Max. Operating temperature : 100°c. Input : 3/4 inch. Output : 3/4 inch.
Pumpport - Plastic Body Electric Diaphragm Pump
PP10 Electric Diaphragm Pump Technical Specifications: Max. Working pressure : 2 bar. Voltage: 380/220 volts 50 hz. Engine power: 0.55 kW. Flow rate in one stroke : 0.55 lt/stroke. Max. Head : 20 mss. Dry suction depth: 4 meters. Particle permeability: 4 mm. Capacity: 4 m3/h. Reducer speed: 60 RPM. Max. Operating temperature : 100°c. Input : 1 inch. Output : 1 inch.
Diaphragm Pumps - High Pressure Diaphragm Pumps
Pumpport - High Pressure Diaphragm Pumps
PP100 High Pressure Pump Technical Specifications: Max. Capacity : 75 lt/min. Liquid Input-Output: 1″. Max. Liquid Outlet Pressure : 14 bar. Body Material: Aluminum, Cast Iron, Cast Stainless. Air Inlet Size: ½”. Solid particle Size: 4mm. Dry Suction Depth: 6m. Air Pressure Max. : 7 bars. Diaphragm Options: Neoprene, Buna-N. Ball Options: Neoprene, Buna-N. Ball Slot Options: Neoprene, Buna-N.
Pumpport - High Pressure Pump
PP150 High Pressure Pump Technical Specifications: Max. Capacity : 200 lt/min. Liquid Input-Output : 1½”. Max. Liquid Outlet Pressure : 14 bar. Body Material: Aluminum, Cast Iron, Cast Stainless. Air Inlet Size: 3/4″. Solid particle Size: 6mm. Dry Suction Depth: 6m. Air Pressure Max. : 7 bars. Diaphragm Options: Neoprene, Buna-N. Ball Options: Neoprene, Buna-N. Ball Slot Options: Neoprene, Buna-N.
Diaphragm Pumps- Hygienic Diaphragm Pumps

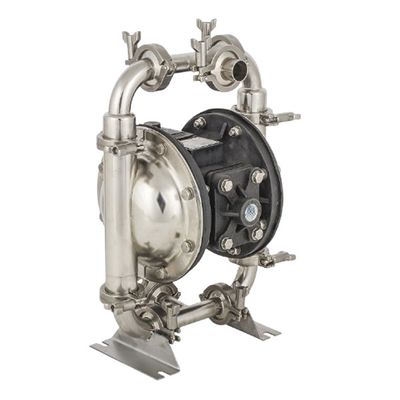

Pumpport - Hygienic Diaphragm Pump
Connection Input-Output: 1″ (25mm). Capacity Range: 0 – 160 lt/min. Pressing Distance: 0 – 84 ms. Max. Suction Height: 6 – 8 m. Max. Solid Part Size: 4 mm. Pump Body Materials: 316L Stainless Steel. Pump Inner Materials: Teflon, Santoprene, EPDM.
Diaphragm Pumps - Metal Diaphragm Pumps
Pumpport - Metallic Diaphragm Pump
PP 05 Y Metallic Body Pump Technical Specifications: Max. Capacity : 55 lt/min. Liquid Input-Output : 3/4″. Max. Liquid Outlet Pressure: 7 bar. Body Material: Aluminum, Cast, Cast Stainless. Air Inlet Size: 1/4″. Solid particle Size: 3 mm. Dry Suction Depth: 6 mm. Air Pressure Max. : 7 bars. Diaphragm Options: Santoprene, Neoprene, Buna-N, EPDM, Teflon, Viton. Ball Options: Santoprene, Neoprene, Buna-N, EPDM, Teflon, Viton. Ball Housing Options: Santoprene, Neoprene, Buna-N, EPDM, Teflon, Viton.
Industrial Pumps - Blower
Pumpport - 9” Glass Reinforced Disc Type Diffusers
Glass reinforced disc type diffusers with high oxygen transfer efficiency, low installation cost, integrated check valve and maximum resistance to high temperature, various chemicals and UV rays. It is 9” in size and has an air flow of 10m3/h. The body is made of Polypropylene, the diaphragms are made of EPDM.

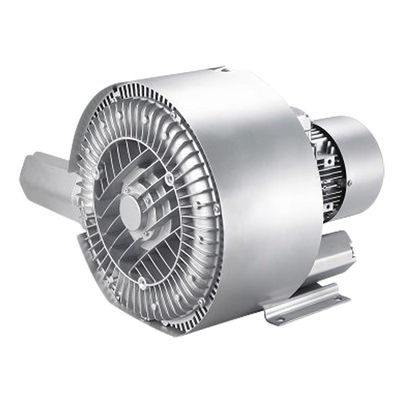

Pumpport - Double Stage Blowers
Blower blades operate without contacting the pump body and each other. Therefore, the blades do not need to be lubricated. The system`s operation with only air or gas ensures that the environment remains clean. Therefore, the blower provides a great advantage in chemical applications, aquaculture, pneumatic conveying applications, mining and purification industries that require a clean gas flow. Double stage blowers vary between 85-900 m3/h flow rate and 0-670 mbar pressure range.
Pumpport - Single Stage Blowers
Blower blades operate without contacting the pump body and each other. Therefore, the blades do not need to be lubricated. The system`s operation with only air or gas ensures that the environment remains clean. Therefore, the blower provides a great advantage in chemical applications, aquaculture, pneumatic conveying applications, mining and purification industries that require a clean gas flow. Single stage blowers vary between 55-1370 m3/h flow rate and 0-460 mbar pressure range.
