Pure Air Systems products

Pureair” Horizontal laminar airflow ideal for Microbiological manipulations, work with bio-assays, sterility testing and research work; Vial filling and bunging operations in parenteral units and general dry processing work in semi –conductor manufacture and Tissue culture work.

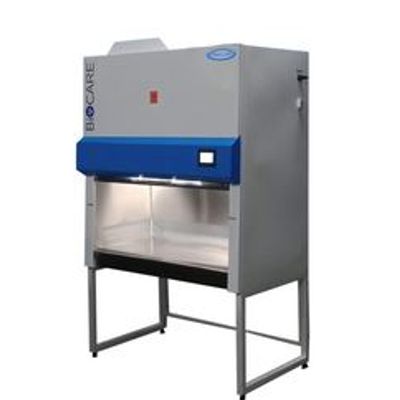

“Pureair” Biosafety Cabinet Class II Type A1 is designed for protection of operator, product and environment from pathogenic agents and microorganisms transmitted in respiratory way and also for creation of a bacterial dust free air environment. It has a common plenum from which 30% of air is exhausted, and 70% re-circulated to the work area as the downflow. Type A cabinets exhaust air directly back to the laboratory, and they may contain positive pressure contaminated plenums. When toxic chemicals must be employed as an adjunct to microbiological processes, these cabinets should not be used. Exhaust HEPA filtration only removes airborne aerosols including biohazards, and not chemical fumes.

Pureair” Fume Exhaust Hood ( Constant volume type) is fitted with a movable front sash and an interior baffle. The sash may be fully opened to accommodate apparatus within the fume hood, while baffle directs exhaust air along specific flow pattern within the enclosure. The constant volume type generally operates at constant exhaust volume with the total exhaust air entering the hood through the sash opening. Closing the sash increases the speed of the air through the sash opening, so that high velocities are to be expected with the sash in the near closed positions.

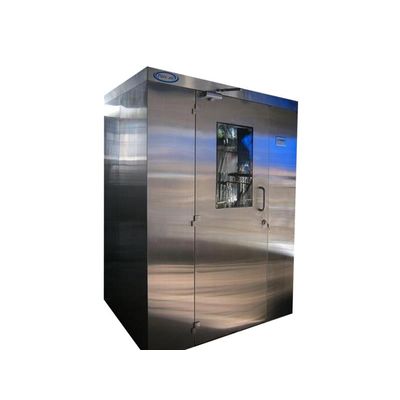

Air shower works as partial clean equipment installed at the partition between the clean room and non-clean rooms to shower the personnel or matters before entering the clean area. This unit helps to remove dust effectively and maintains the normal working status. All our Air Showers are assembled and tested directly in the factory and supplied after hard quality testing. These units are completely microprocessor controlled self contained unit and equipped with air filtration systems, blowers, motors, controls, inter locking doors, lighting and electrical panel. Although we offer air showers in varies sizes and packages, we also provide customized designs meeting your special needs.

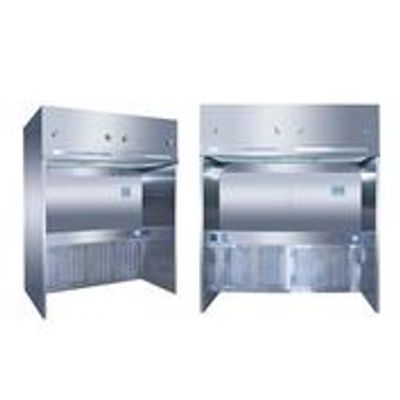

Pureair” Powder Containment Dispensing/Sampling booths, which are ideal to control the hazardous emissions of powder dust during powder dispensing/Sampling processes. The booth controls the emission of powders without any risk to the operator and product. The downdraught of HEPA filtered air from the booth prevents airborne dusts caused by handling operation away from the operator’s breathing zone. The air is forced downwards and is extracted at low level into the booth’s filtration system. These powder sampling booths are available in Stainless Steel, GI Powder coated with epoxy PU coated finish. They are of international quality and performance standard offering efficient services.

Pureair” Static Pass box unit for easy access or passage of materials the between clean room and outer dust areas. It is Essential for maximum protection against outer contamination when objects are passed into or out of the clean room. Available in Mechanical Interlocking & Electrical Interlocking Arrangement Standard size available – 2’ x 2’ x 2’

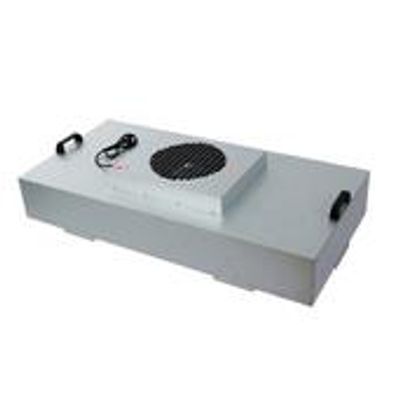

Pureair” Fan Filter Units are self-contained, motorized Supply Air Modules equipped with either HEPA or ULPA filters. Our FFU’s can be used in either horizontal or vertical flow positions, wherever clean air is needed. The clean air fan filter module includes a fan shroud, a fan/motor mount, a centrifugal fan, a fan motor, and a HEPA filter, the fan shroud having an air inlet and two inclined ends, the fan/motor mounted below the air inlet on the fan/motor mount, the centrifugal fan blowing air radially towards the fan shroud, the HEPA filter constituting the air outlet. Fan Filter unit is generally used to supply purified air to the clean room for manufacturing semiconductor, liquid crystal, etc. The installation space is the system ceiling grid. For a large clean room, the number of required FFU is from several hundred to several thousands.

Pureair” make Cleanroom Garment storage cabinet made for a controlled environment chamber for optimal storage of clean room garments, tools, wipes, process equipment, and other materials.

UV sterilizer chambers are designed to sterilize small objects such as, personal protection kits, medical kits, surgical tools etc before being carried into a hospital or diagnostic labs or micro biology labs etc. These small objects are easily sterilized when exposed to UVC radiation for about 30 minutes inside UV sterilizer chambers.

Pureair” Designed for Ambient clean down these modules are available in a variety of versions, ceiling suspended, table top, wall mounted and floor standing Capacities range from 150 CFM to 1500 CFM. While the larger modules are intended for use in production areas, the smaller and more compact units are designed to reduce considerably the over all biologic and non biologic airborne particulate activity level. Especially in microbiological laboratories, intensive care area in hospitals, conference rooms and homes with convalescents.
