UV-plant PURION 400 can be equipped with a polished stainless steel reactor. PURION 400 can be used to disinfect drinking water up to a flow rate of 300 l/h and for a transmission of at least 90% per cm. The used uv lamps are characterized by a long durability and a high degree of efficiency respecting to disinfection and energy consumption. The power supply can be carried out with 230 V/50 Hz or optionally 12 V DC, 24 V DC or 110 V AC. The compact construction design enables an easy replacement of the uv lamp at the end of their useful life. You don`t need any tool. Also replacement and cleaning of the quartz pipe can be arranged easily.

UV plant PURION® 500 can be equipped with a polished stainless steel reactor. PURION 500 can be used to disinfect drinking water up to a flow rate of 400 l/h and for a transmission of at least 90% per cm. The used uv lamps are characterized by a long durability and a high degree of efficiency respecting to disinfection and energy consumption. The power supply can be carried out with 230 V/50 Hz or optionally 12 V DC, 24 V DC or 110 V AC. The compact construction design enables an easy replacement of the uv lamp at the end of their useful life. You don`t need any tool. Also replacement and cleaning of the quartz pipe can be arranged easily. UV disinfection is reached by floating the water through the reactor. Inside the reactor an uv lamp enclosed in a uv-c transparent quartz pipe is surrounded by the drinking water to be treated.

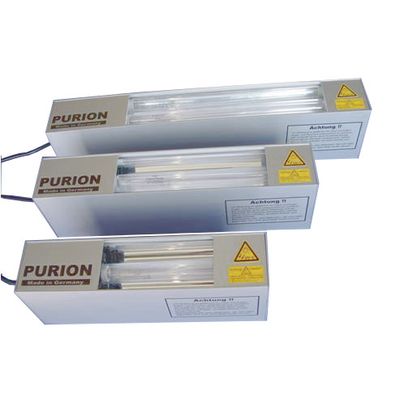

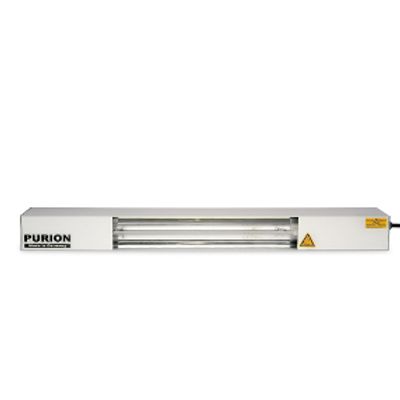

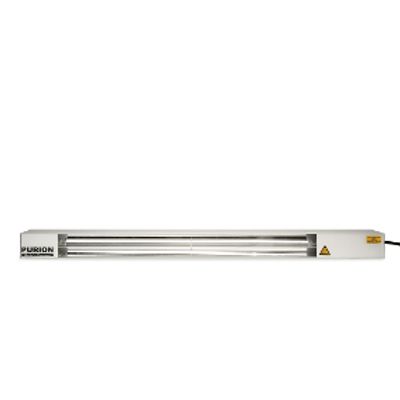

The equipment is made of a matt anodized aluminum profile with matching cover sheets. The radiator’s compartment is designed for housing a pristine-polished aluminum reflector. On its rear side we have the cabling as well as the electronic cut-in unit. If so desired, handles meant for manual operation may be installed on the rear side. Fastening devices for wall or ceiling installation are separately available. Lamp failure or cable breaking ar being internally monitored. A potential-free contact being connected therewith may be used for external signalling or connecting purposes. The UV radiators stand out for their long service life, high disinfection performance and low energy consumption. Power supply may alternatively be of 230 V/50 Hz or 110 V/60 Hz. Its compact construction allows for an easy removal of lamps or lamp exchange, like for instance at the end of the radiator’s service life, without using any tools.
