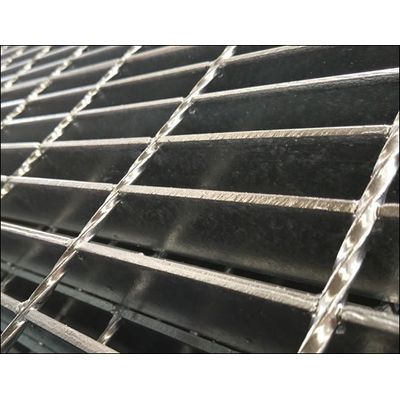

Open bar steel grates are standard metal grating with open mesh design, suitable for safe footing access for truck and trailer tread plates and other flooring applications. Steel open bar grating is mostly for heavy industrial use and is a top choice for strength, safety and long-term cost. Open Mesh Bar Grating can meet almost any load bearing or weight requirement and is the most durable grating for rugged applications. Available in standard black paint finish or galvanized finish. Standard open bar steel gratings panels are 20` long pieces, we also supply step bars cut to size. Maximum length available for stainless steel is 120".

Mild steel grating is very strong and safe for the support of floors, platform stair treads and elevated walkway. It is a low cost flooring metal with no galvanizing or hot dipped coating protection, suitable for common industrial uses.

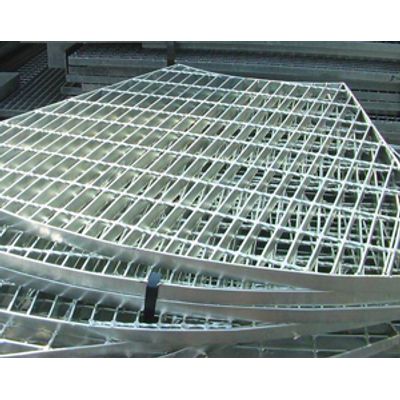

Hot dipped steel grating is a versatile open steel flooring material that can be produced in accordance with Chinese standard, American Standard, Australia or British Standard. The hot dipped galvanizing for the plate surface is processed according to standard: China GB/T13912-92 / ASTM (A123) / BS729. The thick zinc coating gives more protection and enables the grating floors excellent corrosion resistance for on-shore and off-shore elements. Hot dipped galvanized grating has bright metal aesthetic appearance and a light structure. It is easy for loading and installation.

Serrated opening bar grating provides a non-slipping texture allowing passage for light, air circulation and drainage, ideally used as flooring and walkway in factory or industrial workshops where safety tread is needed. Serrated grating is mostly made of carbon steel galvanized or non galvanized supplied with a common outline size range of 900 x 1400 mm, 900 x900 mm, 900 x 1200 mm, 1000 x 650mm and 1100 x 700 mm. The metal gratings with one side serrated are supplied by four bonding ways: welded, swage locked, press locked or riveted.

Compound Steel Grating: Metal Grating Strut and Chequered Plate. Compound steel grating is a product made of steel grating with certain crossing style and checkered plate surface in different thicknesses. The grating type JG323/40/100, JG253/30/100 and JG323/60/100 are generally used as base support materials. The checkered steel plate galvanized or hot dipped with 3mm thickness is used as surface plate.

Black Painted Steel Grating is the steel bar grating treated with surface painting against oxidation and prolonged service life. The advantage of painted steel grating is that the exterior color can be diversified, mostly in black painted, also in red, white, blue and gray.

We supply mild steel grating with bituminous dipped painting for operating gangways and operating floors, including stair treads and open channels. Bituminous painting is also called bituminous coating, or bitumen painted, a standard treatment applied to our metal steel grating materials for common water proof and weather proof property. Our bitumen painted gangway gratings are coated by dipping dry film 60 micron bituminous paint for general treatment, heavy galvanized gratings are recommended for enhanced corrosion resisting demands.

Plank Grating is a kind of anti slip one-piece safety steel grating with raised diamond or dimple design allowing for the drainage of fluids, mud, chips, debris through the floor or treads while retaining anti skidding surface. We supply galvanized steel plank gratings in a wide variety of standard widths and channel heights, non-standard shapes and sizes also available for construction of non-slippery walkways, safety flooring and stair tread in various industries.

Checkered plate, also known as Checker Plate, Chequered Plate, is a light-weight metal sheet with a raised diamond pattern commonly used as non-slip tread plate for trucks, grating flooring, walkway for a safety flooring surface. The chequered steel sheet surfaces are protected by galvanizing and / or powder coating.

Stainless steel bar grating is made by welding or press locking available in varied bearing bar shapes and sizes, especially ideal for flooring and walkway in corrosive environments such as chemical industry, food processing, hydro processing and engineering.
