Qingdao Jing ChengWang Electronic Equipment Co.,Ltd products

The JCW-CST05 is an excellent fully automatic wire crimping machine with high performance. It processes wires ranging in cross-section from 0.032mm² to 2.08mm²(32 AWG -14 AWG).

No mechanic gripper change requirement for long & short wire. Fast switch by operation in screen. Unique function in all China. The JCW-CST13 combines 6 sets of Mitsubishi servo motor and driver.

Intelligent machine, exclusively designed for high demanding cable processing.  Servo motor, high quality driver, imported belt, 7 axis motion control card, precise processing and long service life.  The rollers raise and fall simultaneously, roller spacing is precisely controlled by electric motor. All of that ensure the center points of different cables are always the same. No machinery adjustment for whole range of cable required. Roller force and height will be saved along with other parameters after programming, no blade and roller adjustment in the future. Automatic length modification guarantee cutting accuracy. Automatically detecting force origin and cutter head origin.  High-end components, modular design, high performance in different environments.   CE-Conformity: the JCW-CS07C complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility

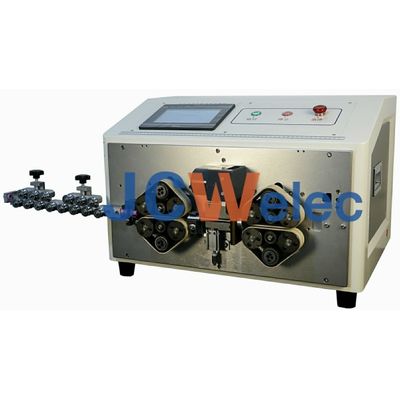

MCU motherboard control, extendable capacity, high performance cable stripping machine. High quality belt cable transfer system, handle different insulation material. Cut cable into length, strip both outer sheath and inner insulation simultaneously.
7" LCD touch screen, user-frienly interface, easy operation. Data library saves 100 programs. Automatic cutting length calibration. Effective inner cable braking device. Peripherals: cable stakcer, cable unwinder. CE-Conformity: complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.

The JCW-10T is brand new semi-automatic terminal crimping machine. Gas-liquid booster cylinder provide 100-140KN crimp force.

Compact design saves space. High precision vibration plate. Apply to insulated loose ferrule, 0.5-4.0mm². Finish wire stripping and ferrule crimping in one cycle. Portable and efficient machine for automotive, home applicance wire harness. Machine stops working and sound alarm when lacks terminal.

The JCW-C02 measures and cuts almost any type of synthetic strip material from thin ribbons to heavy webbings with an electrically heated blade.  The machine can measure and cut small of large quantities of strip materials up to 100mmin width, in length from 1mm to 99.9 meters and produce consistently accurate lengths and high quality cuts. Frequently used lengths can be stored in the machines memory for instant recall.  The machine is portable and weighs approximately 24KG. It can be mounted on a table or bench and requires only 220V/50Hz mains socket.

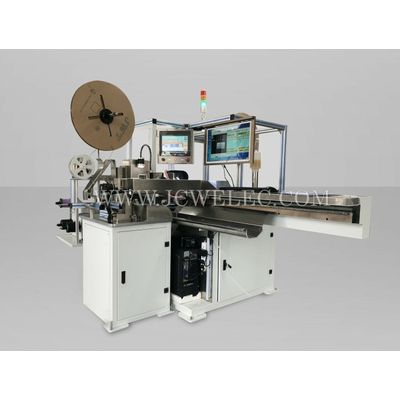

The JCW-CM02 is advanced fully automatic machines for housing insertion. This machine process 10 wires simultaneously and cover wide application range, strip double ends, crimp one or double ends, twist single wires to be twisted pairs and insert housing at one end etc.
