Qingdao Power Wise Conveyor Co., LTD. (PWC) products

The Ball type automatic tube cleaning system is for steam turbine’s condenser with a capacity of 15MW to 600 MW. The diameter of circulating water pipe can be matched 300-2200mm. With years of efforts, we have provided more than 100 sets of this system for more than 100 power plants and chemical, steel and coal plants.

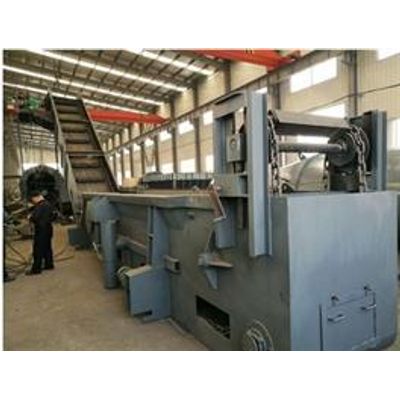

GBL-1.2×N Submerged Scraper Conveyor is a new generation of wet type bottom ash/slag handling equipment for thermal power plant. After long-term of service, the equipment quality is proved to be stable and reliable.

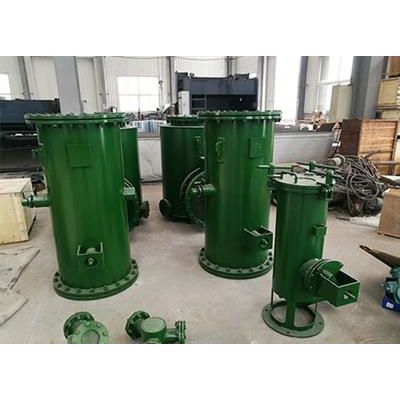

The CCJ/A-HZ impact dust collector unit with high dust removal efficiency. However, due to many problems such as water supply and sewage discharge, especially the problem that the sewage pipe is often blocked, our company has improved the dust removal unit and redesigned the electrical control box to meet the operational requirements.

The ZC series ash/slag silo is mainly used for short-term storage of boiler ash to facilitate the transportation of the ash by the truck. This silo is generally used with Submerged scraper conveyor, Dry bottom ash conveyor or Bucket elevator. It can work with ash/slag temperature below 100 °C, and also can store drained wet ash/slag.

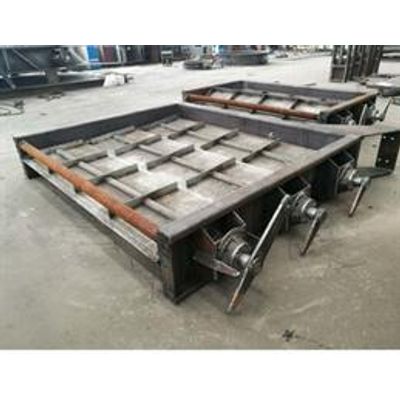

The baffle damper is used for the flue gas pipeline of the power plant. It has two functions of full opening and full closing, closing angle 90 degree, opening and closing time less than 45 seconds. It has flexible opening and closing. The driving torque is small, has high sealing performance, also can working under high pressure and temperature.

The adjustable baffle damper is used for adjusting the flow rate in the flue gas pipeline. It has the advantages of flexible rotation and excellent adjustment characteristics through different working fluid flow rates at different positions within the stroke of the baffle rotating 90°. For the hot air regulating door, the shaft end bearing is also equipped with a sealed air joint for external sealing air.

Adjustable round damper usually use one or two blades. Size from DN100-DN2400. Dampers can be built to fit any size air duct. They are ideal for low leakage and shut off applications and are a cost effective solution for high temp and paint laden airstreams requiring low leakage.

The GX Screw Conveyor is a traction device without flexible traction parts. It can be used as a feeding machine, and it can also complete the mixing operation at the same time of conveying, and it is suitable for conveying powder, granular materials such as coal, cement, soda ash, sand, ore, grain and etc. The machine has the advantages of simple structure, convenient maintenance, small occupied area, round tube design, good sealing performance and no pollution to the environment.

The high-efficiency coal powder separator air classifier is part of coal mill system and coal coal feeding system in power and cement plant. It has the characteristics of economical and practical, simple and compact structure, easy installation and convenient maintenance. The air volume of the powder separator is generally 33,000-38000 m3/h.
