Qingdao Watertools Technology Co., Ltd. products

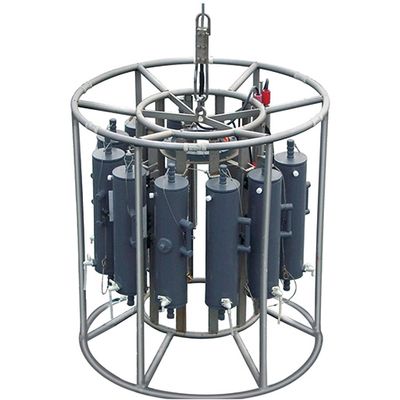

The approved Multi Water Sampler MWS 12 is an instrument designed for the collection of water samples in successive water layers. Only one operation for 12 different samples! The sturdy stainless steel array is equipped with twelve racks to which Plastic Water Samplers or Free Flow Samplers with capacities from 1.7 to 10 litres capacity can be mounted. The MWS 12 is equipped with a motor-driven release device with an integrated Depth Meter (measuring range according to customers’ requirements). The water samplers are sequentially closed in the succession of their mounting to the array (i.e. No. 1, 2, 3, …, 10, 11 and 12).

The Integrating Water Sampler IWS III is a light and handy instrument for the acquisition of summing (integrated) water samples according to the EU-WFD (European Water Framework Directive). The integrated sample is automatically achieved in one single draft.There is no need for repeated operations of standard water samplers, followed by mixing procedures. The sampling technique is very simple. An electric motor actuates a piston inside a transparent tube. A microprocessor controls the sampling procedure according to the pre-selected depth, time or spot scenario. A built-in high precision pressure sensor cares for accurate depth measurements. Power supply of the sampler is made by rechargeable lithium-ion batteries, using the safest chemistry currently available.

The Free Flow Water Sampler is an innovative design which avoids the limitations of the PWS/Niskin bottles caused by their reduced inlet and outlet diameters. The outstanding feature of the Free Flow Water Sampler is the really free-flushing construction of the sampler where no cone or ball-valve influences the water exchange inside the sampling tube.

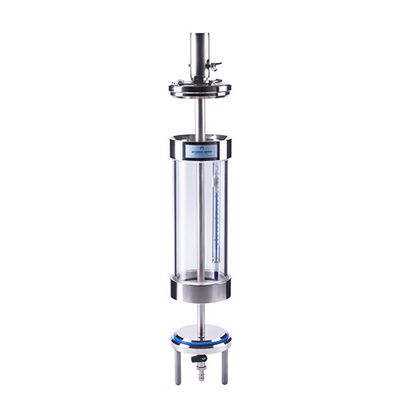

Based on the design of Prof. Dr. Franz Ruttner, our contemporary model is a handy and versatile instrument to take water samples from any desired depth. Due to the simple and practical design of the transparent sampling tube and the closing mechanism the sampler is renown for its reliability for many years. The Standard Water Sampler (whilst open) is lowered into the water by rope. Upon reaching the desired depth, the messenger activated closing mechanism is released and closes the lids of the sampling tube. A built-in thermometer, ranging from -2° to +30°C, indicates the temperature of the sample. To retrieve the water sample for analyses only the discharge cock at the lower lid has to be opened.

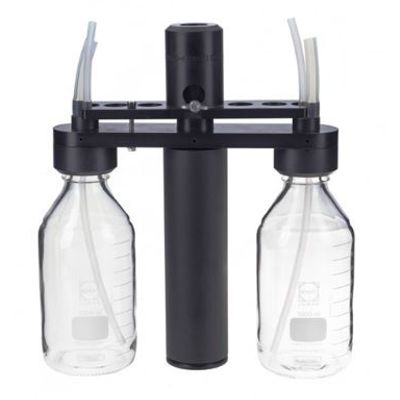

The LIMNOS Water Sampler is an approved and uncomplicated instrument to take water samples up to 30 m depth. It consists of the holder device to hold two exchangeable 1000 ml glass bottles as sampling vessels. The LIMNOS Water Sampler is attached to a wire and lowered into the water in closed condition in order to prevent sample contamination by surface water. An ingeniously simple technique is used to keep the sampler closed during descent: Two silicone hoses are fixed in bent position. The sampler is activated by a messenger upon reaching the desired water depth. When the messenger hits the anvil, the silicone hoses spring up allowing water to ingress and air to drain the bottle. For transport and investigation of the samples, the glass bottles are simply unscrewed from the holder and closed with a lid. This avoids falsification of the sample by pouring it from one vessel to another.

The Bottom Sampler acc. to Van Veen is a qualitative sampler to achieve low-disturbed sediment samples in soft or medium hard grounds from any desired depth. It consists of two clamshell jaws connected by a hinge. During descent both levers are locked wide apart and the jaws are open. Upon touching the water bed the locking mechanism is released and when the rope is pulled taut to raise the sampler the jaws close. During retrieval the jaws are holding the sample and prevent sample wash-out. Additional flaps on top of the heavy version 437 333 allow to inspect the sample before retrieving.

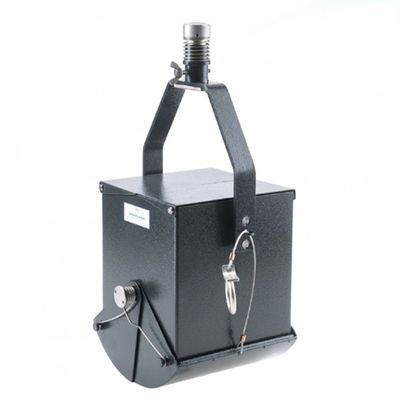

The Bottom Sampler acc. to Ekman-Birge is a quantitative sampler with precise sampling area to achieve nearly undisturbed samples in soft grounds. It consists of a sturdy-walled metal cabinet equipped with two spring-loaded jaws which are released by a messenger. Two light plates cover the top opening of the sampler to prevent the sample from being washed out during ascent.

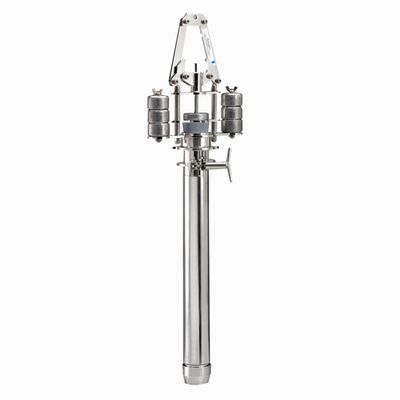

The KC Kajak Sediment Core sampler is based on the Kajak design and can be used as line operated as well as hand operated sampler. With a wide range of accessories the system can be adjusted for various projects.

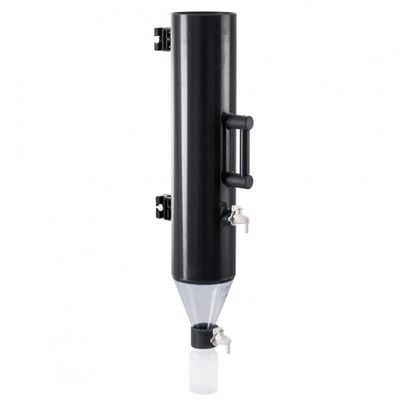

Sediment Traps are containers that allow to quantify sinking particulate matters in aquatic environments. Our tubular design provides a relatively small sampling area but allows suspended matters to settle without the risk of being flushed out even under turbulent environmental conditions (as it happens with large-area conical traps).

The rugged titanium array of the Multi Sediment Trap encapsulates the singular standard Sediment Trap (444 000) together with a motor-driven rotary table that can accommodate 6, 12 or 24 plastic collecting bottles. The instrument has been designed as a light and handy instrument for autonomous operations in lakes, continental sheIf and aquatic environments with relative high vertical particulate flux value. It has proven its reliability during numerous long-time operations in arctic, antarctic, tropic and sub-tropic environments.
