nt operation experience at home and abroad ,combine our company’s scientific achievements and engineering practice, designed a whole set of organic wastewater treatment equipment which can be buried underground, which adopted the advanced technique and manufacturing technology at home and abroad 1n late of 1990s,produed the LHC series of sewage treatment equipment, which main raw material is fiberglass, stainless steel, its main purpose is make the domestic sewage and similar industrial organic sewage to achieve user`s emissions standards after disposed by this equipment. This equipment mainly used in treating domestic sewage in Residential area (including villa district)? senior hotel ?complex office and various of public hospital buildings, the water quality can achieve national emission standard after treated by the equipment. A full set of equipment can be buried in the ground, is also known as "integrated waste water treatment equipment." .

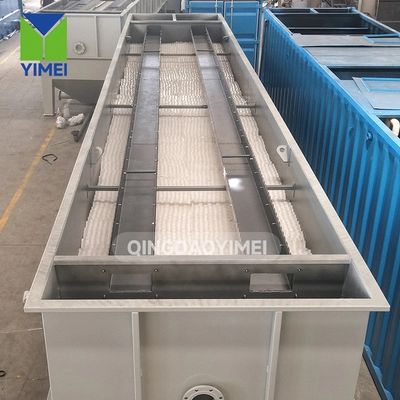

This is a highly efficient combined Lamella clarifiers equipped with dense inclined tube fillers in the settling zone to precipitate suspended impurities in water. Lamella clarifiers can be used in a range of industries including mining and metal finishing, as well as used to treat ground water industrial process water and backwash from sand filters. Lamella clarifiers are ideal for applications where the solids loading is variable and solids sizing is fine and are more common than conventional clarifiers at many industrial sites due to their smaller footprint.

YMWF series CAF is specialized used to remove industrial and municipal sewage grease, jelly and suspended solid. Aiming at different sewage, grease removal rate above 95%, most part of suspended solid will be remove, and inject suitable f locculant and mixture, it can make COD,BOD remove rate above 60%, mainly used water treatment of paper milk chemicak pollutions food,  paint, tannery, oil refining, milk processing, beverage, textile,  machinery processing. municipal etc industrial sewage.

The air flotation device produces a large number of fine bubbles in the water through the dissolved air and release system, so that it adheres to the solid or liquid particles in the wastewater with a density close to the water, resulting in a state where the overall density is less than that of water, and relies on buoyancy to make it rise to the water surface, so as to achieve the purpose of solid-liquid or liquid-liquid separation.

Many dense inclined pipes or inclined plates are set in the re-settlement area, so that the suspended impurities in the water are precipitated in the inclined plate or inclined pipe. The water flows up along the inclined plate or inclined pipe, and the separated mud and slag slides down to the bottom of the pool under the action of gravity, and is discharged in a concentrated manner.

Through the sludge delivery pump, the sludge is transported to the sludge deliveryoort. The sludge is transported to the flocculation mixing tank after adjusting the flowrate through the metering tank, and the sludge is fully stirred and mixed by the mixer. After fully stirring through the mixer to form a large alum flower, it is sent into themain body of the stacking screw. The alum flower sent into the concentration part is concentrated by gravity whilemoving to the direction of the dehydration part5. The gap between the swimming ring and the fixed ring of the dehydration part be-comes narrow, and the dehydration is further pressurized by adjusting the backpressure plate located at the exhaust outlet, and finally the mud cake is discharged.

Through the sludge delivery pump, the sludge is transported to the sludge delivery port. The sludge is transported to the flocculation mixing tank after adjusting the flow rate through the metering tank, and the sludge is fully stirred and mixed by the mixer. After fully stirring through the mixer to form a large alum flower, it is sent into the main body of the stacking screw. The alum flower sent into the concentration part is concentrated by gravity while moving to the direction of the dehydration part. The gap between the swimming ring and the fixed ring of the dehydration part becomes narrow, and the dehydration is further pressurized by adjusting the back pressure plate located at the exhaust outlet, and finally the mud cake is discharged.

The effluent enters the inside of the rotating drum through the feed inlet and then passing over the distribution weir on to the drum surface. The particles and water separate as the drum rotates with the solids staying on the screen and passing down the length of the drum helped by internal flights or a continuous scroll.

The filter press is a kind of intermittent solid-liquid separation equipment, which is composed of filter plates, filter frames (plate and frame type) or filter plates (chamber type) arranged to form a filter chamber, under the pressure of the conveying pump, the material liquid is sent into each filter chamber, and the solid and liquid are separated through the filter medium.
