QS Lasers UAB products

MPL1310 series DPSS passively Q-switched sub-nanosecond lasers deliver high peak powers at 100 Hz repetition rate. Short laser cavity with the end pump technology is fixed on thermo-stabilized and controlled baseplate which gives extremely stable output parameters performance. Small footprint is welcome point for integration into OEM lasers. Sub-nanosecond pulse duration of < 350 ps, high pulse energy more than 1 mJ, variable repetition rate from 1 Hz to 100 Hz covers many applications like medical, surface disinfection, supercontinuum generation and many others. Due to short pulse duration and high pulse energy laser delivers high peak power which is up to 2.8 MW. Optional conversion to green (532 nm) and ultraviolet (355 nm, 266 nm) is also available.

MPL1510 series DPSS passively Q-switched sub-nanosecond lasers deliver high peak powers > 4 MW at 100 Hz repetition rate. Short laser cavity is fixed on thermo-stabilized and controlled baseplate which gives extremely stable output parameters performance. Small footprint is welcome point for integration into OEM lasers. Sub-nanosecond pulse duration of < 500 ps, high pulse energy more than 2 mJ, variable repetition rate from 1 Hz to 100 Hz covers many applications like pollution monitoring, DNA analysis, supercontinuum generation and many others.

MPL300-YLF series high pulse energy, DPSS passively Q-switched picosecond lasers are ideal choice for applications where high peak powers are needed. Diode pumped passively Q-switched single longitudinal mode (SLM) oscillator is the core of the system. Short picosecond optical pulse of 500 ps is directed to multi-pass diode pumped power amplifier for amplification to up to more than 50 mJ pulse energy. The power amplifier(s) are based on novel pump technology (VCSEL), which allows long-life system operation up to 20G shots (compared with standard LD pumping by order of magnitude longer).

MNL1342 series DPSS passively Q-switched short pulse nanosecond laser designed for industrial and medical needs like OLED repair, photo-acoustic, etc., deliver high peak powers at 1000 Hz repetition rate. Innovative laser cavity and harmonics unit with stabilized temperature control delivers stable output parameters. Small footprint is welcome point for integration into OEM systems. Short nanosecond pulse duration of < 2 ns, high pulse energy more than 100 µJ, high repetition rate from up to 1000 Hz covers broad range of applications where 1.3 µm wavelengths are needed. Standard optional harmonics to red (671 nm) and blue (447 nm, 336 nm) is available.

MPL15100 series robust DPSS actively Q-switched sub-nanosecond lasers deliver multi-kW peak powers (> 700 kW) in less than 700 ps pulse duration at 1000 Hz repetition rate. Innovative short laser cavity is fixed on thermo-stabilized and controlled baseplate which gives extremely stable output parameters. Small footprint is welcome point for integration into OEM lasers. Sub-nanosecond pulse duration of < 700 ps, pulse energy more than 0.5 mJ, repetition rate from 1 Hz to 1000 Hz covers broad spectrum of applications starting from LIBS, LIF, spectroscopy to supercontinuum generation. Standard optional harmonics generator to green (532 nm) and ultraviolet (355 nm, 266 nm) is also available.

DCCO series ovens and digital temperature controllers designed for heating and stabilizing non-linear crystals at predefined temperature providing reliability and long term operation. The temperature controller is supplied in three main specifications depending on the desired operating temperature. The crystal oven is produced to meet customer requirements and comes as a tailored solution depending on the crystal used. Our team of professionals will find best solution for the most demanding applications.

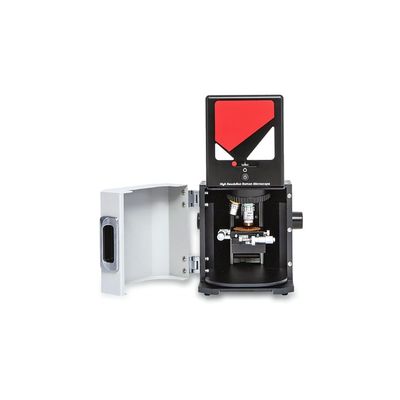

NS200 Raman spectrometer is designed considering the experimental convenience, integrated with the optical imaging microscope to see the target sample. This instrument is a compact, easy to use, turn-key Raman spectrometer system which includes laser, spectrometer and CCD in a compact rugged base module. System designed for the personal daily use in the laboratory, focusing on the high performance to price ratio. The most popular and time tested series of Raman spectrometers for routine analysis – feature new styling and performance enhancements.
