R. STAHL AG products

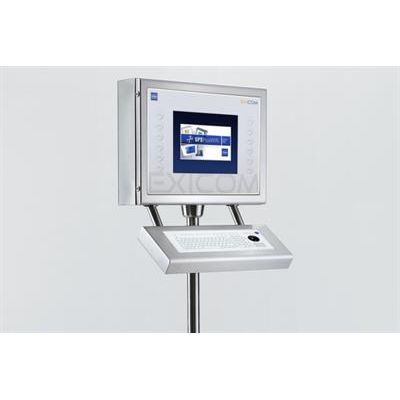

R. STAHL`s OS ET-306 HMI systems are Operator Interface Operator Stations for hazardous zones 1, 2, 21 and 22 as well as Division 2. Their brilliant 10" displays with analogue-resistive touch screen have a resolution of 640 x 480 pixels (format 4:3). The stainless steel enclosures (SS304 or SS316L) are available with a front opening or in cleanroom-compliant design and with different mounting options. Accessories to expand functionality include country-specific keyboards, pointer instruments, RFID readers and barcode scanners. For visualisation you can choose either Movicon CE or SPSPlus RT from our software portfolio, and for data transmission you can choose from single Ethernet as 10/100Base-TX via CAT5 for distances up to 100 m and single Ethernet as 100Base-FX via multimode fibre optic for distances up to 2 km.

R. STAHL`s OS ET-316 HMI systems are Operator Interface Operator Stations for hazardous zones 1, 2, 21 and 22 as well as Division 2. Their brilliant 10" displays with analogue-resistive touch screen have a resolution of 800 x 600 pixels (format 4:3). The stainless steel enclosures (SS304 or SS316L) are available with a front opening or in cleanroom-compliant design and with different mounting options. Accessories to expand functionality include country-specific keyboards, pointer instruments, RFID readers and barcode scanners. For visualisation you can choose either Movicon CE or SPSPlus RT from our software portfolio, and for data transmission you can choose from single Ethernet as 10/100Base-TX via CAT5 for distances up to 100 m and single Ethernet as 100Base-FX via multimode fibre optic for distances up to 2 km.

R. STAHL`s PM ET-306 HMI systems are Operator Interfaces for panel mounting in hazardous zones 1, 2, 21 and 22 as well as Division 2. Their brilliant 10" displays with analogue-resistive touch screen have a resolution of 640 x 480 pixels (format 4:3). Country-specific keyboards, pointer instruments and RFID and barcode scanners are useful accessories making work easier and extending functionality. For visualisation, you can choose either Movicon CE or SPSPlus RT from our software portfolio. Depending on the distance to be crossed, you may choose from the following two types of data transmission technology: single Ethernet as 10/100Base-TX via CAT5 up to 100 m or single Ethernet as 100Base-FX via multimode fibre optic up to 2 km.

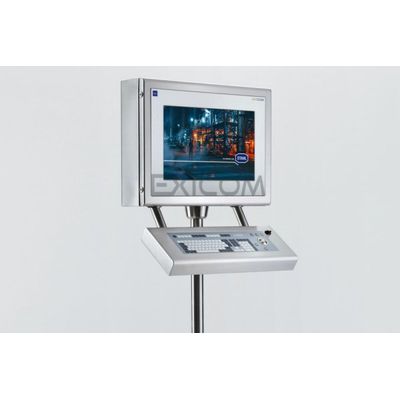

The OS ET-667-DVI3 HMI series includes KVM Operator Stations for zones 1, 2, 21, 22 and Division 2. Their brilliant 22" widescreen displays with a resolution of 1680 x 1050 pixels (format 16:10), and are available with or without touch screen. The stainless steel enclosures (SS304 or SS316L) are available with a front opening or in cleanroom-compliant design and with different mounting options. Country-specific keyboards, pointer instruments and RFID and barcode scanners are useful accessories making work easier and extending functionality. Depending on the distance to be crossed, you may choose from the following types of data transmission technology: via copper cable up to 150 m, via multimode fibre optic up to 550 m or via single mode fibre optic up to 10 km.

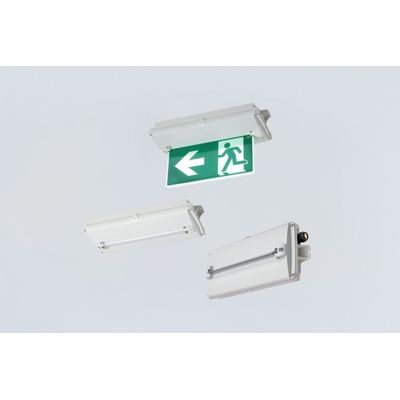

Art. No.: 287814. Product Type: 6109/111-0101-160-0111-31-A850-001. Min. ambient temperature: -30°C, max. ambient temperature: +50°C. Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc. Certificates: ATEX (IBE), Brazil (ULB), China (NEPSI), IECEx (IBE), Polen (CNBOP). Lamp: LED. Light distribution: 0...60° (w. deflection opt.). Luminous flux: 490 lm. Emergency light output: 25% – 3.0 h, 50% – 1.5 h. Colour temperature: 5000 K. Enclosure material: Thermoset. Max. solid connection terminals: 6 mm². Disconnection of the luminaire: No. Through wiring: Loop in/loop out. Drilled holes: 3 x M25. Cable glands and entries: 2 x M25 Ø 7.

Their impact resistant, glass-fibre-reinforced polyester resin enclosures make R. STAHL`s Ex e terminal boxes perfect for use in harsh conditions. They are available with different enclosure formats, and can be equipped with terminals to meet the customer`s exact requirements.

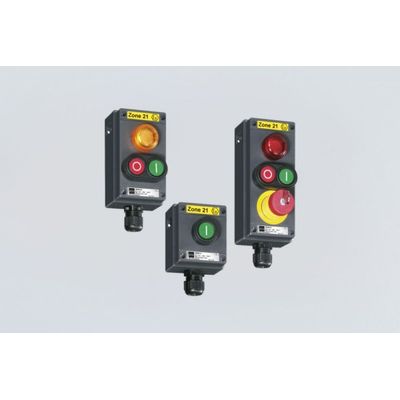

With the R. STAHL Series 7040 ConSig control device system, you can get a clear overview of the control devices in hazardous dust zones. The 3 combinable design sizes and the modular structure offer flexibility, optional accessories enable useful additions. Versions with contact element G082 are usable up to SIL 3.

The OS ET-667-DVI3 HMI series includes KVM Operator Stations for zones 1, 2, 21, 22 and Division 2. Their brilliant 22" widescreen displays with a resolution of 1680 x 1050 pixels (format 16:10), and are available with or without touch screen. The stainless steel enclosures (SS304 or SS316L) are available with a front opening or in cleanroom-compliant design and with different mounting options. Country-specific keyboards, pointer instruments and RFID and barcode scanners are useful accessories making work easier and extending functionality. Depending on the distance to be crossed, you may choose from the following types of data transmission technology: via copper cable up to 150 m, via multi-mode fibre optic up to 550 m or via single mode fibre optic up to 10 km.

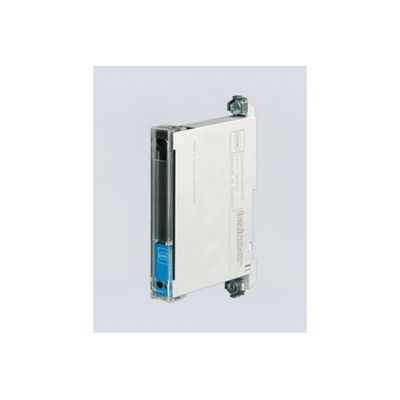

The 9001 series INTRINSPAK single-channel zener barriers enable the intrinsically safe operation of virtually all field devices. The comprehensive portfolio and the combination of zener barriers cover a wide variety of signals. The devices are incredibly robust and require little space. The back-up fuse is a convenient feature as it is standardized for all variants.

Product series FX15 provides visual signals from a continuous beacon with an LED or a 5 J lashing beacon with xenon flashes. The enclosure is made of glass fibre reinforced polyester. The product series is intended for use in hazardous areas and harsh environments.Product series FX15 provides visual signals from a continuous beacon with an LED or a 5 J lashing beacon with xenon flashes. The enclosure is made of glass fibre reinforced polyester. The product series is intended for use in hazardous areas and harsh environments.
