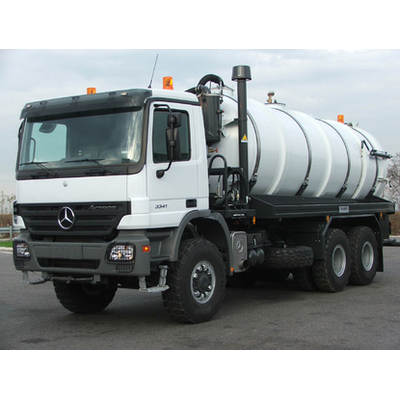

Mercedes-Benz Actros 3341 (6x6) truck chassis, specially designed for off-road use in the african dessert with vacuum tank body, 20.000 l. capacity. Tank constructed with FE510 steel plates, 6 mm thick. Spray bar mounted on the rear of the truck.

For the transport and suction of oil, mud, waste-water (sewage) and for high-pressure cleaning.

The "Special  Low-Torsion body mounting system" for tank bodies is recommendable due to their strongness, torsion-resistant design, in particular for "Off-Road operation" under rough cross-country conditions. The elastic connection between the truck chassis and the sub-frame provides a torsion-absorbing function.

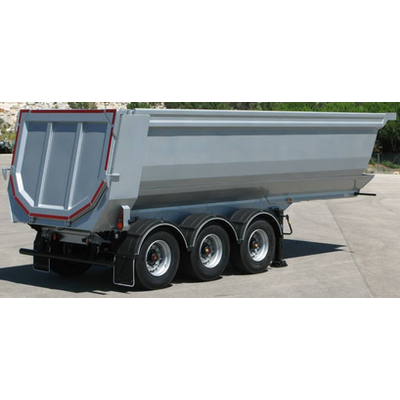

3-axles half pipe TIPPING SEMITRAILER, Hardox 450, Capacity: 40 m³. Custom-made for rough roads and off-road application. Steel suspension, twin wheels. HARDOX 450 steel (8/6 mm). Top quality axles from BPW or SAF Germany. Max. payload 72000 kg (158730 lbs.) (Tires: 12.00R24). JOST king pin 3,5 inch. Drum brakes 420x200 mm.

2-AXLES TIPPING SEMITRAILER 5 mm HARDOX 450. Single wheel (445/65 R 22,5). Capacity: 22 cbm. Tare weight: 6800 kg. SAF or BPW axles. Disc brakes. Rear door with automatic opening with double hinge.

Hardox 450 tipping trailer, capacity: 25 cbm. Mechanical tandem axles (BPW or SAF), suspension: 32 ton, twin wheels 13R22,5 or 12R22,5. Rear door with automatic opening with double hinges. Stabilizer between body and chassis.

3-axles tipping semi-trailer with Aluminium tipper body, capacity max. 26 cbm. Tridem pneumatic suspension, first axle with pneumatic lift. Single wheels 385/65 R 22,5. Floor: 8 mm, sides and front: 6 mm. Tare only approx. 5400 kg .

3-axles rear tipping semitrailer. Capacity: 25 cbm. The wide floor of the rounded tipping steel body provides a low centre of gravity. That makes the trailer more stable on rough roads. Floor, sides, front panel and rear door made of steel HARDOX 450 in 5 mm thickness . Stabilizer system. Pneumatic suspension. 3 Axles single wheels (385/65 R 22,5) , first axle with pneumatic lift.

3-axles rear tipper semitrailer made of Hardox 450. Capacity: 30 m³. Mechanical tridem suspensions (SAF). Twin-wheels 12 R 22,5 or 13 R 22,5. Drum brakes 420x200 mm. The box is available with bottom 6 or 8 mm and in multiconic or sqare shape.
