RAKwireless Technology Limited products

RAK7289 WisGate Edge Pro is an ideal product for IoT commercial deployment. With its industrial-grade components, it achieves a high standard of reliability. Supports up to 16 LoRa channels, multi backhaul with Ethernet, Wi-Fi, and Cellular connectivity. Optionally there is a dedicated port for different power options, solar panels, and batteries. With its new enclosure design, it allows the LTE, Wi-Fi, and GPS antennas to be inside the enclosure. The gateway provides for a solid out-of-the-box experience for quick deployment. Additionally, since its software and UI sits on top of OpenWRT it is perfect for the development of custom applications (via the open SDK). Thus, the RAK7289 is suited for any use case scenario, be it rapid deployment or customization with regards to UI and functionality.

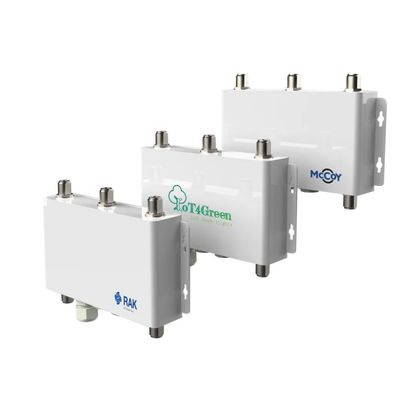

The RAK7240 WisGate Edge Prime is an outdoor LoRaWAN Gateway ideal for large-scale LPWAN deployment where cost is essential, however, there are no compromises to be made on quality. It is based on the SX1301 LoRa core. Its wide range of customization options allows for flexibility when deploying a solution. With its industrial-grade components and high class of ingress protection - IP65, it achieves a high standard of reliability. The RAK7240 Industrial Gateway provides for a solid out-of-the-box experience where quick deployment is required. The RAK7240 WisGate Edge Prime is suited for any use case scenario, be it rapid deployment or customization with a custom brand.

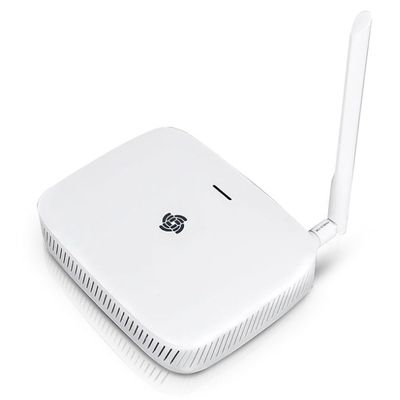

The RAK7268 WisGate Edge Lite 2 is a full 8-channel indoor gateway, based on the LoRaWAN protocol, with built-in Ethernet connectivity for a straightforward setup. Additionally, there is an onboard Wi-Fi setup (supporting 2.4 GHz Wi-Fi) that allows it to be easily configured via the default Wi-Fi AP mode. Moreover, the gateway supports LTE uplink communication connections (optional).

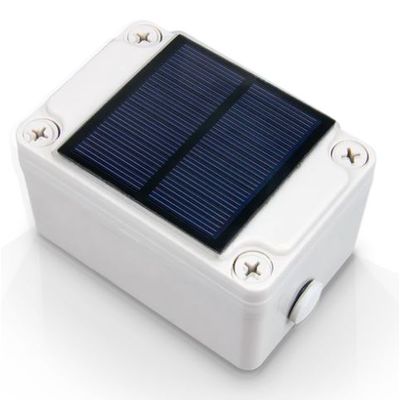

The WisNode Track D (RAK7205) LPWAN tracker board is built upon the RAK811. At its core is an STM32L1 microcontroller driving Semtech® SX1276/78 LoRa® chip. GPS is present as well as a number of sensors. The aforementioned makes the board suitable for rapid application development, such as asset tracking, vehicle management, location-based services, environmental monitoring, etc. Additionally, because of its low power consumption in sleep mode, it can provide a long-lasting solution for any battery-powered project. The support for AT commands makes configuration a breeze. For advanced users is open source support in case a custom firmware is required.

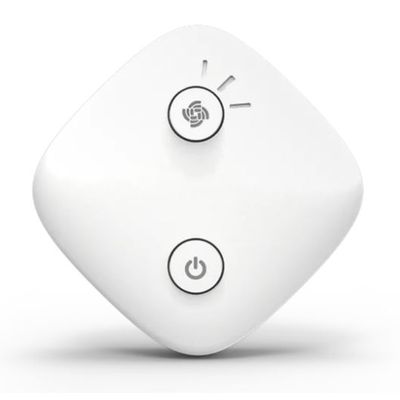

WisNode TrackIt (RAK2171) is RAKwireless’ latest LoRaWAN GPS tracking device. It comes in a small form factor with rechargeable battery and tracking and configuration application, available for iOS and Android devices. RAK2171 supports multiple working modes and notification options. When used with RAK WisGate Edge gateways and in P2P mode you can monitor your tracker on the application map, create geofences, and receive SOS and movement notifications. You can also configure the WisNode TrackIt to work with any third-party LoRaWAN network using the TrackIt application as a configuration tool.
