Rapiscan AS&E products

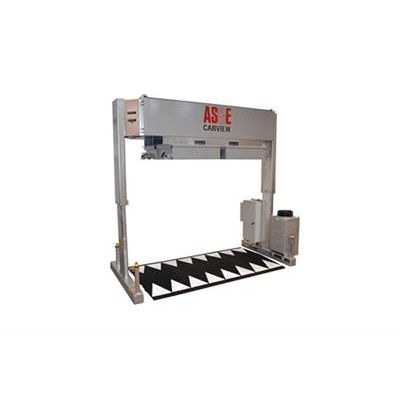

The CarView Portal is a cost-effective, easily relocatable system for inspecting occupied cars and small vehicles at events, parking garages, and high-threat locations. The system simultaneously produces two top-down images: a high-quality dual-energy transmission image that helps detect metallic threats and a Z Backscatter image to help operators detect organic threats and contraband.

The Z Portal for Trucks and Cargo is a high-throughput, drive-through inspection system for large trucks, buses and cargo containers. It utilizes multiple X-ray technologies to provide up to six images of the truck or cargo and is well suited for high-traffic locations. For enhanced metallic detection, the Sentry Portal can be deployed along with the Z Portal system.

The Eagle P25 is ideal for heavy-traffic locations that require thorough, high-throughput inspection. While operating in optional CabScan^® mode, the system scans at a low dose that is safe for occupied vehicles. The system’s high quality X-ray images and our Cargo Viewer software provide an effective and efficient screening solution that reduces the need for subsequent manual inspection.

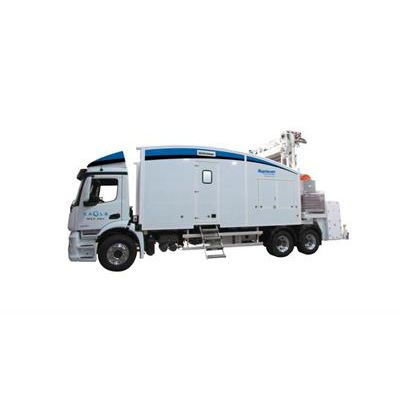

The Eagle M60 ZBx is an advanced, multi-technology, mobile inspection system with combinational imaging for scanning cargo and vehicles at seaports, border crossings, and security checkpoints. The system offers high-quality transmission X-ray technology with material discrimination for powerful imaging of dense cargo and Z Backscatter technology for enhanced detection of organic threats and contraband with photo-like imaging for easier image interpretation.

The Eagle T25 offers high-quality imaging with material discrimination for detection of threats and contraband. The fully self-contained unit can be easily towed and rapidly deployed. The system offers portal mode operation with automatic cab exclusion or optional CabScan^® mode to image the entire vehicle. For added personnel safety, the Eagle T25 can be operated from up to 300 meters away.

The Eagle C25 inspection system offers superior imaging performance for the safe and thorough inspection of both unoccupied and occupied passenger vehicles. The Eagle C25 is a gantry-based system using a 2.5 MeV linear accelerator to scan cars, small trucks, and vans for metallic and organic threats and contraband. The Eagle C25 offers a market-leading combination of performance and versatility.

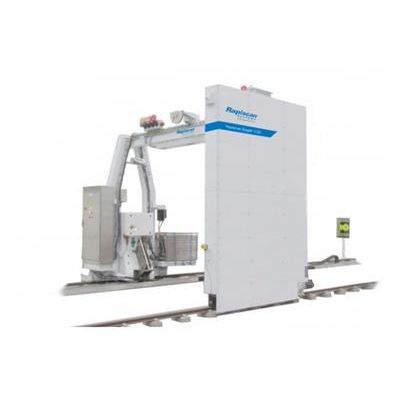

The Eagle G60 offers high-quality, dual-energy imaging for screening dense cargo for threats and contraband, and verifying manifests. It scans on a rail-mounted gantry or in drive-through portal mode, providing powerful inspection of containers as well as safe screening of drive-through traffic. In portal mode, our CabScan® technology enables scanning of the occupied truck cab with low dose and automatically switches to high energy to screen the cargo container, providing a safe, thorough, and efficient scanning solution.

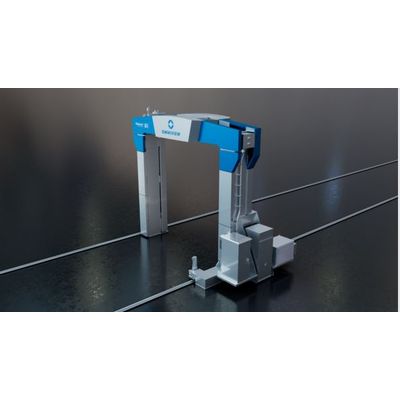

The OmniView Gantry system delivers superior imaging of cargo containers, tankers, and large vehicles up to five meters high. Its steel penetration of 430 mm and outstanding image resolution makes it the ideal solution for detecting threats and contraband in densely-loaded cargo at ports and borders. Four-color material discrimination provides improved detection of contraband and threats.

The modular design of Nucsafe vehicle monitoring systems uses one or more radiation sensor panels (RSPs). Each RSP contains one or more neutron Smart detectors made of a unique neutron-sensitive scintillating glass fiber (PUMA panels) or traditional He-3 pressurized gas tubes and one or more gamma ray Smart detectors made of polyvinyl toluene (PVT) plastic scintillator or sodium iodide NaI(Tl) detectors. The choice of detectors is typically a customer preference, but advantages and disadvantages exist for each type of gamma ray and neutron detection technology.

A one or two sided pedestrian system can be positioned in front of customs officers` or immigration officials` desks or at any common entrance or exit in the customs area. Passengers with their luggage will have to move through these portals and the presence of gamma and neutron emitting radionuclides can be determined. These monitors provide a local visible or audible alarm and can be networked. Normal and high sensitivity models are available. Version of these systems include a patented split detection method capable of identifying when the source is centered in the portal providing the ability to identify a single person that has the radioactive material.
