Rasaii Flow Lines Private Ltd. products

Valve Body WCB/CFS/CF3/CF SM/CF3M/CN7 M/CD4MCUN.

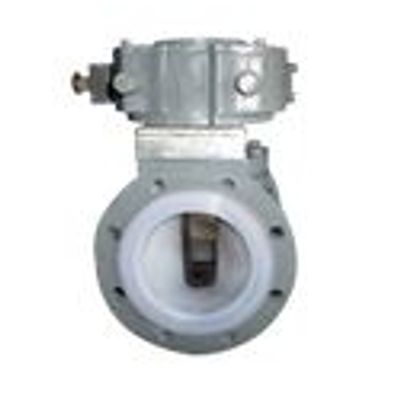

RFL’s PTFE Sleeved Plug Valves are primarily ON/OFF valves designed for efficient handling of highly corrosive process mediums. They provide effective sealing in low pressure service. Sleeve are made from PTFE that acts as self -lubricant and hence, a maintenance free “fit and forget” valve. RFL’s Sleeved Plug Valves comes in different models, end connections, operations and are qualified for fire safe and low fugitive emission standards as per latest editions.

END CONNECTIONS, AS per ANSI 150, ASA 150, B 16.5.  Max. working temp. 180°c.  All Lined Portion are spark Tested to 10,000V.

END CONNECTIONS, AS per ANSI 150, ASA 150, B 16.5.  Max. working temp. 180°c.  All Lined Portion are spark Tested to 10,000V.

Q-Check V Notched Ball Valve is designed for on/off control or throttling applications. This valve has an unrestricted straight through flow design, and provides high capacity for gas, steam, fibrous slurries or liquids. The Q-Check is designed with a splined shaft valve body that matches with a variety of brand name actuators to form a dependable high performance control valve, ideal for many applications in the various processing industries.

The drawing clearly illustrates the pains taking technological innovation adopted by ‘RFL’ to give and Longevity and Superior Quality for the Ball valve.

2 piece design as per ANSI B16.1 & Drilled to ANSI B16.5 .

Valve Type : Centric Disc Butterfly Valve with Rubber seat. Body Type : Short Wafer (Sandwiched between flanges) Single piece Design. Seat Type : Rubber. End connection : Wafer sandwiched. Pressure Rating : PN16/#150. Operating Temperature Range : NITRIL: -20°C to 80°C/ EPDM: -20°C to 120°C. Seat Leakage : Tight Shut Off.

FULL PORT, Bi-Directional Flow, Better Corosion Resistance than Steel and Alloy. The Liner is Locked by Grooves permitted the sight glass to be used on High Vaccum and pressure applications without Line collapse and Blow-out. Fitted with Toughned Glass. External Body is coated with corrosion resistant paint. All Lined Portion are spark Tested to 10,000V.

As per ANSI B16.5 class 150# Stantard 2 Fixed flange.
