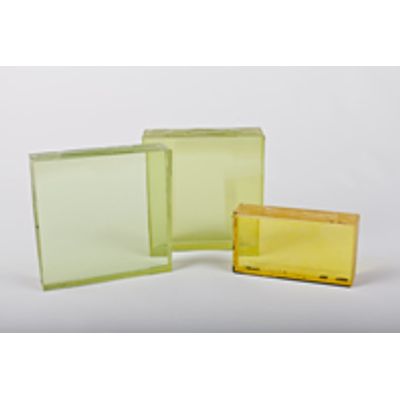

Over 40 standard sizes up to 48" x 96", 1 to 3-day standard fabrication, Many protective shielding levels available, Optional Impact Resistant, Frosted or laminated, Available with lead-lined frames for walls. Ray-Bar X-Ray Protective Lead Glass for Radiation Shielding. Ray-Bar Engineering Corporation is a major provider/manufacturer of x-ray glass and radiation protective lead glass shielding products worldwide, and has been for over 70 years. Specialty Ray-Bar x ray glass and radiation protective lead glass is utilized when a clear view and radiation shielding is of absolute priority in diagnostic, therapy, isotopic, or nuclear radiation sources. X-ray glass is used for radiation shielding in medical treatment, imaging, testing, inspection, experimentation or energy production.

Over 40 standard sizes and all custom sizes available up to 48" x 96", Permanently labeled ANSI Z97.1 and CPSC 16 CFR 1201 Cat II requirements for impact resistance as required per IBC 2406 "Safety Glazing", 2 to 4 working day standard fabrication, Many protective shielding levels available, Available with lead-lined frames for wall or door applications. Ray-Bar X-Ray Safety Glass is federal and medical building safety code compliant and always readily available as permanently labeled. Our x-ray lead glass provides the required impact resistance for door vision-lites, in walls within 24" of a door opening, in high-risk traffic areas, and for additional seismic safety, providing a clear view while additionally shielding X-Ray/Gamma radiation, and 95% of UV protection. Ray-Bar impact-resistant x-ray safety glass is utilized "to reduce or minimize the likelihood of cutting or piercing injuries when said glazing is broken by human contact". Per ANSI Z.97.1-2009

Fire protective glass contains a fire-rated glazing that protects against heat and smoke and is used for door, window and partition applications in commercial and medical buildings. Glass products treated with a fire protective glazing are rated in minutes, which determines how long the glass can contain flames and prevent the fire from spreading to other areas. Fire protective glass products are also manufactured to be impact resistant and can be used in applications involving X-ray and radiation protection.

FireLite-NT is an Fire-Rated Impact Resistant clear transparent filmed treated ceramic "wireless" UL Classified fire-rated 3/16" (5mm) thick glazing material meeting 20,45 and 60-minute fire ratings with required Hose Stream Test and Positive Pressure Tests (per UL 10C). This fire protective glass is offered in “premium” grade and is also available as FireLite-NT-IGU insulated glass units or as FireLite-Plus impact resistant glass units with a laminated interlayer. Ray-Bar Engineering’s FireLite-NT fire-rated filmed products are for impact safety rated locations and are labeled as meeting the Impact Resistance requirements of ANSI Z97.1 and CPSC 16 CFR1201 (Cat I and Cat II) as required per IBC 2406 Safety Glazing in Hazardous Locations. Impact Resistant locations include any windows occurring in a wall within 24" of a door opening, or within 18" of the floor.

Ray-Bar Bullet Resistant Ballistic Glass Products for Security. At Ray-Bar we design, engineer and fabricate Bullet Resistant, Ballistic and Blast Glass for industrial applications throughout the world. Our Bullet Resistant Ballistic Glass products provide advanced protection for the following types of high security fixtures: Financial institutions, Correctional facilities, Government buildings, Court houses, Law enforcement areas, Military & defense facilities.
