RCM Industries, Inc. products

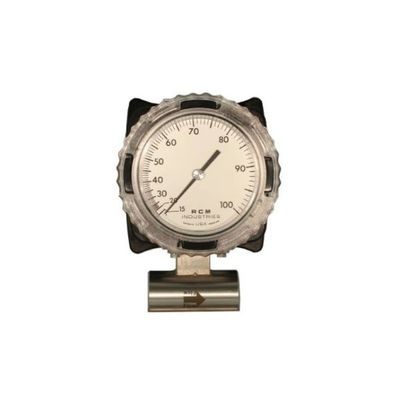

Rugged direct reading differential pressure flow meters are design for industrial processes that include lube oil monitoring, blending, cooling and compressed air measurement.

Sturdy in-line metal construction flow meter can be fitted with a 4-20mA, Hi/Lo alarm (N.O.) relays, or 0-1000Hz frequency linear output signal for interfacing with remote indicators, computers, controllers and alarms.

Ammonia service flow meters are constructed of stainless steel, EPR seals, gasketed case and used in industrial cooling systems, fertilizer and NOx emissions. The flow meter has been developed for industrial applications where durability and reliability are important considerations in the monitoring of flow.

Ammonia gas flow meters are used in distillation plants and as a cooling agent all stainless steel construction to withstand the harsh environment. EPR seals and gasketed case are standard features for additional protection. The flow meter has been developed for industrial applications where durability and reliability are important considerations in the monitoring of flow.

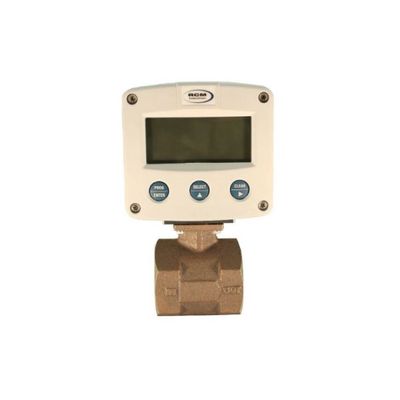

The digital display is a 2-wire loop powered flow meter with a built in wet/wet differential pressure sensor which provides a 4-20mA signal and scaled pulse output and large LCD display.

Saturated steam all metal flow meters are used in the power generation industry. The flow meters are inverted in the piping system to protect the indicator from excessive heat and condensation that can form on the crystal.

An integrated construction using a wet/wet DP sensor protected by a stainless-steel diaphragm which provide a 4-20mA output signal.

Our general purpose flow switches (liquid) reed switches make or break contacts by detecting the position of a magnet permanently attached to the lever mechanism on the flow indicator. Our reed switches can also be ordered for use in hazardous locations (Option IS), when fitted with LED`s (Option LED) it provides viewing at a glance and easy field calibration.

The 2 wire transmitter (liquid) W2 option includes a mechanical analog indicator with a wet/wet differential pressure sensor mounted on top sensing the differential pressure directly and providing a loop powered 4-20mA signal proportional to flow squared (r2). Requires square root extraction. 24Vdc power supply not included (Option PS-24).

The digital display is a 2 wire loop powered flow meter for liquids with a built in wet/wet differential pressure sensor protected by an isolated stainless steel diaphragm which provides a 4-20mA dc signal proportional to flow rate squared. A scaled pulse output according to accumulated total. The digital display requires a 24Vdc power supply not included (PS-24 Option). Optional backlighting (green & amber) for low light conditions.
