For the installation a core hole drilling or a recess through the wall of the tank is necessary. The sealing between the concrete wall and mixing rod is effected by the link seal (rigid installation) or a rubber sleeve special sealing (hydraulically adjustable installation). For the fixation of the mixer rod, when installed rigidly, supports are used inside and outside of the tank. A special designed mounting plate provides the fixation of the mixing rod when installed hydraulically adjustable. The installation is retrofittable at any time.

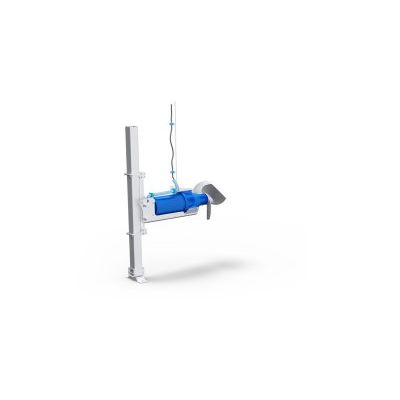

The submersion of the ORKA is adjustable individually but the maximum depth is 10m. Due to the slim design and the aerodynamic construction the mixing performance is very high. The three bladed propeller turns with 370 rpm in booth directions (mixer can push and pull). The installation is retrofittable at any time.
