Reliable Scale Corporation products

Compatible with most makes and models of strain gage load cells and transducers. Report Function includes individual, total, average, minimum and maximum weights. lb/kg switch on keypad. 1″, six digit LCD display is easy to read. Large, easy to use keypad with simple menus.
“Motion” light used to indicate movement on the scale. Automatic “Zero tracking”. Ruggedly built and designed for agricultural and industrial applications. “Hold” feature takes multiple readings then averages for accurate weights. No confusing calibration procedures are necessary.

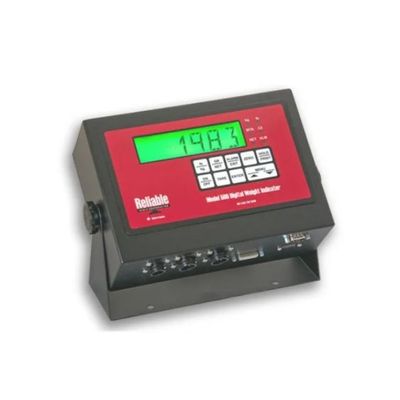

Features of Model 500LG Digital Weight Indicator; Compatible with most makes and models of strain gage load cells and transducers. Report Function includes individual, total, average, minimum and maximum weights. lb/kg switch on keypad. 1″, six digit LCD display is easy to read. Large, easy to use keypad with simple menus. “Motion” light used to indicate movement on the scale. Automatic “Zero tracking”. Ruggedly built and designed for agricultural and industrial applications. “Hold” feature takes multiple readings then averages for accurate weights. No confusing calibration procedures are necessary. Weight : 3 lbs. Dimensions : 13 × 11.25 × 5.75 in.

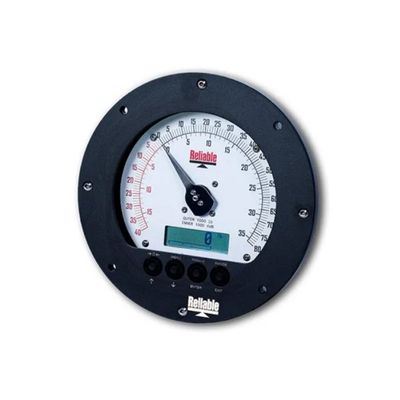

Features of DD Series Wireline Weight Indicator / Drilling Rig Weight Indicator; Resolution, sensitivity, and increments are user programmable. Selectable mV (Load Cell) or mA (4-20mA Current Loop) signal input. Field adjustable calibration. High speed sampling for rapid response to weight changes. Optional Quadrature Encoder interface for depth and speed measurement. Optional analog output (4-20mA or 0-5VDC) tracks the digital display. RS-232 port (optional 2nd RS-232) for computer interfacing, data-logging or remote display. Dial Face with custom ranges available.

Resolution, sensitivity, and increments are user programmable. Low profile indicator uses minimal “dashboard” space. Responsive analog output (4-20mA or 0-5VDC) tracks the digital display. Output Ports provide multiple alarms for equipment shutdowns. Real time clock provides time and date with weight for computer interface. Field programmable for use with most strain gage load cells and transducers. High speed sampling for quick and accurate response to weight changes. Over/High/Low alarm outputs for system overload protection.
