REMBE Kersting GmbH products
Measuring

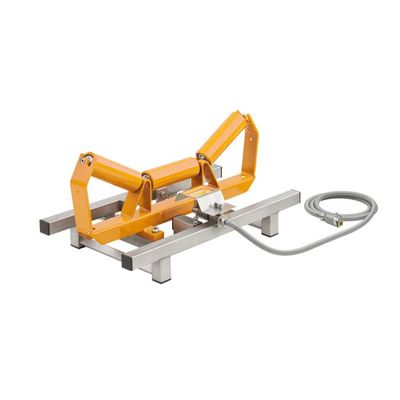

REMBE - Model UNIBAND - Stainless-steel belt scale
The UNIBAND® is a stainless steel conveyor belt scale specifically designed for weighing continuous material flows. Its easy integration into existing conveyor systems allows for cost-effective performance and consumption measurement of various bulk materials. Thanks to its low profile, the UNIBAND® can be seamlessly integrated into any conveyor belt for mass measurement. It optimizes processes with precise measurements in a wide range of industrial sectors, including mining, agriculture, food, chemical, and more. The easy integration of the UNIBAND® into existing belt structures is facilitated by its low profile, with dimensions that can be customized. The device is made entirely of stainless steel, making it ideal for operation in harsh process environments. The UNIBAND® is designed for self-adjustment and requires minimal maintenance as it has no rotating bearings, resulting in minimal wear. Its robustness and corrosion resistance are ensured by the mounted fully encapsulated and laser-welded bending beam load cell. Additionally, the UNIBAND® is suitable for use in potentially explosive areas.
REMBE - Model VASOMETER - Flow Metering System
Measure powders and bulk materials easily and cleanly. The innovative measurement system for the flow of free-falling bulk materials is an optimal solution for controlling process parameters in hygienically demanding environments. With its dead-space-free stainless steel housing and sensors positioned outside the measuring chamber, the device can be easily cleaned and sterilized. The system is designed to be non-removable, contributing to the efficiency of the plant. The system's design is hygienically engineered, with its dead-space-free stainless-steel housing and sensors positioned outside the measuring chamber. Additionally, the design ensures short downtime as there is no need to open or remove the measuring device for cleaning. Thanks to in-process calibration, the system can be validated without the need for removal, ensuring high availability of the plant. The system is low maintenance as it does not contain any moving parts and can be easily retrofitted into existing installations. Furthermore, it is suitable for use in potentially explosive atmospheres.Weighing
REMBE - Model L-Cell - Strain Gauge
The L-Cell is optimally suited for retrofitting to existing silos; for a reproducible mass measurement whenever the classical level measurement does not achieve the desired result. The measuring cells are used to record the mass of bulk materials and liquids in frame silos. The measuring cells have a particular advantage over level measurements at the top of the silo when core flow occurs in the silo, i.e., the bulk material is only in motion in the area above the discharge opening. The result is bridge or chimney formation. The L-Cell reliably captures the weight. Furthermore, the L-Cell is a cost-optimized solution, as the assembly is carried out with fastening screws directly on the existing strut construction of the silo. The plant does not have to be emptied or rebuilt for this.
REMBE - Model MicroCell - Strain Gauge
The MicroCell is optimal for retrofitting to existing silos; for a reproducible mass measurement whenever the classical level measurement does not produce the desired result. The measuring cells are used to detect the mass of bulk goods and liquids in column silos. The measuring cells have a particular advantage over level measurements at the top of the silo when core flow occurs in the silo, i.e., the bulk material is only in motion in the area above the discharge opening. Bridge or chimney formation is the result. The MicroCell reliably captures the weight. Furthermore, the MicroCell is a cost-optimized solution, as the mounting is done with fastening screws directly on the existing strut construction of the silo. The plant does not have to be emptied or rebuilt for this.
Sampling
