33 products found
Renishaw plc Products
-
Precision Measurement And Process Control - CMM Probes, Software and Retrofits - Hardware - 5-Axis Systems
A REVO system delivers high performance scanning, non-contact inspection and surface finish analysis on a single CMM.
-
Revo - Model RSP2 - Scanning Probe
RSP2 is a dedicated lightweight probe for use on REVO systems, capable of 2D-scanning (x, y) and 3D touch-trigger measurement (x, y, z). The RSP2 has a universal body to which a number of different length stylus holders, with a minimum reach of 175 mm and a maximum reach of 500 mm, can be ...
-
Revoi - Model RSP3 - 3D Scanning Probes
RSP3 complements the RSP2 probe, providing the REVO system with 3D-scanning (x,y,z) and crank stylus capabilities. It is used for 3-axis scanning, such as with a fixed REVO head angle during measurement. The RSP3 range of probes allow different lengths of stylus to be used whilst maintaining optimum metrology ...Revo - Model SFP2 - Surface Finish Probe
The REVO SFP2 makes surface finish inspection an integral part of your CMM measurement ...

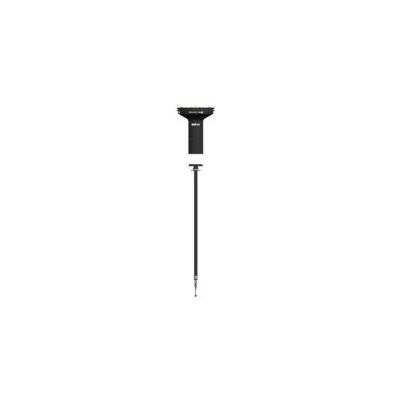

Revo - Model RSP3 - 6 Extended Reach Scanning Probe
The RSP3-6 probe provides enhanced capability for accessing and inspecting features deep within bores by combining long extensions with REVO's 5-axis movements. This makes it ideal for inspecting large parts, such as engine blocks, for heavy machinery in the construction, mining, automotive and defence ...
Precision Measurement And Process Control - CMM Probes, Software and Retrofits - Hardware - 3-Axis Systems- Touch-Trigger Probes
Renishaw provides a comprehensive range of systems to meet the application needs and budget constraints of all users, from simple feature checks on manually operated CMMs, to complex part measurement on high-speed computer controlled machines.
Renishaw - Model TP20 - Compact Module Changing Touch-Trigger Probe
Compact module changing touch-trigger probe, which allows the use of a range of stylus configurations and extensions to access features on complex ...
Renishaw - Model TP200 - Module-Changing Probe
A compact, module-changing probe that uses strain-gauge mechanisms for higher accuracy and longer life than kinematic touch-trigger ...
Renishaw - Model TP6 and TP6A - Robust Kinematic Probes
The TP6 and TP6A probes have different probe mount options (M8 thread and autojoint respectively). Both probes are kinematic touch-trigger probes and have manually adjustable trigger force for optimum probe performance with different stylus configurations. They can carry long styli (M3 range), are 25 mm (1 in) in diameter, providing substantial overtravel for excellent ...
Renishaw - Model TP7M - Strain-Gauge Touch Probe
25 mm (1 inch) diameter strain-gauge touch probe with autojoint mounting, suited to high accuracy part measurement. The TP7M probe is an electronic probe using strain gauge technology, which gives higher accuracy, eliminates lobing and reseat errors and offers a much longer life than kinematic touch-trigger probes. Incorporating a multi-wired autojoint connection, the TP7M is compatible with the PH10M PLUS / PH10MQ ...
Precision Measurement And Process Control - CMM Probes, Software and Retrofits - Hardware - 3-Axis Systems- Scanning Probes
Scanning probes can acquire several hundred surface points each second, enabling measurement of form as well as size and position.
Renishaw - Model SP25M - Scanning and Touch-Trigger Modules
At only 25 mm in diameter, and with a range of scanning and touch-trigger modules, the SP25M is the world's most compact and versatile scanning probe system. The SP25M comprises two sensors in a single housing. Users can switch between a choice of five scanning modules (which can carry M3 styli with lengths from 20 mm to 400 mm) and an adaptor module that is compatible with Renishaw's TP20 range of probe modules. ...
Renishaw - Model SP600 - Analogue Scanning Probes
Renishaw's SP600 family of analogue scanning probes offers high-performance inspection, digitising and profile scanning capability for a wide range of CMMs. There are three, highly versatile, SP600 scanning probe systems. Each system includes the probe itself, a PC interface card and a stylus module changing ...
Raman Spectroscopy
inVia - Raman Microscope
It is simple to operate yet delivers outstanding performance and reliable results, for even the most challenging experiments. You can produce both rich, detailed, chemical images and highly specific data from discrete points. With unparalleled flexibility, scientists and engineers, worldwide, trust ...
Combined/hybrid Raman Systems
Increase the analytical power of your inVia by coupling it to other analytical systems from a wide range of manufacturers. For maximum efficiency, you can analyse your sample with two or more techniques without having to transfer it between instruments. With Renishaw's correlative microscopy systems you can be confident that you are analysing the same point with both ...Model RA100 - Raman Analyser
With Renishaw's RA100 Raman Analyser you can make remote Raman measurements in your laboratory, out in the field, or on a production line. It provides higher spectral performance than more basic handheld Raman systems and is small enough to transport to the sample or specimen site. With a range of fibre probe options you can view your sample, select the analysis region of interest and collect data, at whatever magnification you ...
Model RA800 Series - Benchtop Raman System
The RA800 is a flexible high performance instrument platform. Renishaw can configure it to provide tailored chemical and materials analysis solutions across a range of application ...
Equator - Gauging System
The Equator gauging system enables process control by delivering highly repeatable, thermally insensitive, versatile and reprogrammable gauging to the shop ...Spatial Laser Measurement
Model C-ALS - Borehole Deployable Laser Scanner
C-ALS (Cavity Auto-scanning Laser System) is a unique specialist underground laser cavity monitoring system that enables mapping of previously inaccessible parts of mines, safely and ...
Optical Encoders
ATOM - Optical Encoder
ATOM is Renishaw's miniature non-contact optical incremental linear and rotary encoder system. Its innovative design combines miniaturisation with leading-edge signal stability, dirt immunity and reliability. This combination is unique in the market place and represents a significant advance in the performance and reliability of miniature encoders. ATOM systems are simple to install with integrated LED for signal integrity indication. A range of ...
TONiC - Optical Encoder
TONiC is Renishaw's super-compact, non-contact incremental encoder system that offers speeds up to 10 m/s and, when combined with the Ti interface, resolutions down to 1 nm for both linear and rotary applications. TONiC systems are quick and simple to install with wide set-up tolerances and calibration at the push of a button. TONiC's dynamic signal processing gives improved signal stability with ultra-low Sub-Divisional Error of typically -10 Torr ...
Calibration Hardware
Renishaw - Model XM-60 - Multi-Axis Calibrator
Measure six degrees of freedom in any orientation from a single set-up. Unique technology, optical roll measurement and fibre optic launch. XM-60 is a laser measurement system capable of measuring errors in six degrees of freedom along a linear axis, simultaneously from a single set-up. It provides a powerful diagnostic tool measuring all geometric errors in the axis from a single capture. For users of volumetric ...
Renishaw - Model XL-80 - Laser Interferometer
The Renishaw XL-80 laser interferometer offers the ultimate in high performance measurement and calibration for motion systems, including CMMs and machine ...
Renishaw - Model XR20-W - Rotary Axis Calibrator
Rotary axes are increasingly common on machine tools and their accuracy is vitally important to overall machine accuracy. XR20-W allows the measurement of rotary axis positional accuracy to within ±1 arc second. Totally wireless operation and modular mounting systems ensure suitability for a wide range of machines. Optional software allows operation 'off-axis', essential for many 5 axis ...
Renishaw - Model QC20-W - Ballbar System
Renishaw ballbars have been dominant in the market for nearly 20 years and that leadership continues today with the QC20-W wireless ballbar ...
Renishaw - Model XC-80 - Compensator and Sensors
An environmental compensator which significantly improves the measurement accuracy of the XL-80 system. The XC-80 compensator is a crucial factor in your XL system's linear measurement accuracy. Changes in air temperature pressure and relative humidity can affect the wavelength of the laser light and the measurement readings taken. XC-80 features “intelligent sensors” that process the readings at source, the compensator ...
PH10 PLUS Motorised Indexing Heads
Model PH10M PLUS - Motorised Indexing Head
The PH10M PLUS can carry long extension bars and complex probes such as SP25M or TP7M. The highly repeatable autojoint allows rapid probe or extension bar changing without the need for ...
Model PH10MQ PLUS - Motorised Indexing Head
The PH10MQ PLUS is a variant of the PH10M PLUS that allows the motorised head to be attached directly to the quill with the B-axis of the head inside the quill itself. This option provides a neater and shorter probe mount, with only the A-axis protruding from the ...
Model PH10T PLUS - Motorised Indexing Head
The PH10T PLUS is similar to the PH10M PLUS, except that it features an M8 thread probe mount in place of the autojoint. All M8 threaded probes, such as TP20 and TP200, and extension bars fit directly onto the head. The PH10T PLUS is fully compatible with all of Renishaw's stylus and module change ...
Metal Additive Manufacturing (3D Printing) Systems
Model RenAM 500M - Metal Additive Manufacturing System
The RenAM 500M is a laser powder bed fusion additive manufacturing system designed specifically for the production of metal components on the factory floor. It features automated powder and waste handling systems that enable consistent process quality, reduce operator touch times and ensure high standards of system safety. The system build volume is 250 mm × 250 mm × 350 mm. The RenAM 500M is built using a Renishaw in house ...

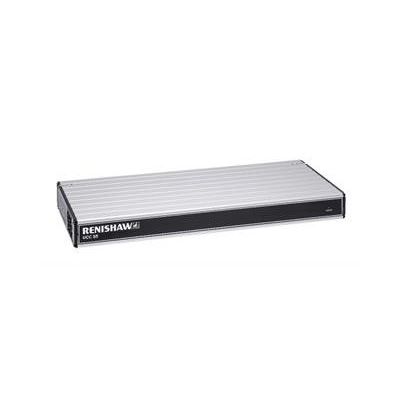

Model UCC S5 - 5-Axis Scanning Motion and Head Controller
5-axis scanning motion and head controller supporting the second generation REVO-2 measurement ...
Linear Incremental Encoders
Renishaw - Model RGH41 - Incremental Encoder System with RGS Linear Scale
The RGH41 readhead offers all the benefits of the market proven RG4 linear encoder system - generous installation tolerances and high-speed, non-contact performance with filtering optics to guarantee reliable performance over light oils, dust and ...
Renishaw - Model OTS - Compact 3D Touch-Trigger Tool Setter
For tool measuring and broken tool detection on small to medium machining centres. 3D touch-trigger: Compact 3D touch-trigger tool setter with optical signal transmission used for broken tool detection and rapid measurement of tool length and diameter on a wide range of tools. Compatible with Renishaw optical modulated ...
RESOLUTE - Model FS - Absolute Open Optical Encoder System
RESOLUTE FS is a true absolute open optical encoder system certified to the following functional safety ...
RESOLUTE - Model encoder series - Absolute Fine Pitch Optical Encoder System
RESOLUTE is a true-absolute, fine pitch optical encoder system that has excellent dirt immunity, and an impressive specification that breaks new ground in position feedback. It is the world's first absolute encoder capable of 1 nm resolution up to 100 m/s for linear systems, and 32-bit resolution up to 36 000 rev/min for rotary systems. Ultra low Sub-Divisional Error and jitter result in a linear encoder system that outperforms any other encoder ...
Renishaw - Model RMP600 - High-Accuracy Touch Probe
The RMP600 is a compact, high-accuracy touch probe with radio signal transmission which offers all the benefits of automated job set-up as well as the ability to measure complex 3D part geometries on all sizes of machining centres, including multi-tasking machines. The RMP600 successfully combines patented strain gauge technology with the unique frequency hopping radio transmission system of the ...
